Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
672D127H050DT2CCAP ALUM 120UF 60V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 120 µF | - | 60 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.346" (34.20mm) | - | Through Hole | |
|
|
672D277F040DT2DCAP ALUM 270UF 40V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 270 µF | -10%, +50% | 40 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.346" (34.20mm) | - | Through Hole | |
|
|
672D337F025DT4DCAP ALUM 330UF 25V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 330 µF | -10%, +50% | 25 V | 290mOhm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 1.225 A @ 120 Hz | 1.75 A @ 100 kHz | 100 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.346" (34.20mm) | - | Through Hole | |
|
|
672D337H025DT2CCAP ALUM 330UF 25V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 330 µF | - | 25 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.346" (34.20mm) | - | Through Hole | |
|
|
672D337H025DT3CCAP ALUM 330UF 25V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 330 µF | - | 25 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.346" (34.20mm) | - | Through Hole | |
|
400USC470MEFCSN30X45CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.51 A @ 120 Hz | 3.514 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
475MXT220MEFCSN22X35CAP ALUM 220UF 20% 475V SNAP TH |
0 |
|
Datasheet |
MXT | Bulk | Active | 220 µF | ±20% | 475 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.708 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1V392MESBCKCAP ALUM 3900UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3900 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LSG152M2E---3550SCAP ALUM 250V POLAR |
0 |
|
- |
LSG | Active | 1.5 mF | ±20% | 250 V | 133mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.18 A @ 120 Hz | 4.77 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|

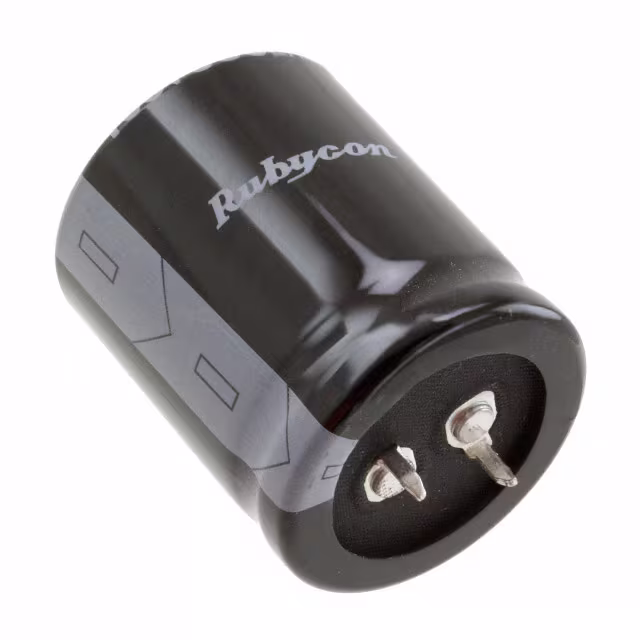

400HXG330MEFCSN30X35CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.31 A @ 120 Hz | 3.234 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
B43643B5337M057CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43643 | Bulk | Active | 330 µF | ±20% | 450 V | 330mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.51 A @ 100 Hz | - | 510 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALC40A682BD040CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 6.8 mF | ±20% | 40 V | 123mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.61 A @ 100 Hz | 2.92 A @ 10 kHz | 102 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEG220KL4270QE4CAP ALUM 2700UF 40V AXIAL TH |
0 |
|
Datasheet |
PEG220 | Bulk | Active | 2700 µF | -10%, +30% | 40 V | 39mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 7.245 A @ 100 Hz | 20.7 A @ 5 kHz | - | - | 0.795" Dia x 1.681" L (20.20mm x 42.70mm) | - | - | Through Hole | |
|
450USC330MEFCSN35X35CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 330 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.01 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1K222MESBCKCAP ALUM 2200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2200 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
220USG470MEFC22X30CAP ALUM 470UF 20% 220V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 470 µF | ±20% | 220 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.99 A @ 120 Hz | 2.985 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALF20C271DC400CAP ALUM 270UF 20% 400V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 270 µF | ±20% | 400 V | 547mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.61 A @ 100 Hz | 2.88 A @ 10 kHz | 376 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
380LQ331M450J052CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 330 µF | ±20% | 450 V | 600mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.81 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

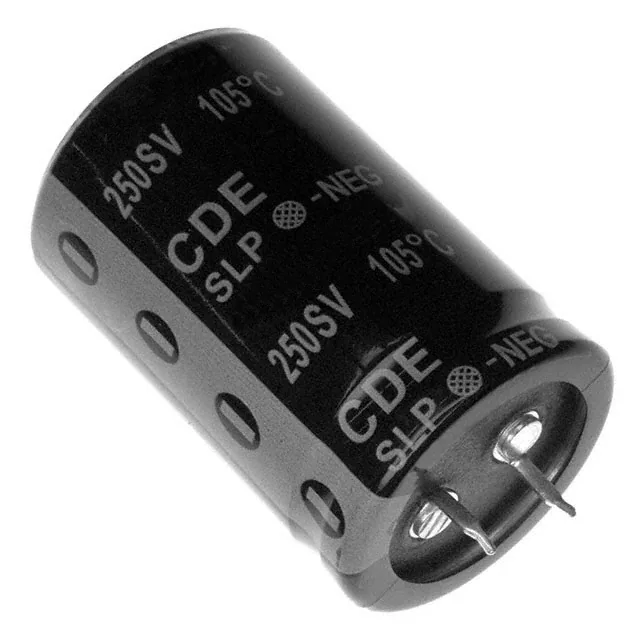

SLP152M180E4P3CAP ALUM 1500UF 20% 180V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 1500 µF | ±20% | 180 V | 133mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
SLPX122M250H7P3CAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 1200 µF | ±20% | 250 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.84 A @ 120 Hz | 5.64 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole |
