Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL215819561E3CAP ALUM 560UF 20% 100V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 560 µF | ±20% | 100 V | 461mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 100 Hz | - | 412 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215852821E3CAP ALUM 820UF 20% 80V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 820 µF | ±20% | 80 V | 422mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 100 Hz | - | 397 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL215859561E3CAP ALUM 560UF 20% 100V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 560 µF | ±20% | 100 V | 461mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 100 Hz | - | 412 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UVR2A332MRDCAP ALUM 3300UF 20% 100V RADIAL |
0 |
|
Datasheet |
UVR | Tray | Obsolete | 3300 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.335 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80A561CD250CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 560 µF | ±20% | 250 V | 310.8mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.28 A @ 100 Hz | 5.43 A @ 10 kHz | 182 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
678D107M063DG3OCAP ALUM 100UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 100 µF | ±20% | 63 V | 450mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 504 mA @ 120 Hz | 720 mA @ 100 kHz | 90 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole | |
|
B43544C6187M000CAP ALUM 180UF 20% 500V SNAP TH |
0 |
|
Datasheet |
B43544 | Tray | Active | 180 µF | ±20% | 500 V | 460mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | - | 690 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
338LBB100M2CHCAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 3300 µF | ±20% | 100 V | 75.36mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.06 A @ 120 Hz | 5.075 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
PEG220ML3900QE1CAP ALUM AXL 150C |
0 |
|
Datasheet |
PEG | Box | Active | 900 µF | -10%, +30% | 63 V | 74mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.205 A @ 100 Hz | 6.3 A @ 5 kHz | - | - | 0.795" Dia x 1.681" L (20.20mm x 42.70mm) | - | - | Through Hole | |
|
|
ALC80A302EB100CAP ALUM 3000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3000 µF | ±20% | 100 V | 111mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.66 A @ 100 Hz | 5.88 A @ 10 kHz | 94 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80C302EB100CAP ALUM 3000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3000 µF | ±20% | 100 V | 111mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.66 A @ 100 Hz | 5.88 A @ 10 kHz | 94 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80D302EB100CAP ALUM 3000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3000 µF | ±20% | 100 V | 111mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.66 A @ 100 Hz | 5.88 A @ 10 kHz | 94 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80E302EB100CAP ALUM 3000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3000 µF | ±20% | 100 V | 111mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.66 A @ 100 Hz | 5.88 A @ 10 kHz | 94 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80F302EB100CAP ALUM 3000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3000 µF | ±20% | 100 V | 111mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.66 A @ 100 Hz | 5.88 A @ 10 kHz | 94 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL225645333E3CAP ALUM 33000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
256 PMG-SI | Bulk | Active | 33000 µF | ±20% | 16 V | 20mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.48 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX102M250A042CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 1000 µF | ±20% | 250 V | 199mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 4.6 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF20C221DC450CAP ALUM 220UF 20% 450V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 220 µF | ±20% | 450 V | 559mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.56 A @ 100 Hz | 2.89 A @ 10 kHz | 379 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|

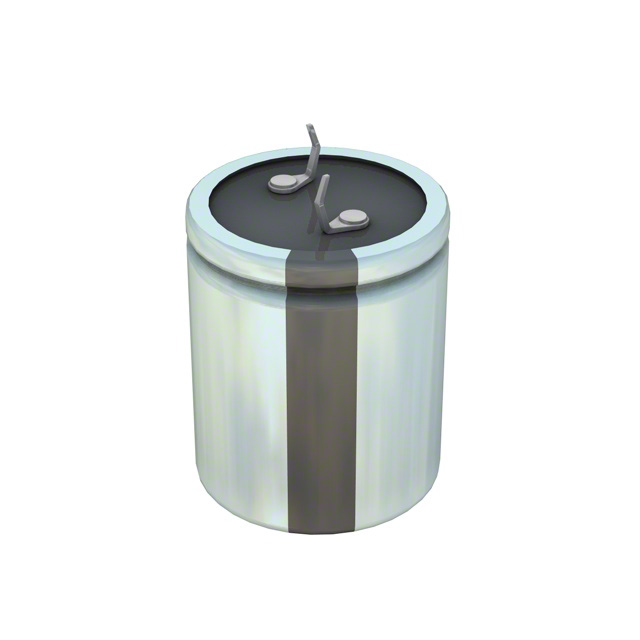

LPX391M250C3P3CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LPX | Bulk | Active | 390 µF | ±20% | 250 V | 510mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 1.98 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
100MXC3300MEFC35X35CAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 3300 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEH506SBE3470M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 470 µF | ±20% | 250 V | 250mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 100 Hz | 8 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
