Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43644B5277M082CAP ALUM 450V POLAR |
0 |
|
Datasheet |
B43644 | Bulk | Active | 270 µF | ±20% | 450 V | 370mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 100 Hz | - | 570 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.465" (37.20mm) | - | Through Hole | |
|
|
B43644C5277M080CAP ALUM 450V POLAR |
0 |
|
Datasheet |
B43644 | Bulk | Active | 270 µF | ±20% | 450 V | 380mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 100 Hz | - | 580 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.268" (32.20mm) | - | Through Hole | |
|
|
ALV70D470CB750CAP ALUM 85C 47UF 750VDC |
0 |
|
Datasheet |
ALV70 | Tray | Active | 47 µF | ±20% | 750 V | 11.507Ohm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 520 mA @ 100 Hz | 630 mA @ 10 kHz | 10.685 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX391M400A032CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 390 µF | ±20% | 400 V | 470mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ELH688M080AS6AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 6.8 mF | ±20% | 80 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.15 A @ 120 Hz | 5.974 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL215923221E3CAP ALUM 220UF 20% 250V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 220 µF | ±20% | 250 V | 1.08Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | - | 700 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215953221E3CAP ALUM 220UF 20% 250V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 220 µF | ±20% | 250 V | 1.08Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | - | 700 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL215973221E3CAP ALUM 220UF 20% 250V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 220 µF | ±20% | 250 V | 1.08Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | - | 700 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL225969121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
259 PHM-SI | Bulk | Active | 120 µF | ±20% | 500 V | 1.09Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 1.65 A @ 10 kHz | 810 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL225919121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 120 µF | ±20% | 500 V | 1.14Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 100 Hz | 1.635 A @ 10 kHz | 850 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL225939121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 120 µF | ±20% | 500 V | 1.11Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 100 Hz | 1.635 A @ 10 kHz | 830 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225959121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 120 µF | ±20% | 500 V | 1.14Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 100 Hz | 1.635 A @ 10 kHz | 850 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL225929121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
259 PHM-SI | Box | Active | 120 µF | ±20% | 500 V | 1.09Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 1.65 A @ 10 kHz | 810 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL225979121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 120 µF | ±20% | 500 V | 1.11Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 100 Hz | 1.635 A @ 10 kHz | 830 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELXS181VSN222MA45SCAP ALUM 2200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 2200 µF | ±20% | 180 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.32 A @ 120 Hz | 6.48 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
LKX2W221MESB40CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC70F103CF063CAP ALUM 10000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 10000 µF | ±20% | 63 V | 40mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.85 A @ 100 Hz | 9.4 A @ 10 kHz | 30 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

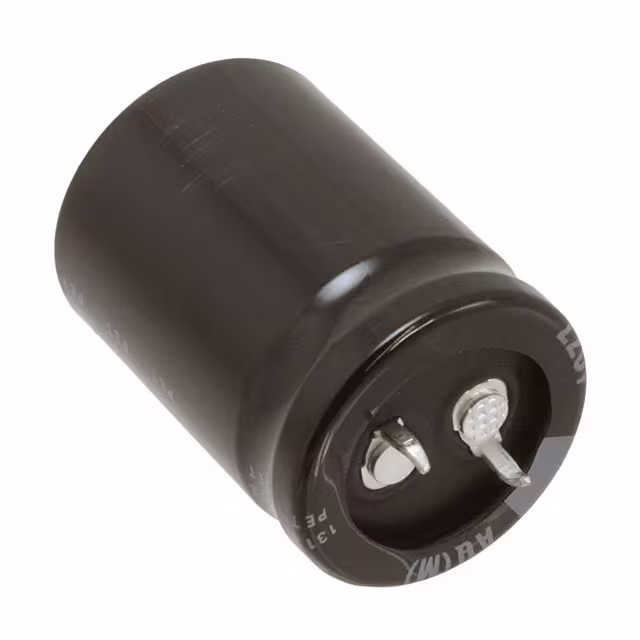

LAQ2G151MELA35CAP ALUM 150UF 20% 400V SNAP TH |
10 |
|
Datasheet |
LAQ | Bulk | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 977.5 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
SLP682M080H4P3CAP ALUM 6800UF 20% 80V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 6800 µF | ±20% | 80 V | 49mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.88 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
SLPX103M080H9P3CAP ALUM 10000UF 20% 80V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 10000 µF | ±20% | 80 V | 33mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.63 A @ 120 Hz | 8.29 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole |
