Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
510DX397M016CG5DHSCAP ALUM 390UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 390 µF | ±20% | 16 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|
|
511D227M050EK4HCAP ALUM 220UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 220 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.032" (26.20mm) | - | Through Hole | |
|
672D226F150DT5DCAP ALUM 22UF 150V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 22 µF | -10%, +50% | 150 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.417" (36.00mm) | - | Through Hole | |
|
678D107M063DG4DCAP ALUM 100UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 100 µF | ±20% | 63 V | 450mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 504 mA @ 120 Hz | 720 mA @ 100 kHz | 90 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
678D277M035DG4DCAP ALUM 270UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 270 µF | ±20% | 35 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
678D397M025DG4DCAP ALUM 390UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 390 µF | ±20% | 25 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|

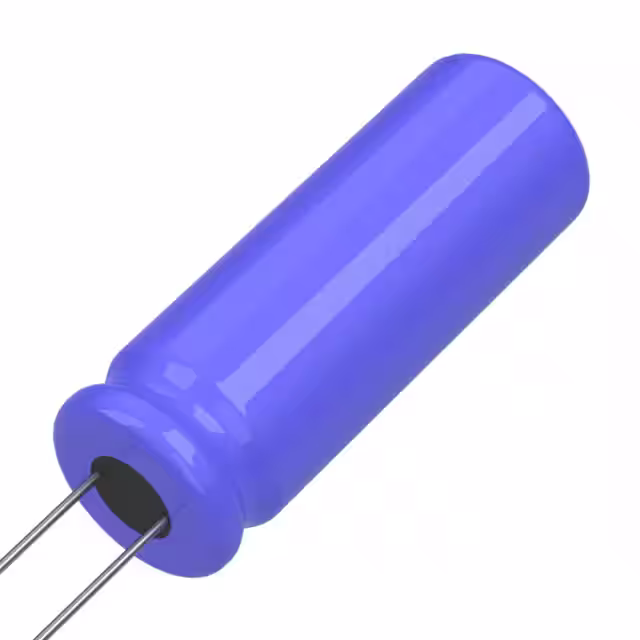

678D397M040DT5DCAP ALUM 390UF 20% 40V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 390 µF | ±20% | 40 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.417" (36.00mm) | - | Through Hole | |
|
|
757D128M016DG3DCAP ALUM 1200UF 20% 16V RADIAL |
0 |
|
Datasheet |
757D | Bulk | Active | 1200 µF | ±20% | 16 V | 145mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.26 A @ 120 Hz | 1.81 A @ 40 kHz | 49 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole | |
|
MAL219357151E3CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
193 PUR-SI | Box | Active | 150 µF | ±20% | 450 V | 490mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 100 Hz | 1.77 A @ 10 kHz | 270 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL219327151E3CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
- |
193 PUR-SI | Box | Active | 150 µF | ±20% | 450 V | 500mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 100 Hz | 1.755 A @ 10 kHz | 280 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL219317151E3CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
- |
193 PUR-SI | Box | Active | 150 µF | ±20% | 450 V | 490mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.18 A @ 100 Hz | 1.77 A @ 10 kHz | 270 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL219367151E3CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
193 PUR-SI | Box | Active | 150 µF | ±20% | 450 V | 500mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 100 Hz | 1.755 A @ 10 kHz | 280 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKG1E562MESCCKCAP ALUM 5600UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 5600 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
100MXC3300MEFC30X45CAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 3300 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
250VXH1000MEFC35X35CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 1000 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.38 A @ 120 Hz | 3.57 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
381LQ103M063K452CAP ALUM 10000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 10000 µF | ±20% | 63 V | 33mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 5.06 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL225776271E3CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 270 µF | ±20% | 400 V | 670mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.64 A @ 100 Hz | 2.296 A @ 10 kHz | 550 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL225779151E3CAP ALUM 150UF 20% 500V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 150 µF | ±20% | 500 V | 1.41Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.23 A @ 100 Hz | 1.722 A @ 10 kHz | 1.23 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL225746271E3CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 270 µF | ±20% | 400 V | 670mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.64 A @ 100 Hz | 2.296 A @ 10 kHz | 550 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL225736271E3CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 270 µF | ±20% | 400 V | 700mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.59 A @ 100 Hz | 2.226 A @ 10 kHz | 580 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole |
