Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E82D501VND561MA65UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
B43642C9397M000CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 390 µF | ±20% | 400 V | 260mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.82 A @ 100 Hz | - | 380 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX391M400A042CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 390 µF | ±20% | 400 V | 510mOhm | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LX271M400K452CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 270 µF | ±20% | 400 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

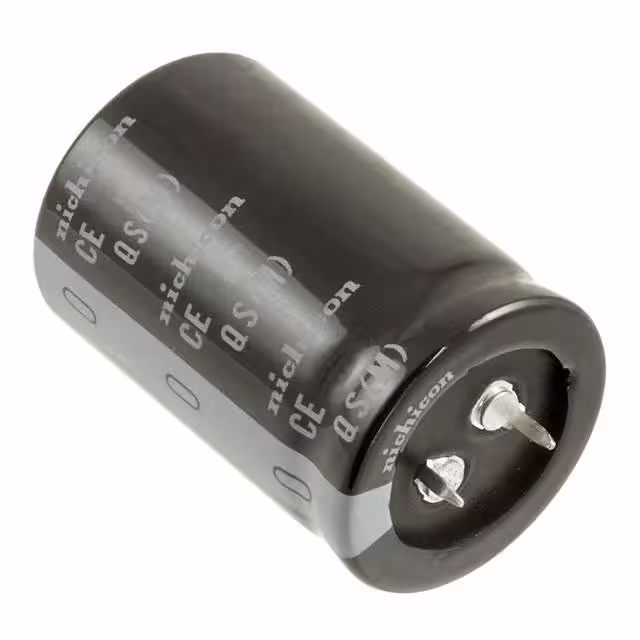

LQS2V561MELB45CAP ALUM 560UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LQS | Bulk | Active | 560 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.145 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
SLP331M450E9P3CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 330 µF | ±20% | 450 V | 1.005Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.13 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LQ823M016A052CAP ALUM 82000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 82000 µF | ±20% | 16 V | 20mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.49 A @ 120 Hz | 10.91 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALV70A620CC750CAP ALUM 85C 62UF 750VDC |
0 |
|
Datasheet |
ALV70 | Tray | Active | 62 µF | ±20% | 750 V | 8.724Ohm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 630 mA @ 100 Hz | 760 mA @ 10 kHz | 8.101 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
450VXR220MEFCSN30X50CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 220 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.4 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ELXS251VSN122MR50SCAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 1200 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.04 A @ 120 Hz | 4.56 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
LKS1E103MESYCAP ALUM 10000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 10000 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
PEH536VCF3270M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 270 µF | ±20% | 400 V | 320mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | 9.3 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL215811222E3CAP ALUM 2200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 2200 µF | ±20% | 50 V | 104mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | - | 73 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215851222E3CAP ALUM 2200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 2200 µF | ±20% | 50 V | 104mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | - | 73 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70A331DE500CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ALC70 | Box | Active | 330 µF | ±20% | 500 V | 612mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.12 A @ 100 Hz | 4.49 A @ 10 kHz | 423 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
350MXC220MEFC22X45CAP ALUM 220UF 20% 350V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 220 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | 1.47 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
E82D350VSN473MA63UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ALF20C391DC350CAP ALUM 390UF 20% 350V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 390 µF | ±20% | 350 V | 386mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.82 A @ 100 Hz | 3.07 A @ 10 kHz | 259 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
|
PEH227MKP4110QE4CAP ALUM 1100UF 63V SOLDER LUG |
0 |
|
Datasheet |
PEH227 | Tray | Active | 1100 µF | -10%, +30% | 63 V | 76mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 1.995 A @ 100 Hz | 5.928 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.445" (36.70mm) | - | Through Hole | |
|
SLPX182M220H4P3CAP ALUM 1800UF 20% 220V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 1800 µF | ±20% | 220 V | 111mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.52 A @ 120 Hz | 6.64 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole |
