Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

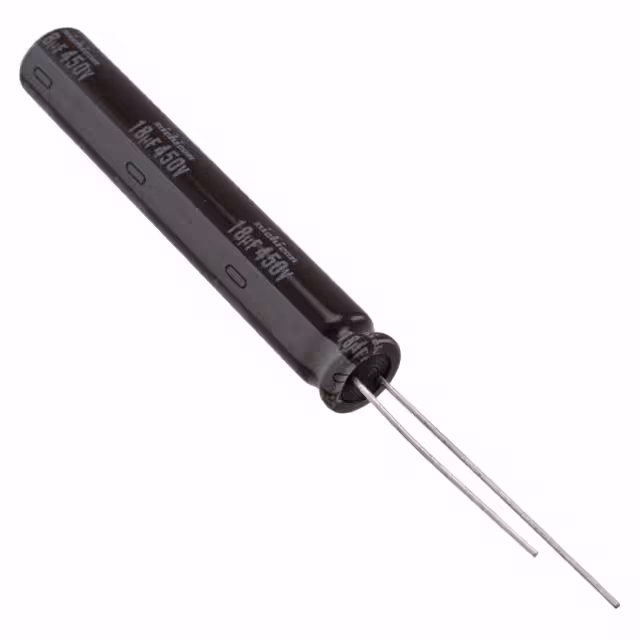

UCS2W180MND9CAP ALUM 18UF 20% 450V RADIAL TH |
0 |
|
Datasheet |
UCS | Bulk | Obsolete | 18 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450VXS270MEFC30X35CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXS | Bulk | Not For New Designs | 270 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.62 A @ 120 Hz | 2.268 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
450VXS220MEFC25X40CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXS | Bulk | Not For New Designs | 220 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 1.988 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF40G181EC450CAP ALUM 180UF 20% 450V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 180 µF | ±20% | 450 V | 538mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.01 A @ 100 Hz | 4.7 A @ 10 kHz | 374 mOhms | 0.984" (25.00mm) | 1.575" Dia (40.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
|
511D107M160ER4DCAP ALUM 100UF 20% 160V RADIAL |
0 |
|
Datasheet |
511D | Bulk | Active | 100 µF | ±20% | 160 V | 1.61Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 504 mA @ 120 Hz | 876 mA @ 40 kHz | 531 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
678D108M016DM5OCAP ALUM 1000UF 20% 16V RADIAL |
0 |
|
Datasheet |
678D | Bulk | Active | 1000 µF | ±20% | 16 V | 130mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1 A @ 100 kHz | 65 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.161" (29.50mm) | - | Through Hole | |
|

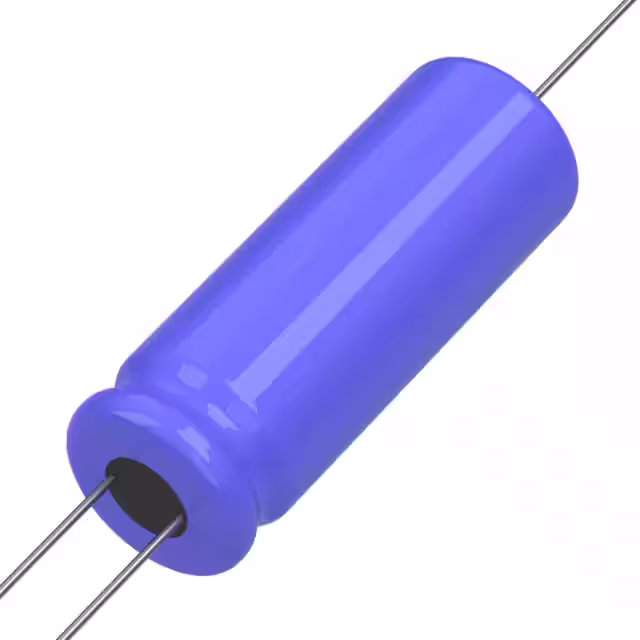

678D108M020DT4JCAP ALUM 1000UF 20% 20V RADIAL |
0 |
|
Datasheet |
678D | Bulk | Active | 1000 µF | ±20% | 20 V | 115mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 546 mA @ 120 Hz | 780 mA @ 100 kHz | 45 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.346" (34.20mm) | - | Through Hole | |
|
LKG1H103MESCBKCAP ALUM 10000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 10000 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 5.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LKG1J392MESCCKCAP ALUM 3900UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3900 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKG2A222MESCAKCAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2200 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALA8DA471CF400CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 470 µF | ±20% | 400 V | 322.4mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.7 A @ 100 Hz | 5.84 A @ 10 kHz | 163 mOhms | - | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALA8DD471CF400CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 470 µF | ±20% | 400 V | 322.4mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.7 A @ 100 Hz | 5.84 A @ 10 kHz | 163 mOhms | - | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALA8DF471CF400CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 470 µF | ±20% | 400 V | 322.4mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.67 A @ 100 Hz | 6.59 A @ 10 kHz | 161.2 mOhms | - | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ESMM101VNN682MA50WCAP ALUM 6800UF 20% 100V SNAP TH |
0 |
|
Datasheet |
SMM | Bulk | Active | 6800 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL212018681E3CAP ALUM 680UF 20% 63V AXIAL TH |
0 |
|
Datasheet |
120 ATC | Bulk | Active | 680 µF | ±20% | 63 V | 55mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 3.72 A @ 10 kHz | 49 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
MAL211844682E3CAP ALUM 6800UF 20% 10V TH |
0 |
|
Datasheet |
118 AHT | Tape & Reel (TR) | Active | 6800 µF | ±20% | 10 V | 100mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 1.73 A @ 100 Hz | - | 100 mOhms | - | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43544F2108M002CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
B43544 | Tray | Active | 1000 µF | ±20% | 250 V | 70mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.11 A @ 100 Hz | - | 100 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43544F2108M007CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
B43544 | Tray | Active | 1000 µF | ±20% | 250 V | 70mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.11 A @ 100 Hz | - | 100 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ELXM401VSN391MA40SCAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 390 µF | ±20% | 400 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.4024 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF70C432DD100CAP ALUM 4300UF 20% 100V PRESS |
0 |
|
Datasheet |
ALF70 | Bulk | Active | 4300 µF | ±20% | 100 V | 66.25mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.63 A @ 100 Hz | 7.3 A @ 10 kHz | 53 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit |
