Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESMH451VNN821MA80SCAP ALUM 820UF 20% 450V SNAP TH |
0 |
|
Datasheet |
SMH | Bulk | Active | 820 µF | ±20% | 450 V | 303mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.86 A @ 120 Hz | 5.5198 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
E82D401VNN102MA80UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
EKHE401VSN431MR30SCAP ALUM 430UF 20% 400V SNAP TH |
0 |
|
Datasheet |
KHE | Bulk | Active | 430 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.63 A @ 120 Hz | 2.1679 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
B43508E2128M000CAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 1200 µF | ±20% | 250 V | 100mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.51 A @ 100 Hz | - | 130 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
678D227M063EK4DSR9CAP ALUM 220UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 220 µF | ±20% | 63 V | 170mOhm @ 20Hz | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 861 mA @ 120 Hz | - | 54 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.032" (26.20mm) | - | Through Hole | |
|
ALA8DF431DD450CAP ALUM 430UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 430 µF | ±20% | 450 V | 323mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.18 A @ 100 Hz | 5.43 A @ 10 kHz | 228 mOhms | - | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43634A5567M007CAP ALUM 560UF 20% 450V SNAP TH |
0 |
|
- |
B43634 | Bulk | Active | 560 µF | ±20% | 450 V | 200mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.23 A @ 100 Hz | - | 300 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
ALS81H133DA040CAP ALUM 13000UF 20% 40V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 13000 µF | ±20% | 40 V | 49mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 8 A @ 100 Hz | 10.4 A @ 10 kHz | 41 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 2.126" (54.00mm) | - | Chassis Mount | |
|
GM2G681MND3545CAP ALUM 680UF 20% 400V SNAP TH |
0 |
|
Datasheet |
GM | Active | 680 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.72 A @ 120 Hz | 3.89 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
ALF20G471EF450CAP ALUM 470UF 20% 450V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 470 µF | ±20% | 450 V | 243mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.08 A @ 100 Hz | 6.25 A @ 10 kHz | 147 mOhms | 0.984" (25.00mm) | 1.575" Dia (40.00mm) | 2.047" (52.00mm) | - | Through Hole, Press-Fit | |
|
|
ALV70D131DE700CAP ALUM 85C 130UF 700VDC |
0 |
|
Datasheet |
ALV70 | Tray | Active | 130 µF | ±20% | 700 V | 4.384Ohm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.04 A @ 100 Hz | 1.25 A @ 10 kHz | 4.085 Ohms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

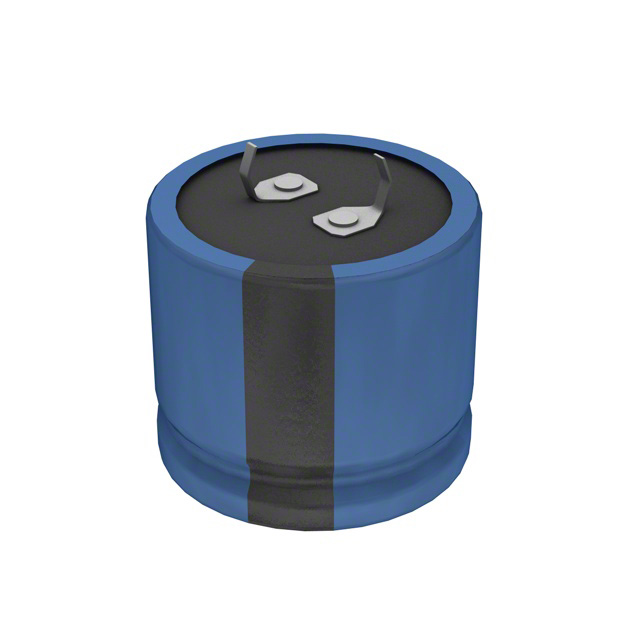

380LX102M200A022CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 1000 µF | ±20% | 200 V | 199mOhm | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
400USC330MEFCSN35X30CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.05 A @ 120 Hz | 2.87 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALF20C153EB040CAP ALUM 15000UF 20% 40V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 15000 µF | ±20% | 40 V | 89mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.42 A @ 100 Hz | 4.51 A @ 10 kHz | 79 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole, Press-Fit | |
|
|
ALV70F101DD750CAP ALUM 85C 100UF 750VDC |
0 |
|
Datasheet |
ALV70 | Tray | Active | 100 µF | ±20% | 750 V | 5.413Ohm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 900 mA @ 100 Hz | 1.09 A @ 10 kHz | 5.026 Ohms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B43643A5567M057CAP ALUM 560UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43643 | Bulk | Active | 560 µF | ±20% | 450 V | 200mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.19 A @ 100 Hz | - | 310 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL212016472E3CAP ALUM 4700UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
120 ATC | Bulk | Active | 4700 µF | ±20% | 25 V | 27mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 4.47 A @ 10 kHz | 29 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
MAL215617103E3CAP ALUM 10000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 10000 µF | ±20% | 40 V | 60mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.02 A @ 100 Hz | - | 38 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL215657103E3CAP ALUM 10000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 10000 µF | ±20% | 40 V | 60mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.02 A @ 100 Hz | - | 38 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALF20C391DH500CAP ALUM 390UF 20% 500V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 390 µF | ±20% | 500 V | 355mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.87 A @ 100 Hz | 4.67 A @ 10 kHz | 258 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.441" (62.00mm) | - | Through Hole, Press-Fit |
