Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLPX821M350H4P3CAP ALUM 820UF 20% 350V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 820 µF | ±20% | 350 V | 243mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.47 A @ 120 Hz | 5.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
E91F501VSN421MR80UCAP ALUM 420UF 20% 500V SNAP TH |
0 |
|
- |
U91F | Bulk | Active | 420 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 3.248" (82.50mm) | - | Through Hole | |
|
|
PEH534RDF4150M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 1.5 mF | ±20% | 200 V | 93mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | 14.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
477LBA400M2EGCAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LBA | Bulk | Active | 470 µF | ±20% | 400 V | 529.11mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.23 A @ 120 Hz | 3.2781 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.831" (46.50mm) | - | Through Hole | |
|
MAL225932152E3CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 1500 µF | ±20% | 200 V | 100mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.58 A @ 100 Hz | 5.37 A @ 10 kHz | 70 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
MAL225972152E3CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 1500 µF | ±20% | 200 V | 100mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.58 A @ 100 Hz | 5.37 A @ 10 kHz | 70 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
160USC680MEFC30X25CAP ALUM 680UF 20% 160V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 680 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.33 A @ 120 Hz | 3.495 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
250USC1800MEFC35X50CAP ALUM 1800UF 20% 250V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 1800 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.54 A @ 120 Hz | 6.81 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL209332152E3CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
093 PMG-SI | Tape & Box (TB) | Active | 1500 µF | ±20% | 200 V | 120mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | - | 90 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL209333821E3CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
093 PMG-SI | Tape & Box (TB) | Active | 820 µF | ±20% | 250 V | 190mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.23 A @ 120 Hz | - | 130 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UVZ2F331MRDCAP ALUM 330UF 20% 315V RADIAL |
19 |
|
Datasheet |
UVZ | Bulk | Obsolete | 330 µF | ±20% | 315 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 1.14 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
385MXC220MEFC35X25CAP ALUM 220UF 20% 385V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 220 µF | ±20% | 385 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.03 A @ 120 Hz | 1.442 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LSG561M2W---4040SCAP ALUM 450V POLAR |
0 |
|
- |
LSG | Active | 560 µF | ±20% | 450 V | 355mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.02 A @ 120 Hz | 2.8886 A @ 10 kHz | - | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
ALF70C221DF630CAP ALUM 220UF 20% 630V PRESS |
0 |
|
Datasheet |
ALF70 | Bulk | Active | 220 µF | ±20% | 630 V | 595mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 100 Hz | 4.58 A @ 10 kHz | 409 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole, Press-Fit | |
|
B41505A6109M002CAP ALUM 10000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
B41505 | Bulk | Active | 10000 µF | ±20% | 50 V | 25mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 100 Hz | - | 26 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
400SXC470MEFCSN35X45CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Not For New Designs | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.87 A @ 120 Hz | 2.1505 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
NR301R102M075FV2ECAP ALUM |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ALF20C123ED063CAP ALUM 12000UF 20% 63V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 12000 µF | ±20% | 63 V | 64mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.42 A @ 100 Hz | 5.55 A @ 10 kHz | 57 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit | |
|

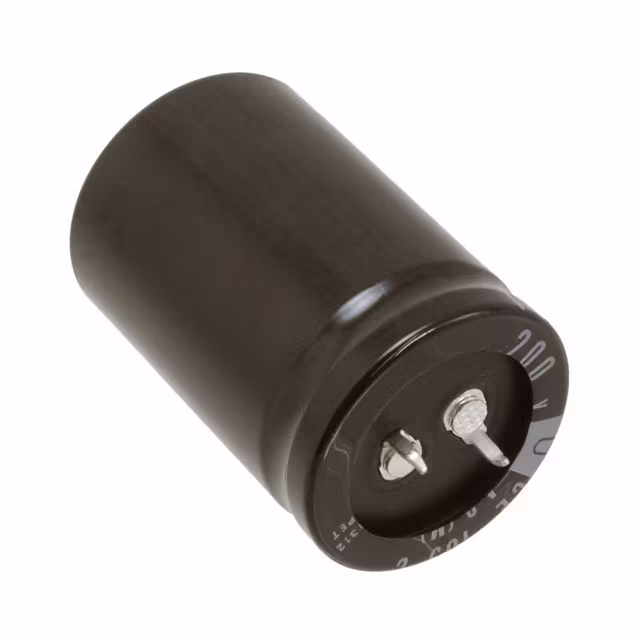

LAQ2G331MELB45CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | 1.6905 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ELXM421VSN471MA50SCAP ALUM 470UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 470 µF | ±20% | 420 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.96 A @ 120 Hz | 2.8028 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole |
