Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCMX532U450DF2BCAP ALUM 5300UF 450V SCREW CHAS |
0 |
|
Datasheet |
DCMX | Bulk | Active | 5300 µF | -10%, +75% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.687" (144.45mm) | - | Chassis Mount | |
|

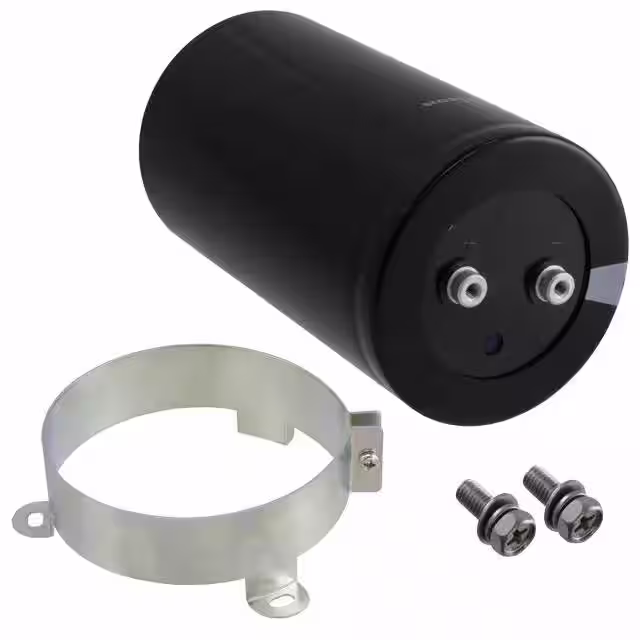

LNY2G123MSEJCAP ALUM 12000UF 20% 400V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 12000 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26 A @ 120 Hz | 36.4 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.102" (155.00mm) | - | Chassis Mount | |
|
|
E36D451CSS153MFM9UCAP ALUM 15MF 20% 450V SCREW |
0 |
|
- |
U36D | Bulk | Active | 15 mF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.504" Dia (89.00mm) | 8.661" (220.00mm) | - | Chassis, Stud Mount | |
|
CGR193T075X5LCAP ALUM 19000UF 75V SCREW CHAS |
0 |
|
Datasheet |
CGR | Bulk | Active | 19000 µF | -10%, +50% | 75 V | 5.6mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 A @ 120 Hz | 34.5 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
|
LNX2H682MSEJBBCAP ALUM 6800UF 20% 350V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 6800 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 18.5 A @ 120 Hz | 25.9 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
|
LNX2H682MSEJBNCAP ALUM 6800UF 20% 350V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 6800 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 18.5 A @ 120 Hz | 25.9 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.811" (173.00mm) | - | Chassis Mount | |
|
|
ALS41A334QT040CAP ALUM SCRW TERM 105C |
0 |
|
Datasheet |
ALS41 | Box | Active | 330 mF | ±20% | 40 V | 4mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 45.6 A @ 100 Hz | 47 A @ 10 kHz | 4 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
500C123T200DG2DCAP ALUM 12000UF 200V SCREW CHAS |
0 |
|
Datasheet |
500C | Bulk | Active | 12000 µF | -10%, +50% | 200 V | - | 5000 Hrs @ 85°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 8.687" (220.65mm) | - | Chassis Mount | |
|
MAL210248472E3CAP ALUM 4700UF 20% 385V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 4700 µF | ±20% | 385 V | 29mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 100 Hz | - | 20 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
|
MAL210287332E3CAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 3300 µF | ±20% | 450 V | 37mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.9 A @ 100 Hz | - | 24 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
|
MAL210288472E3CAP ALUM 4700UF 20% 385V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 4700 µF | ±20% | 385 V | 29mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.3 A @ 100 Hz | - | 20 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
MLP131M400EK0ACAP ALUM 130UF 20% 400V FLATPACK |
0 |
|
Datasheet |
MLP | Bulk | Active | 130 µF | ±20% | 400 V | 1.32Ohm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
|
MLP151M350EK0ACAP ALUM 150UF 20% 350V FLATPACK |
0 |
|
Datasheet |
MLP | Bulk | Active | 150 µF | ±20% | 350 V | 1Ohm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
MLP131M420EK0CCAP ALUM 130UF 20% 420V FLTPCK |
0 |
|
Datasheet |
MLP | Bulk | Active | 130 µF | ±20% | 420 V | 1.32Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.2 A @ 20 kHz | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Through Hole | |
|
|
MLP131M400EK0CCAP ALUM 130UF 20% 400V FLTPCK |
0 |
|
Datasheet |
MLP | Bulk | Active | 130 µF | ±20% | 400 V | 1.32Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.2 A @ 20 kHz | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Through Hole | |
|
MLP111M450EK0DCAP ALUM 110UF 20% 450V FLATPACK |
0 |
|
Datasheet |
MLP | Bulk | Active | 110 µF | ±20% | 450 V | 1.456Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 960 mA @ 120 Hz | 1.1 A @ 20 kHz | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
1C.jpg)
|
MLP111M450EK1CCAP ALUM 110UF 20% 450V FLTPCK |
0 |
|
Datasheet |
MLP | Bulk | Active | 110 µF | ±20% | 450 V | 1.456Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 960 mA @ 120 Hz | 1.1 A @ 20 kHz | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Through Hole | |
|
|
MLP131M400EK0DCAP ALUM 130UF 20% 400V FLATPACK |
0 |
|
Datasheet |
MLP | Bulk | Active | 130 µF | ±20% | 400 V | 1.32Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.2 A @ 20 kHz | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
|
MLP131M400EK1ACAP ALUM 130UF 20% 400V FLATPACK |
0 |
|
Datasheet |
MLP | Bulk | Active | 130 µF | ±20% | 400 V | 1.32Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.2 A @ 20 kHz | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount | |
|
|
MLP131M400EK1DCAP ALUM 130UF 20% 400V FLATPACK |
0 |
|
Datasheet |
MLP | Bulk | Active | 130 µF | ±20% | 400 V | 1.32Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.2 A @ 20 kHz | - | 1.000" (25.40mm) | 1.500" L x 1.750" W (38.10mm x 44.45mm) | 0.500" (12.70mm) | - | Chassis Mount |
