Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNX2V183MSEJBBCAP ALUM 18000UF 20% 350V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 18000 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 32.4 A @ 120 Hz | 45.36 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
|
LNX2V183MSEJBNCAP ALUM 18000UF 20% 350V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 18000 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 32.4 A @ 120 Hz | 45.36 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
|
LNU2G822MSEJBBCAP ALUM 8200UF 20% 400V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 8200 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.1 A @ 120 Hz | 32.34 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.039" (128.00mm) | - | Chassis Mount | |
|
|
LNU2G822MSEJBNCAP ALUM 8200UF 20% 400V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 8200 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.1 A @ 120 Hz | 32.34 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.039" (128.00mm) | - | Chassis Mount | |
|
|
LNU2G822MTEJCAP ALUM 8200UF 20% 400V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 8200 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.1 A @ 120 Hz | 32.34 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.039" (128.00mm) | - | Chassis Mount | |
|
|
PEH200YV4330MU2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 3.3 mF | ±20% | 450 V | 20mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.7 A @ 100 Hz | 43.7 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 5.787" (147.00mm) | - | Chassis Mount | |
|
|
E36D401CSS183MFM9UCAP ALUM 18MF 20% 400V SCREW |
0 |
|
- |
U36D | Bulk | Active | 18 mF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.504" Dia (89.00mm) | 8.661" (220.00mm) | - | Chassis, Stud Mount | |
|
|
B43723A5568M000CAP ALUM 5600UF 20% 450V SCREW |
0 |
|
Datasheet |
B43723 | Bulk | Active | 5600 µF | ±20% | 450 V | 18mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.8 A @ 100 Hz | - | - | 1.122" (28.50mm) | 2.531" Dia (64.30mm) | 5.677" (144.20mm) | - | Chassis Mount | |
|
|
520C182M500CC2BCAP ALUM 1800UF 20% 500V SCREW |
0 |
|
Datasheet |
520C | Bulk | Active | 1800 µF | ±20% | 500 V | - | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.125" (28.58mm) | 2.500" Dia (63.50mm) | 4.187" (106.35mm) | - | Chassis Mount | |
|
|
500C562M400DF2FCAP ALUM 5600UF 20% 400V SCREW |
0 |
|
Datasheet |
500C | Bulk | Active | 5600 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.687" (144.45mm) | - | Chassis Mount | |
|
CGS722T250X4CCAP ALUM 7200UF 250V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 7200 µF | -10%, +50% | 250 V | 23mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.7 A @ 120 Hz | 17.55 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
520C502T400DE2BCAP ALUM 5000UF 400V SCREW CHAS |
0 |
|
Datasheet |
520C | Bulk | Active | 5000 µF | -10%, +50% | 400 V | 28.8mOhm @ 120Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.6 A @ 120 Hz | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.187" (131.75mm) | - | Chassis Mount | |
|
HES192G350V4LCAP ALUM 1900UF 350V SCREW CHAS |
0 |
|
Datasheet |

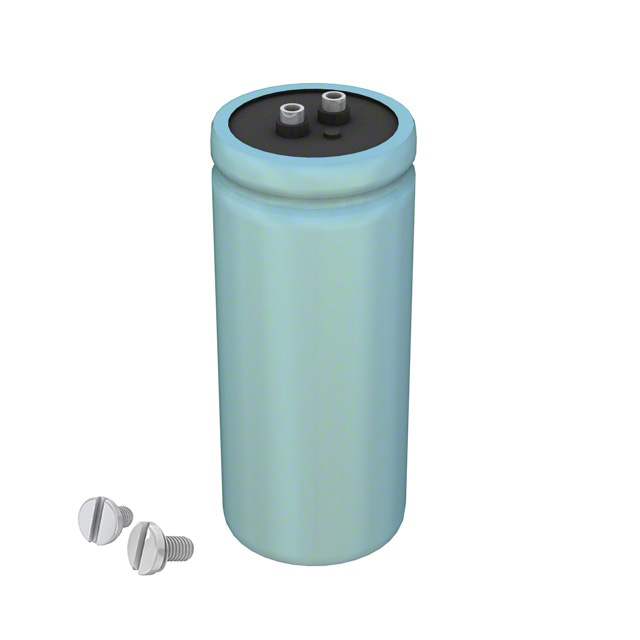

HES | Bulk | Active | 1900 µF | 0%, +50% | 350 V | 53mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.4 A @ 120 Hz | 7.872 A @ 10 kHz | - | - | 2.000" Dia (50.80mm) | 4.625" (117.48mm) | - | Chassis Mount | |
|
|
E36D401LGN173TFM9UCAP ALUM 17MF 400V SCREW CHAS MT |
0 |
|
- |
U36D | Bulk | Active | 17 mF | -10%, +50% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.252" (31.80mm) | 3.504" Dia (89.00mm) | 8.661" (220.00mm) | - | Chassis Mount | |
|
LNT2V103MSEJCAP ALUM 10000UF 20% 350V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 10000 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 32.4 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.024" (153.00mm) | - | Chassis Mount | |
|
|
B43743A9688M000CAP ALUM 6800UF 20% 400V SCREW |
0 |
|
- |
B43743 | Bulk | Active | 6800 µF | ±20% | 400 V | 14mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25 A @ 100 Hz | - | 22 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 4.693" (119.20mm) | - | Chassis Mount | |
|
|
CGH132T500V4LCAP ALUM 1300UF 500V SCREW CHAS |
0 |
|
Datasheet |
CGH | Bulk | Active | 1300 µF | -10%, +50% | 500 V | 192mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | - | - | - | 2.000" Dia (50.80mm) | 4.625" (117.48mm) | - | Chassis Mount | |
|
|
LNR2D473MSEBCAP ALUM 47000UF 20% 200V SCREW |
0 |
|
Datasheet |
LNR | Bulk | Active | 47000 µF | ±20% | 200 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.9 A @ 120 Hz | 25.08 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
|
ERHB631LGC332MFC0MCAP ALUM 3.3MF 20% 630V SCREW CH |
0 |
|
- |
RHB | Bulk | Active | 3.3 mF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9 A @ 120 Hz | 12.6 A @ 3 kHz | - | 1.240" (31.50mm) | 3.504" Dia (89.00mm) | 4.724" (120.00mm) | - | Chassis Mount | |
|
|
DCMX312T450DC2BCAP ALUM 3100UF 450V SCREW CHAS |
0 |
|
Datasheet |
