Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E36D401CSN223MFP0UCAP ALUM 22MF 20% 400V SCREW CHA |
0 |
|
- |
U36D | Bulk | Active | 22 mF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount | |
|
|
LNT2W822MSEJBBCAP ALUM 8200UF 20% 450V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 32.5 A @ 120 Hz | 45.5 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
LNT2W822MSEJBNCAP ALUM 8200UF 20% 450V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 32.5 A @ 120 Hz | 45.5 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
LNU2W822MSEJBBCAP ALUM 8200UF 20% 450V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.7 A @ 120 Hz | 34.58 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
LNU2W822MSEJBNCAP ALUM 8200UF 20% 450V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.7 A @ 120 Hz | 34.58 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
LNU2W822MTEJCAP ALUM 8200UF 20% 450V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 8200 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.7 A @ 120 Hz | 34.58 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
LNU2G103MSEJBNCAP ALUM 10000UF 20% 400V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 10000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25.9 A @ 120 Hz | 36.26 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
LNU2G103MTEJCAP ALUM 10000UF 20% 400V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 10000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 25.9 A @ 120 Hz | 36.26 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
CGS143T175X5LCAP ALUM 14000UF 175V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 14000 µF | -10%, +75% | 175 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount | |
|
|
CGS602T300X8LCAP ALUM 6000UF 300V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 6000 µF | -10%, +50% | 300 V | 22mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.9 A @ 120 Hz | 23.85 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 8.625" (219.08mm) | - | Chassis Mount | |
|
MAL210225682E3CAP ALUM 6800UF 20% 350V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 6800 µF | ±20% | 350 V | 24mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.3 A @ 100 Hz | - | 18 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
|
MAL210265682E3CAP ALUM 6800UF 20% 350V SCREW |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 6800 µF | ±20% | 350 V | 24mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.3 A @ 100 Hz | - | 18 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
|
ERHB701LGC182MFA5MCAP ALUM 1.8MF 20% 700V SCREW CH |
0 |
|
- |
RHB | Bulk | Active | 1.8 mF | ±20% | 700 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.2 A @ 120 Hz | 8.68 A @ 3 kHz | - | 1.240" (31.50mm) | 3.504" Dia (89.00mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
LNT2C473MSECAP ALUM 47000UF 20% 160V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 47000 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 17.2 A @ 120 Hz | 20.64 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
|
CGS154ULX5L3PDCAP ALUM 150000UF 40V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 150000 µF | -10%, +75% | 40 V | 3mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 A @ 120 Hz | 39 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
LNT2H472MSEJCAP ALUM 4700UF 20% 500V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 4700 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 16.3 A @ 120 Hz | 22.82 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.024" (153.00mm) | - | Chassis Mount | |
|
LNK2H562MSEHCAP ALUM 5600UF 20% 500V SCREW |
0 |
|
Datasheet |

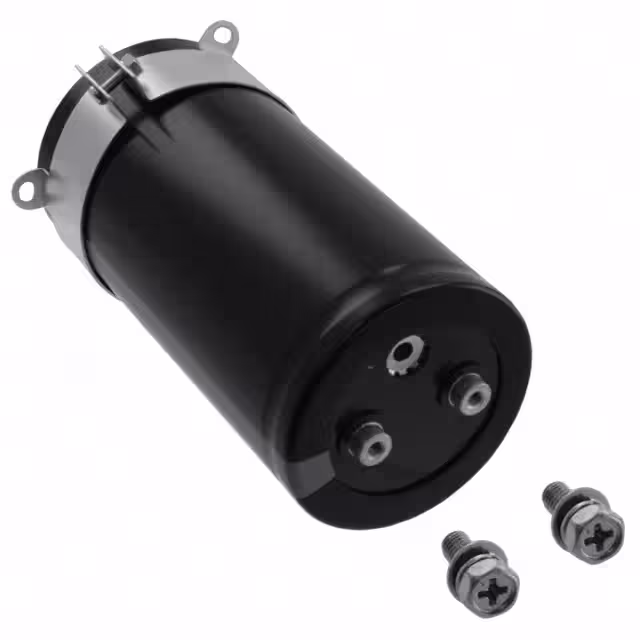

LNK | Bulk | Active | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 19 A @ 120 Hz | 26.6 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 7.480" (190.00mm) | - | Chassis Mount | |
|
|
LNU2H562MSEJBBCAP ALUM 5600UF 20% 500V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.8 A @ 120 Hz | 22.12 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
LNU2H562MSEJBNCAP ALUM 5600UF 20% 500V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.8 A @ 120 Hz | 22.12 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.827" (148.00mm) | - | Chassis Mount | |
|
|
LNU2H562MTEJCAP ALUM 5600UF 20% 500V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.8 A @ 120 Hz | 22.12 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.827" (148.00mm) | - | Chassis Mount |
