Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

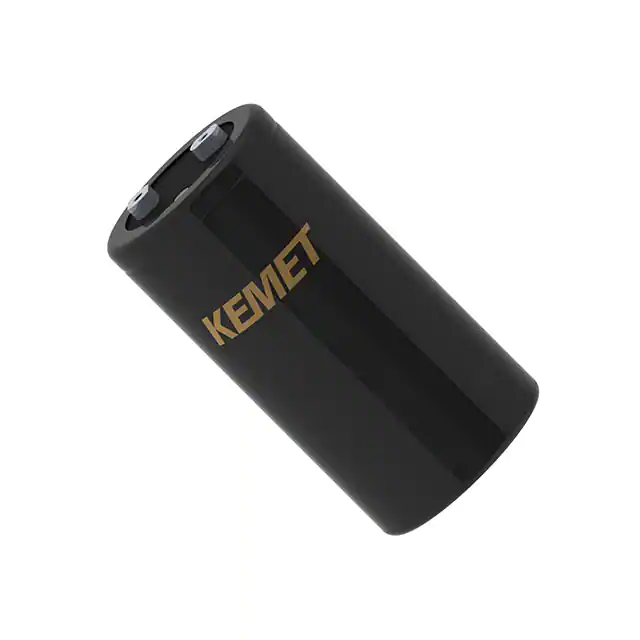

ALS80C113QT500CAP ALUM 11000UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 11000 µF | ±20% | 500 V | 23mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.4 A @ 100 Hz | 31.4 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS80H113QT500CAP ALUM 11000UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS80 | Bulk | Active | 11000 µF | ±20% | 500 V | 23mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.4 A @ 100 Hz | 31.4 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS81A113QT500CAP ALUM 11000UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 11000 µF | ±20% | 500 V | 23mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.4 A @ 100 Hz | 31.4 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS81C113QT500CAP ALUM 11000UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 11000 µF | ±20% | 500 V | 23mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.4 A @ 100 Hz | 31.4 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
ALS81H113QT500CAP ALUM 11000UF 20% 500V SCREW |
0 |
|
Datasheet |
ALS81 | Bulk | Active | 11000 µF | ±20% | 500 V | 23mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.4 A @ 100 Hz | 31.4 A @ 10 kHz | 18 mOhms | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
LNY2W123MSEJBBCAP ALUM 12000UF 20% 450V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 12000 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26 A @ 120 Hz | 36.4 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
LNY2W123MSEJBNCAP ALUM 12000UF 20% 450V SCREW |
0 |
|
Datasheet |
LNY | Bulk | Active | 12000 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26 A @ 120 Hz | 36.4 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
B43743A9828M000CAP ALUM 8200UF 20% 400V SCREW |
0 |
|
- |
B43743 | Bulk | Active | 8200 µF | ±20% | 400 V | 11mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29.4 A @ 100 Hz | - | 18 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 5.185" (131.70mm) | - | Chassis Mount | |
|
|
LNK2W123MSEJBBCAP ALUM 12000UF 20% 450V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 12000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 29.7 A @ 120 Hz | 41.58 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
LNK2W123MSEJBNCAP ALUM 12000UF 20% 450V SCREW |
0 |
|
Datasheet |
LNK | Bulk | Active | 12000 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 29.7 A @ 120 Hz | 41.58 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
LNK2W123MESJCAPACITOR |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
ERHB701LGC222MEF5MCAP ALUM 2.2MF 20% 700V SCREW CH |
0 |
|
- |
RHB | Bulk | Active | 2.2 mF | ±20% | 700 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.8 A @ 120 Hz | 12.32 A @ 3 kHz | - | 1.240" (31.50mm) | 3.000" Dia (76.20mm) | 6.102" (155.00mm) | - | Chassis Mount | |
|
|
MAL210412153E3CAP ALUM 15000UF 20% 200V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 15000 µF | ±20% | 200 V | 12mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.9 A @ 100 Hz | - | 9 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
|
MAL210452153E3CAP ALUM 15000UF 20% 200V SCREW |
0 |
|
Datasheet |
104 PHL-ST | Bulk | Active | 15000 µF | ±20% | 200 V | 12mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.9 A @ 100 Hz | - | 9 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
B43721A9109M000CAP ALUM 10000UF 20% 400V SCREW |
0 |
|
Datasheet |
B43721 | Bulk | Active | 10000 µF | ±20% | 400 V | 14mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 22.1 A @ 100 Hz | - | 24 mOhms | 1.248" (31.70mm) | 3.027" Dia (76.90mm) | 6.681" (169.70mm) | - | Chassis Mount | |
|
LNT2G103MSEJCAP ALUM 10000UF 20% 400V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 10000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 32.9 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
LNUN7472MSEHBBCAP ALUM 4700UF 20% 525V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 4700 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.2 A @ 120 Hz | 21.28 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 7.402" (188.00mm) | - | Chassis Mount | |
|
|
LNUN7472MSEHBNCAP ALUM 4700UF 20% 525V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 4700 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.2 A @ 120 Hz | 21.28 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 7.402" (188.00mm) | - | Chassis Mount | |
|
|
LNUN7472MTEHCAP ALUM 4700UF 20% 525V SCREW |
0 |
|
Datasheet |
LNU | Bulk | Active | 4700 µF | ±20% | 525 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.2 A @ 120 Hz | 21.28 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 7.402" (188.00mm) | - | Chassis Mount | |
|
|
LNX2H822MSEJBBCAP ALUM 8200UF 20% 350V SCREW |
0 |
|
Datasheet |
LNX | Bulk | Active | 8200 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 21.4 A @ 120 Hz | 29.96 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount |
