Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43727A9159M608CAP ALUM 400V POLAR |
0 |
|
Datasheet |
B43727 | Bulk | Active | 15 mF | ±20% | 400 V | 8mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 31.9 A @ 100 Hz | - | 14 mOhms | 1.248" (31.70mm) | 3.028" Dia (76.90mm) | 7.547" (191.70mm) | - | Chassis, Stud Mount | |
|
MAL210616154E3CAP ALUM 150000UF 25V SCREW CHAS |
0 |
|
Datasheet |
106 PED-ST | Bulk | Active | 150000 µF | -10%, +30% | 25 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34 A @ 100 Hz | - | 8 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 6.012" (152.70mm) | - | Chassis Mount | |
|
|
MAL210656154E3CAP ALUM 150000UF 25V SCREW CHAS |
0 |
|
Datasheet |
106 PED-ST | Bulk | Active | 150000 µF | -10%, +30% | 25 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34 A @ 100 Hz | - | 8 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 6.012" (152.70mm) | - | Chassis Mount | |
|
|
520C502M450DP2GCAP ALUM 5000UF 20% 450V SCREW |
0 |
|
Datasheet |
520C | Bulk | Active | 5000 µF | ±20% | 450 V | - | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.937" (150.80mm) | - | Chassis Mount | |
|
|
520C502T450DP2BCAP ALUM 5000UF 450V SCREW CHAS |
0 |
|
Datasheet |
520C | Bulk | Active | 5000 µF | -10%, +50% | 450 V | 20mOhm @ 120Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.5 A @ 120 Hz | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.937" (150.80mm) | - | Chassis Mount | |
|
|
MAL210637104E3CAP ALUM 100000UF 40V SCREW CHAS |
0 |
|
Datasheet |
106 PED-ST | Bulk | Active | 100000 µF | -10%, +30% | 40 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.5 A @ 100 Hz | - | 8 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 6.012" (152.70mm) | - | Chassis Mount | |
|
|
MAL210677104E3CAP ALUM 100000UF 40V SCREW CHAS |
0 |
|
Datasheet |
106 PED-ST | Bulk | Active | 100000 µF | -10%, +30% | 40 V | 8mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.5 A @ 100 Hz | - | 8 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 6.012" (152.70mm) | - | Chassis Mount | |
|

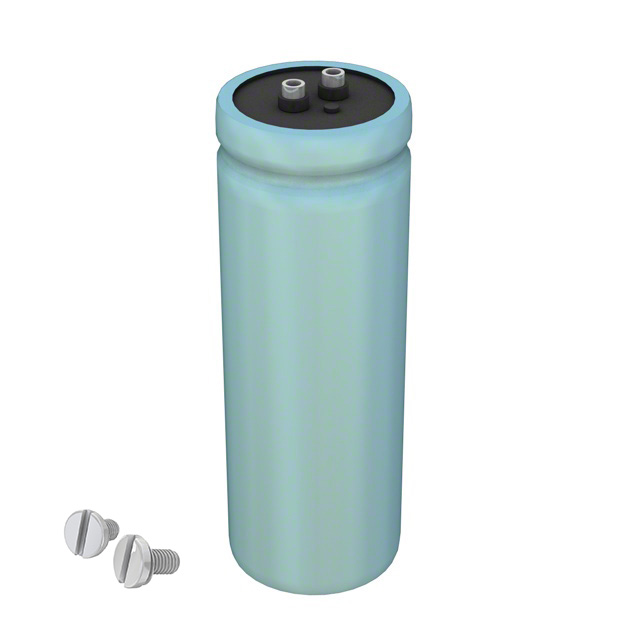

CGH172T500V5LCAP ALUM 1700UF 500V SCREW CHAS |
0 |
|
Datasheet |
CGH | Bulk | Active | 1700 µF | -10%, +50% | 500 V | 149mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4 A @ 120 Hz | - | - | - | 2.000" Dia (50.80mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
LNT2V123MSEJCAP ALUM 12000UF 20% 350V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 12000 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 36 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 7.598" (193.00mm) | - | Chassis Mount | |
|
|
LNC2H103MSEJBBCAP ALUM 10000UF 20% 500V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 10000 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 38.3 A @ 120 Hz | 53.62 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.189" (208.00mm) | - | Chassis Mount | |
|
|
LNC2H103MSEJBNCAP ALUM 10000UF 20% 500V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 10000 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 38.3 A @ 120 Hz | 53.62 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.189" (208.00mm) | - | Chassis Mount | |
|
|
LNC2H103MTEJCAP ALUM 10000UF 20% 500V SCREW |
0 |
|
Datasheet |
LNC | Bulk | Active | 10000 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 38.3 A @ 120 Hz | 53.62 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.189" (208.00mm) | - | Chassis Mount | |
|
|
MAL211066602E3CAP ALUM 6000UF 400V SCREW CHAS |
0 |
|
Datasheet |
110 PHT-ST | Bulk | Active | 6000 µF | -10%, +30% | 400 V | 23.8mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | 18.6 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 8.661" (220.00mm) | - | Chassis Mount | |
|
|
LNT1A155MSEBCAP ALUM 1.5F 20% 10V SCREW CHAS |
0 |
|
Datasheet |
LNT | Bulk | Active | 1.5 F | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.1 A @ 120 Hz | 33.15 A @ 10 kHz | - | 1.634" (41.50mm) | 3.937" Dia (100.00mm) | 8.819" (224.00mm) | - | Chassis Mount | |
|
|
LNT1A155MSENCAP ALUM 1.5F 20% 10V SCREW CHAS |
0 |
|
Datasheet |
LNT | Bulk | Active | 1.5 F | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.1 A @ 120 Hz | 33.15 A @ 10 kHz | - | 1.634" (41.50mm) | 3.937" Dia (100.00mm) | 8.819" (224.00mm) | - | Chassis Mount | |
|
|
PEH200XX4680MB2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 6.8 mF | ±20% | 385 V | 14mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.4 A @ 100 Hz | 47 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
PEH200XX4680MU2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 6.8 mF | ±20% | 385 V | 14mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 17.4 A @ 100 Hz | 47 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
MAL250034682E3CAP ALUM 6800UF 20% 420V SCREW |
0 |
|
Datasheet |
500 PGP-ST | Bulk | Active | 6800 µF | ±20% | 420 V | 18mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 37.2 A @ 120 Hz | - | 14 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
|
MAL250074682E3CAP ALUM 6800UF 20% 420V SCREW |
0 |
|
Datasheet |
500 PGP-ST | Bulk | Active | 6800 µF | ±20% | 420 V | 18mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 37.2 A @ 120 Hz | - | 14 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
MAL210218682E3CAP ALUM 6800UF 20% 63V SCREW CH |
0 |
|
Datasheet |
102 PHR-ST | Bulk | Active | 6800 µF | ±20% | 63 V | 38mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.6 A @ 100 Hz | - | 25 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount |
