Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNR1A155MSENCAP ALUM 1.5F 20% 10V SCREW CHAS |
0 |
|
Datasheet |
LNR | Bulk | Active | 1.5 F | ±20% | 10 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.9 A @ 120 Hz | 38.985 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
MAL250136103E3CAP ALUM 10000UF 20% 400V SCREW |
0 |
|
Datasheet |
501 PGM-ST | Box | Active | 10000 µF | ±20% | 400 V | 20mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.8 A @ 100 Hz | 35.7 A @ 10 kHz | 16 mOhms | 1.252" (31.80mm) | 3.520" Dia (89.40mm) | 5.949" (151.10mm) | - | Chassis Mount | |
|
|
PEH200YX4470MU2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 4.7 mF | ±20% | 450 V | 14mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.8 A @ 100 Hz | 47.6 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|

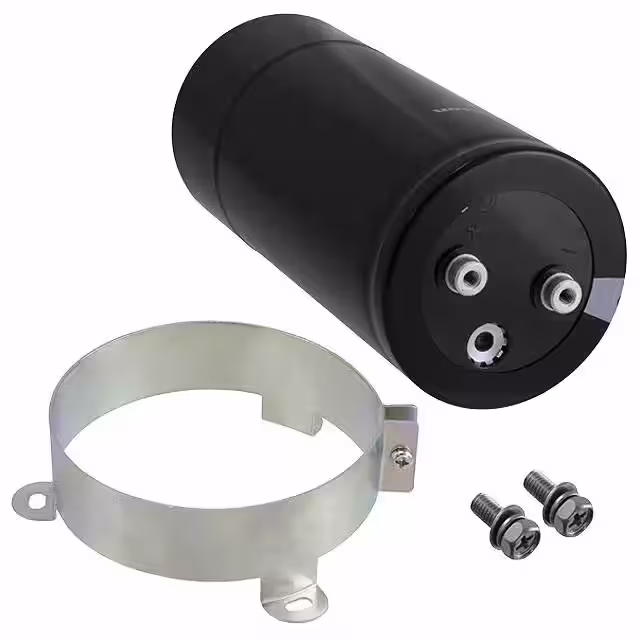

LQR2G153MSEJCAP ALUM 15000UF 20% 400V SCREW |
0 |
|
Datasheet |
LQR | Bulk | Active | 15000 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 43 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
CGS622T300W5LCAP ALUM 6200UF 300V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 6200 µF | -10%, +50% | 300 V | 29mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.6 A @ 120 Hz | 15.9 A @ 10 kHz | - | - | 3.000" Dia (76.20mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
PEH200UY5100MU2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 10 mF | ±20% | 350 V | 11mOhm @ 100Hz | 29000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.3 A @ 100 Hz | 56.9 A @ 10 kHz | - | 1.260" (32.00mm) | 3.606" Dia (91.60mm) | 5.768" (146.50mm) | - | Chassis Mount | |
|
|
LNT1V684MSEBCAP ALUM 680000UF 20% 35V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 680000 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27.5 A @ 120 Hz | 41.25 A @ 10 kHz | - | 1.634" (41.50mm) | 3.937" Dia (100.00mm) | 10.000" (254.00mm) | - | Chassis Mount | |
|
|
LNT1V684MSENCAP ALUM 680000UF 20% 35V SCREW |
0 |
|
Datasheet |
LNT | Bulk | Active | 680000 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 27.5 A @ 120 Hz | 41.25 A @ 10 kHz | - | 1.634" (41.50mm) | 3.937" Dia (100.00mm) | 10.000" (254.00mm) | - | Chassis Mount | |
|
|
PEH200YX4470MB2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 4.7 mF | ±20% | 450 V | 14mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.8 A @ 100 Hz | 47.6 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
550C352T500DF2BCAP ALUM 3500UF 500V SCREW CHAS |
0 |
|
Datasheet |
550C | Bulk | Active | 3500 µF | -10%, +50% | 500 V | 40mOhm @ 120Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.8 A @ 120 Hz | - | - | 1.250" (31.75mm) | 3.000" Dia (76.20mm) | 5.687" (144.45mm) | - | Chassis Mount | |
|
MAL210118154E3CAP ALUM 150000UF 20% 63V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 150000 µF | ±20% | 63 V | 6mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.2 A @ 100 Hz | - | 5 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
|
MAL210139683E3CAP ALUM 68000UF 20% 100V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 68000 µF | ±20% | 100 V | 6mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.6 A @ 100 Hz | - | 5 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
|
MAL210158154E3CAP ALUM 150000UF 20% 63V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 150000 µF | ±20% | 63 V | 6mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22.2 A @ 100 Hz | - | 5 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
|
MAL210179683E3CAP ALUM 68000UF 20% 100V SCREW |
0 |
|
Datasheet |
101 PHR-ST | Bulk | Active | 68000 µF | ±20% | 100 V | 6mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 25.6 A @ 100 Hz | - | 5 mOhms | 1.252" (31.80mm) | 2.992" Dia (76.00mm) | 5.972" (151.70mm) | - | Chassis Mount | |
|
CGS482T350W5LCAP ALUM 4800UF 350V SCREW CHAS |
0 |
|
Datasheet |
CGS | Bulk | Active | 4800 µF | -10%, +50% | 350 V | 26mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 11.1 A @ 120 Hz | 16.65 A @ 10 kHz | - | - | 2.500" Dia (63.50mm) | 5.625" (142.88mm) | - | Chassis Mount | |
|
|
PEH200UX5100MU2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 10 mF | ±20% | 350 V | 11mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.4 A @ 100 Hz | 48.5 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
254HC2A800K2BM6CONDUCTION COOLED/IC |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PEH200UX5100MB2CAP ALUM SCRW TERM 85C |
0 |
|
Datasheet |
PEH200 | Box | Active | 10 mF | ±20% | 350 V | 11mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.4 A @ 100 Hz | 48.5 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
|
MLPS153M025EH0CCAP ALUM 15000UF 20% 25V RADIAL |
0 |
|
Datasheet |
MLPS | Bulk | Active | 15000 µF | ±20% | 25 V | 35mOhm @ 120Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.77 A @ 120 Hz | 3.08 A @ 20 kHz | - | 1.000" (25.40mm) | 1.810" L x 0.600" W (45.97mm x 15.24mm) | 2.520" (64.00mm) | - | Through Hole | |
|
|
MLPS403M7R5EH0CCAP ALUM 40000UF 20% 7.5V RADIAL |
0 |
|
Datasheet |
MLPS | Bulk | Active | 40000 µF | ±20% | 7.5 V | 33mOhm @ 120Hz | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.86 A @ 120 Hz | 3.18 A @ 20 kHz | - | 1.000" (25.40mm) | 1.810" L x 0.600" W (45.97mm x 15.24mm) | 2.520" (64.00mm) | - | Through Hole |
