Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S2DP271AACAP ALUM 270UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 270 µF | ±20% | 200 V | 614mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.41 A @ 120 Hz | 1.974 A @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2DP271BACAP ALUM 270UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 270 µF | ±20% | 200 V | 614mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.41 A @ 120 Hz | 1.974 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ECO-S2DP331AACAP ALUM 330UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 330 µF | ±20% | 200 V | 553mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.184 A @ 100 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ECO-S2DP331CACAP ALUM 330UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 330 µF | ±20% | 200 V | 553mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

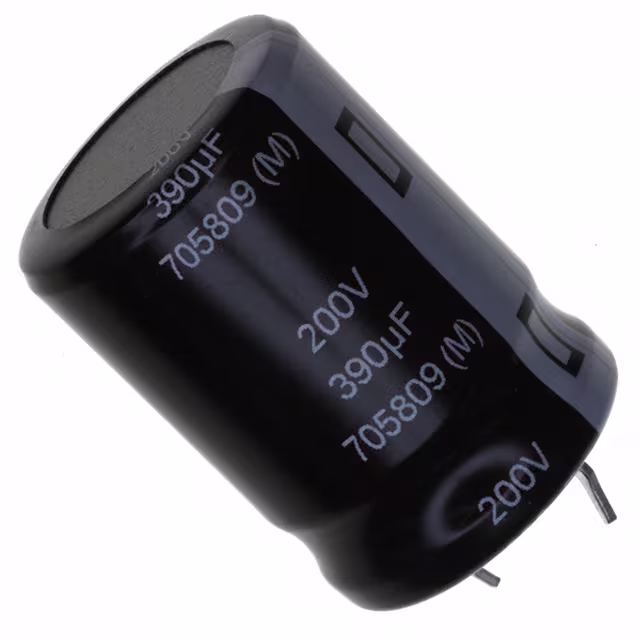

ECO-S2DP391BACAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 390 µF | ±20% | 200 V | 468mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.352 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
ECO-S2DP391CACAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 390 µF | ±20% | 200 V | 468mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.352 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
ECO-S2DP471BACAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 470 µF | ±20% | 200 V | 388mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.59 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ECO-S2DP471DACAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 470 µF | ±20% | 200 V | 388mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ECO-S2DP561BACAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 560 µF | ±20% | 200 V | 326mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.43 A @ 120 Hz | 3.402 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
ECO-S2DP561DACAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 560 µF | ±20% | 200 V | 326mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.43 A @ 120 Hz | 3.402 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ECO-S2DP681BACAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 680 µF | ±20% | 200 V | 268mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.68 A @ 120 Hz | 3.752 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2DP681DACAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 680 µF | ±20% | 200 V | 268mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.68 A @ 120 Hz | 3.752 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2DP821CACAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 820 µF | ±20% | 200 V | 222mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.93 A @ 120 Hz | 4.102 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2DP821EACAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 820 µF | ±20% | 200 V | 222mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.93 A @ 120 Hz | 4.102 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ECO-S2DP102CACAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 1000 µF | ±20% | 200 V | 199mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ECO-S2DP102EACAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 1000 µF | ±20% | 200 V | 199mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.25 A @ 120 Hz | 4.55 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECO-S2DP122DACAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.9 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
ECO-S2DP122EACAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.9 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ECO-S2DP152DACAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 1500 µF | ±20% | 200 V | 144mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.87 A @ 120 Hz | 5.418 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
ECO-S2DP152EACAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-UP | Bulk | Obsolete | 1500 µF | ±20% | 200 V | 144mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.87 A @ 120 Hz | 5.418 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole |
