Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEV-HB1HR10RCAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
HB | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EEV-HB1HR22RCAP ALUM 0.22UF 20% 50V SMD |
0 |
|
Datasheet |
HB | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
EEV-HB1HR33RCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Datasheet |
HB | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.228" (5.80mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
ECE-V0GS220SRCAP ALUM 22UF 20% 4V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 4 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|

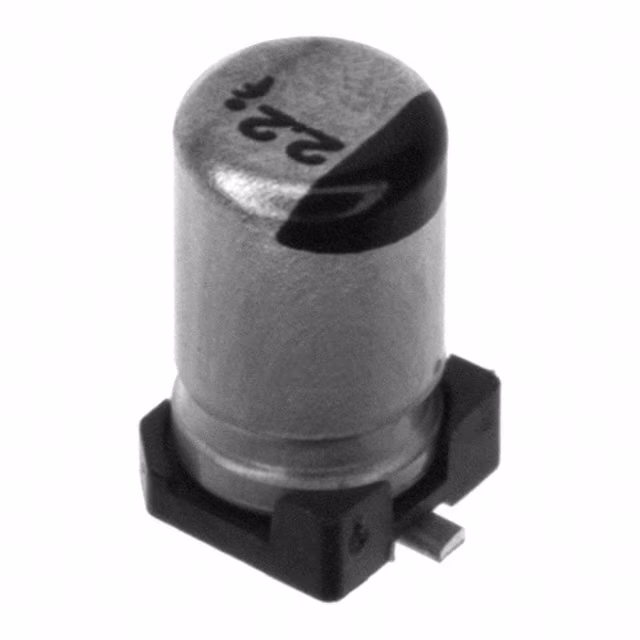

ECE-V1VS2R2SRCAP ALUM 2.2UF 20% 35V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
ECE-V1HS0R1SRCAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
ECE-V1HA0R1SRCAP ALUM 0.1UF 20% 50V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
ECE-V1HSR22SRCAP ALUM 0.22UF 20% 50V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
ECE-V1HAR22SRCAP ALUM 0.22UF 20% 50V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
ECE-V1HSR33SRCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
|
ECE-V1HAR33SRCAP ALUM 0.33UF 20% 50V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 mA @ 120 Hz | - | - | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
ECE-V1HSR47SRCAP ALUM 0.47UF 20% 50V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
ECE-V1HS2R2SRCAP ALUM 2.2UF 20% 50V SMD |
0 |
|
Datasheet |
VS | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 mA @ 120 Hz | - | - | - | 0.118" Dia (3.00mm) | 0.213" (5.40mm) | 0.130" L x 0.130" W (3.30mm x 3.30mm) | Surface Mount | |
|
ECE-A1AN101UCAP ALUM 100UF 20% 10V RADIAL TH |
0 |
|
Datasheet |
SU | Bulk | Obsolete | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 130 mA @ 120 Hz | 221 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.441" (11.20mm) | - | Through Hole | |
|
ECE-A1HNR47UCAP ALUM 0.47UF 20% 50V RADIAL |
0 |
|
Datasheet |
SU | Bulk | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | - | 17 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
|
ECE-A1HN010UCAP ALUM 1UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
SU | Bulk | Obsolete | 1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | - | 17 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | |
|
ECE-A0JKG221CAP ALUM 220UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
KG | Bulk | Obsolete | 220 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 190 mA @ 100 kHz | 1.2 Ohms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
|
ECE-A1CKG680CAP ALUM 68UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
KG | Bulk | Obsolete | 68 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 190 mA @ 100 kHz | 1.2 Ohms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
|
ECE-A1CKG101CAP ALUM 100UF 20% 16V RADIAL TH |
0 |
|
Datasheet |
KG | Bulk | Obsolete | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 190 mA @ 100 kHz | 1.2 Ohms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole | |
|
|
ECE-A1EKG470CAP ALUM 47UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
KG | Bulk | Obsolete | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 190 mA @ 100 kHz | 1.2 Ohms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
