Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EET-ED2G391EACAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 390 µF | ±20% | 400 V | 340mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.64 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EET-ED2G471EACAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 470 µF | ±20% | 400 V | 282mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.87 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

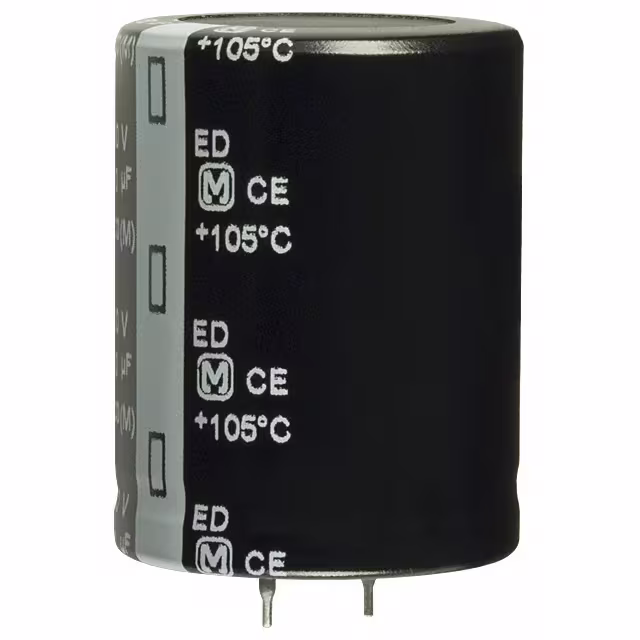

EET-ED2G561EACAP ALUM 560UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 560 µF | ±20% | 400 V | 237mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 3.36 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
EET-ED2G820BACAP ALUM 82UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 82 µF | ±20% | 400 V | 1.617Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.14 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

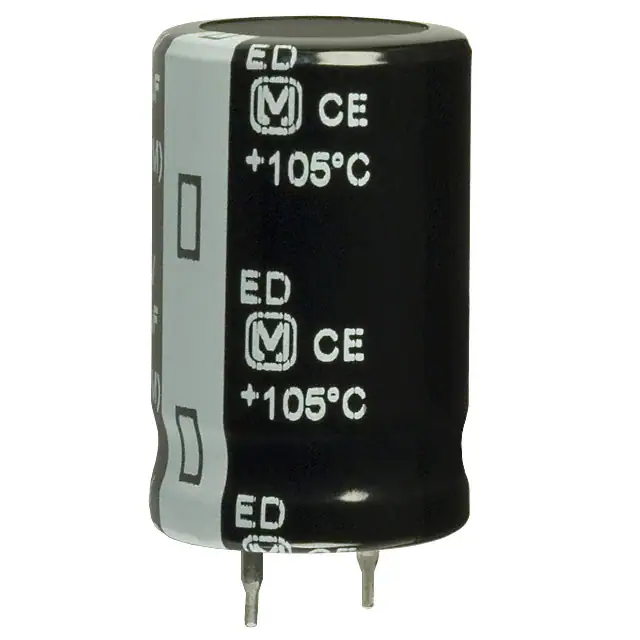

EET-ED2W101BACAP ALUM 100UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 100 µF | ±20% | 450 V | 1.326Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

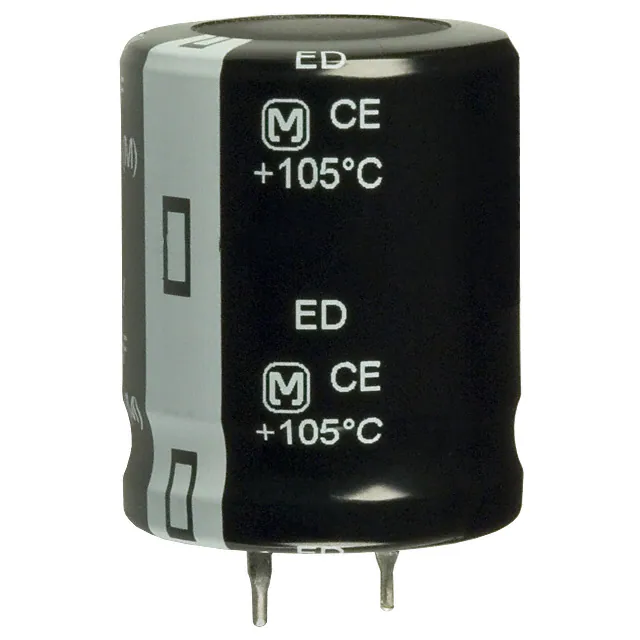

EET-ED2W101CACAP ALUM 100UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 100 µF | ±20% | 450 V | 1.326Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-ED2W121BACAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 120 µF | ±20% | 450 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 1.46 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

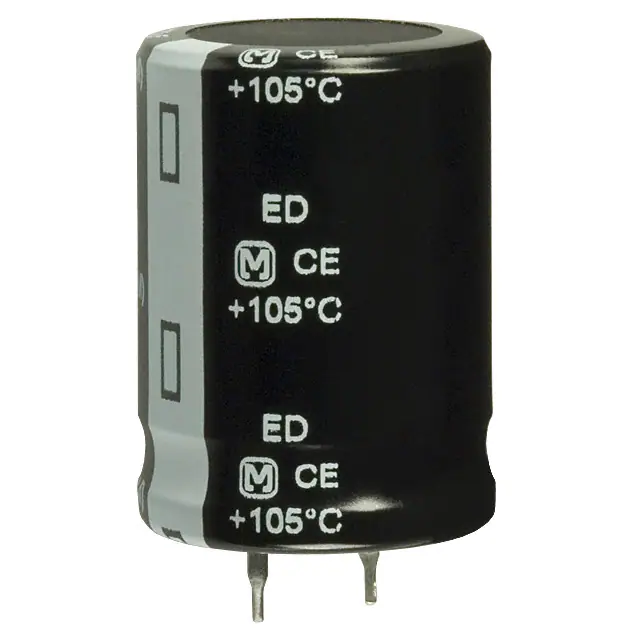

EET-ED2W121CACAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 120 µF | ±20% | 450 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 1.46 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EET-ED2W121DACAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 120 µF | ±20% | 450 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.02 A @ 120 Hz | 1.46 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

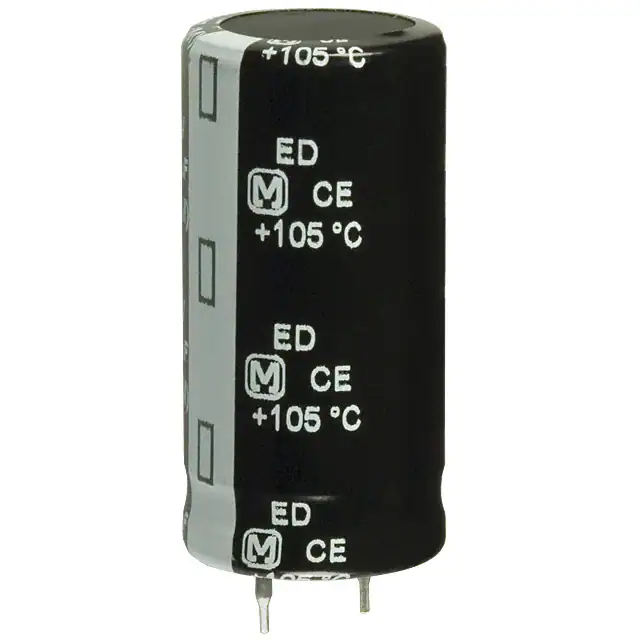

EET-ED2W151BACAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 150 µF | ±20% | 450 V | 884mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | 1.53 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

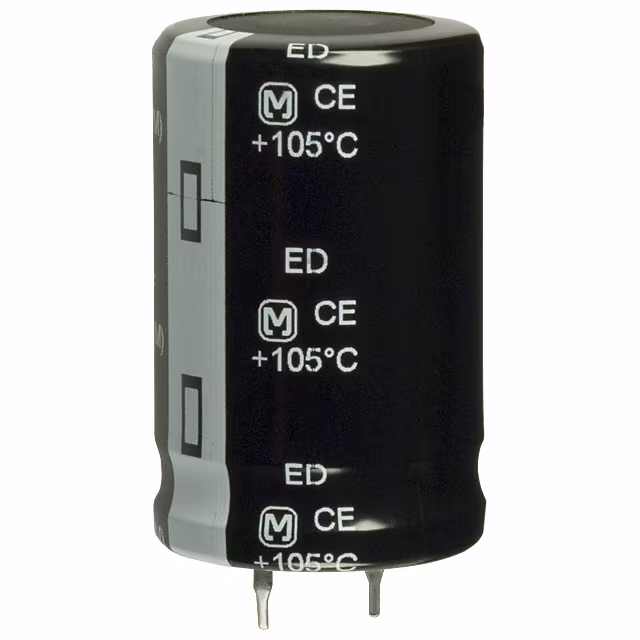

EET-ED2W151CACAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 150 µF | ±20% | 450 V | 884mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | 1.53 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

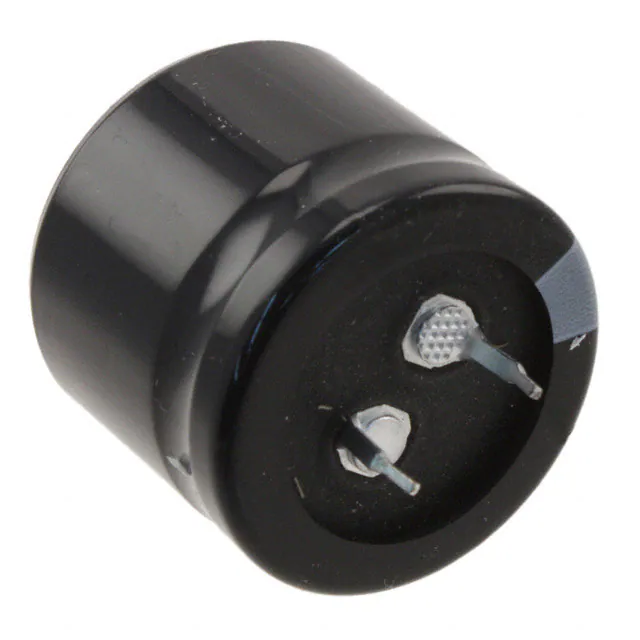

EET-ED2W151DACAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 150 µF | ±20% | 450 V | 884mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | 1.53 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

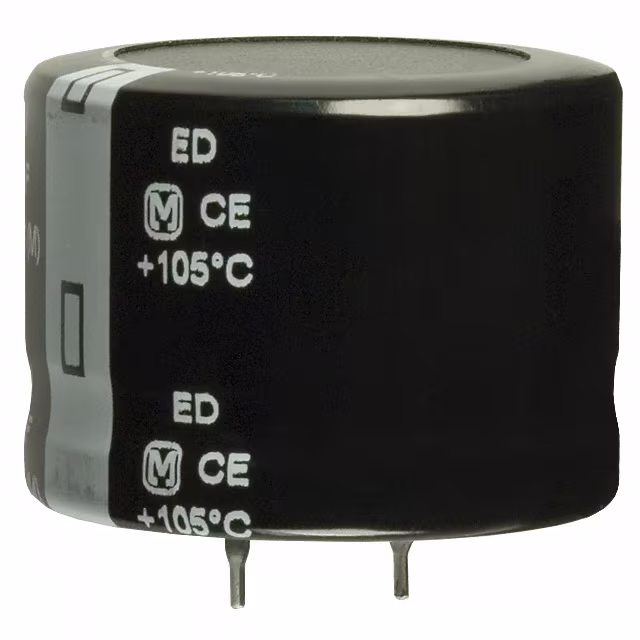

EET-ED2W151EACAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 150 µF | ±20% | 450 V | 884mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | 1.53 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
EET-ED2W181BACAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 180 µF | ±20% | 450 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
EET-ED2W181CACAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 180 µF | ±20% | 450 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
EET-ED2W181DACAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 180 µF | ±20% | 450 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
EET-ED2W181EACAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 180 µF | ±20% | 450 V | 737mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.6 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|

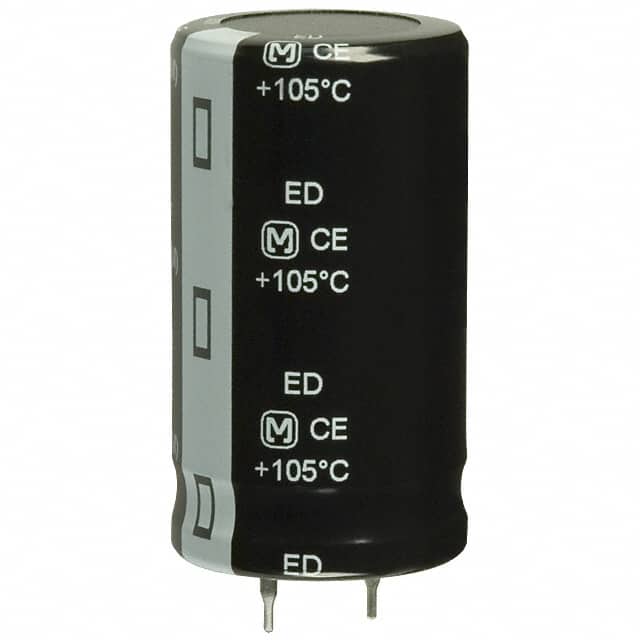

EET-ED2W221CACAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 220 µF | ±20% | 450 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.03 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

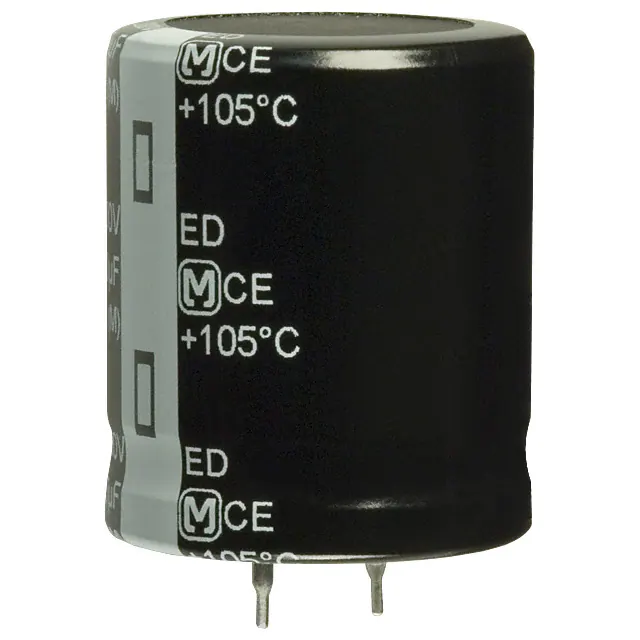

EET-ED2W221DACAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 220 µF | ±20% | 450 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.03 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EET-ED2W221EACAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 220 µF | ±20% | 450 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.03 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole |
