Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO-S1KA472DACAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 4700 µF | ±20% | 80 V | 49mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ECO-S1KA472EACAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 4700 µF | ±20% | 80 V | 49mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.795 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ECO-S1KA562EACAP ALUM 5600UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 5600 µF | ±20% | 80 V | 50mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | 4.255 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ECO-S1KA682EACAP ALUM 6800UF 20% 80V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 6800 µF | ±20% | 80 V | 41mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.485 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ECO-S2AA331BACAP ALUM 330UF 20% 100V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 330 µF | ±20% | 100 V | 553mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 920 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S2AA471BACAP ALUM 470UF 20% 100V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 470 µF | ±20% | 100 V | 388mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 920 mA @ 120 Hz | 1.058 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S2DA101BACAP ALUM 100UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 100 µF | ±20% | 200 V | 1.658Ohm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 700 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S2DA151BACAP ALUM 150UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 150 µF | ±20% | 200 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 952 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S2GA330BACAP ALUM 33UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 33 µF | ±20% | 400 V | 4.521Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 420 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ECO-S2GA470BACAP ALUM 47UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HA | Bulk | Obsolete | 47 µF | ±20% | 400 V | 2.822Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 430 mA @ 120 Hz | 602 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ECE-V1VA221PCAP ALUM 220UF 20% 35V SMD |
0 |
|
Datasheet |
VS | Bulk | Obsolete | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 310 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EET-HC2G561DACAP ALUM 560UF 20% 400V SNAP TH |
0 |
|
Datasheet |
TS-HC | Bulk | Obsolete | 560 µF | ±20% | 400 V | 326mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
3535B4A0072A250A1CAP ALUM 80UF 10% 250V QC CHAS M |
0 |
|
Datasheet |
3500 | Bulk | Obsolete | 80 µF | ±10% | 250 V | - | - | -40°C ~ 65°C | - | - | Motor Start | - | - | - | - | 1.813" Dia (46.05mm) | 3.375" (85.73mm) | - | Chassis Mount | |
|

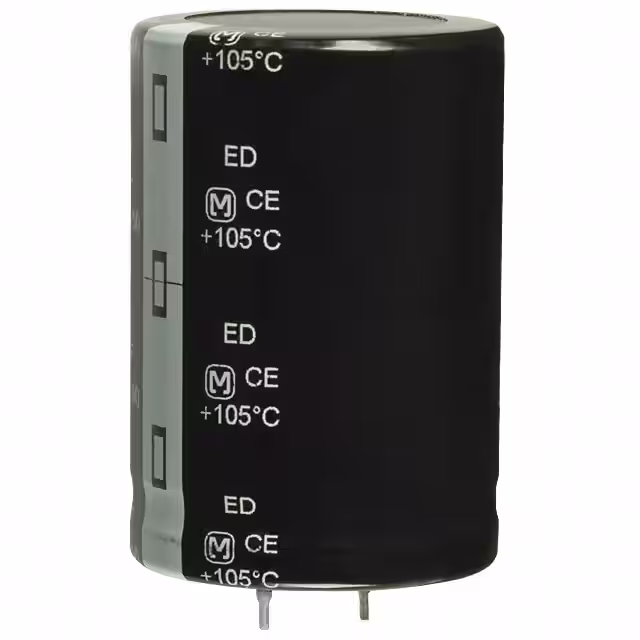

EET-ED2W471EACAP ALUM 470UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 470 µF | ±20% | 450 V | 282mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.47 A @ 120 Hz | 3.53 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
EET-UQ2W331EACAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
TS-UQ | Bulk | Obsolete | 330 µF | ±20% | 450 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.814 A @ 10 kHz | - | - | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
ECE-P2EP682HACAP ALUM 6800UF 20% 250V SNAP TH |
0 |
|
Datasheet |
T-UP | Bulk | Obsolete | 6800 µF | ±20% | 250 V | 29mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.16 A @ 120 Hz | 17.02 A @ 10 kHz | - | 0.984" (25.00mm) | 1.969" Dia (50.00mm) | 4.134" (105.00mm) | - | Through Hole | |
|
EET-ED2D102CACAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 1000 µF | ±20% | 200 V | 149mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 4.06 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
EET-ED2D102DACAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 1000 µF | ±20% | 200 V | 149mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 4.06 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
EET-ED2D102EACAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 1000 µF | ±20% | 200 V | 149mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 4.06 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
EET-ED2D122DACAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TS-ED | Bulk | Obsolete | 1200 µF | ±20% | 200 V | 124mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.13 A @ 120 Hz | 4.47 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole |
