Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KMH25VS472M22X25T2CAP ALUM 4700UF 20% 25V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 4700 µF | ±20% | 25 V | 106mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.62 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
KMH25VS562M22X25T2CAP ALUM 5600UF 20% 25V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 5600 µF | ±20% | 25 V | 89mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.63 A @ 120 Hz | 1.7604 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
KMH25VS682M22X30T2CAP ALUM 6800UF 20% 25V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 6800 µF | ±20% | 25 V | 73mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.86 A @ 120 Hz | 2.0088 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
KMH25VN822M25X30T2CAP ALUM 8200UF 20% 25V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 8200 µF | ±20% | 25 V | 61mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 2.2896 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.181" (30.00mm) | - | Through Hole | |
|
KMH25VN123M25X40T2CAP ALUM 12000UF 20% 25V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 12000 µF | ±20% | 25 V | 41mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.74 A @ 120 Hz | 2.9592 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.575" (40.00mm) | - | Through Hole | |
|

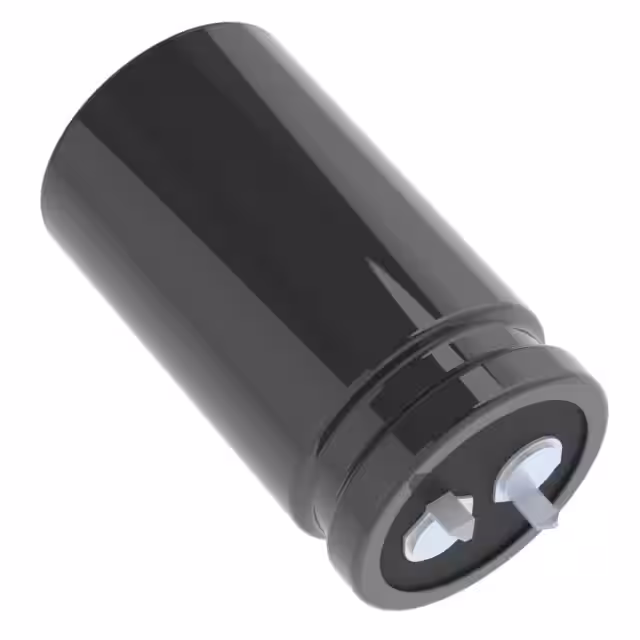

KMH25VN153M25X45T2CAP ALUM 15000UF 20% 25V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 15000 µF | ±20% | 25 V | 33mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.15 A @ 120 Hz | 3.402 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.772" (45.00mm) | - | Through Hole | |
|
KMH25VN153M30X35T2CAP ALUM 15000UF 20% 25V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 15000 µF | ±20% | 25 V | 33mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.13 A @ 120 Hz | 3.3804 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
KMH25VN183M25X50T2CAP ALUM 18000UF 20% 25V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 18000 µF | ±20% | 25 V | 28mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.54 A @ 120 Hz | 3.8232 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.969" (50.00mm) | - | Through Hole | |
|
KMH25VN223M30X45T2CAP ALUM 22000UF 20% 25V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 22000 µF | ±20% | 25 V | 23mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.04 A @ 120 Hz | 4.3632 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
KMH25VN333M35X50T2CAP ALUM 33000UF 20% 25V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 33000 µF | ±20% | 25 V | 15mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.39 A @ 120 Hz | 5.8212 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
KMH35VS332M22X25T2CAP ALUM 3300UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 3300 µF | ±20% | 35 V | 126mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.512 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
KMH35VN392M22X30T2CAP ALUM 3900UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 3900 µF | ±20% | 35 V | 106mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 120 Hz | 1.6956 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
KMH35VS472M22X30T2CAP ALUM 4700UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 4700 µF | ±20% | 35 V | 88mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 1.8576 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

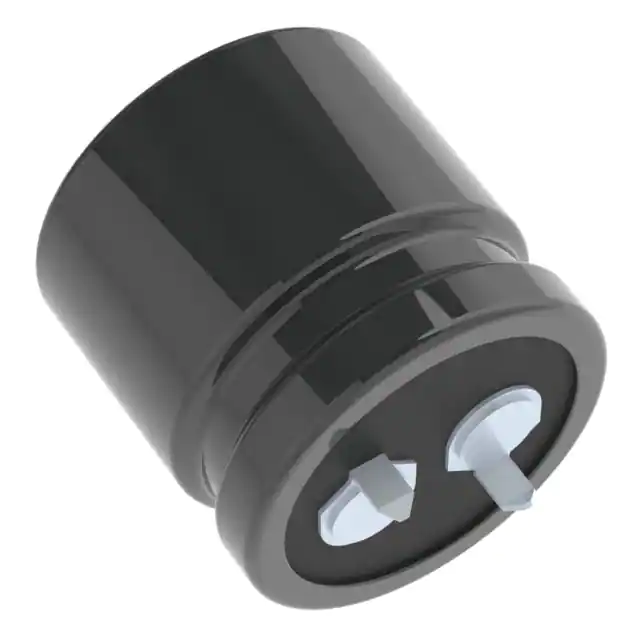

KMH35VS472M25X25T2CAP ALUM 4700UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 4700 µF | ±20% | 35 V | 88mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 1.944 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 0.984" (25.00mm) | - | Through Hole | |
|
KMH35VS562M22X35T2CAP ALUM 5600UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 5600 µF | ±20% | 35 V | 74mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.106 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
KMH35VS562M25X30T2CAP ALUM 5600UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 5600 µF | ±20% | 35 V | 74mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.96 A @ 120 Hz | 2.1168 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.181" (30.00mm) | - | Through Hole | |
|
KMH35VS682M22X40T2CAP ALUM 6800UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 6800 µF | ±20% | 35 V | 61mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.376 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
KMH35VS822M25X40T2CAP ALUM 8200UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 8200 µF | ±20% | 35 V | 51mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.53 A @ 120 Hz | 2.7324 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
KMH35VN103M25X45T2CAP ALUM 10000UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 10000 µF | ±20% | 35 V | 41mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.87 A @ 120 Hz | 3.0996 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
KMH35VN103M30X35T2CAP ALUM 10000UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 10000 µF | ±20% | 35 V | 41mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.132 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole |
