Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KMH35VN123M25X50T2CAP ALUM 12000UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 12000 µF | ±20% | 35 V | 35mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.24 A @ 120 Hz | 3.4992 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.969" (50.00mm) | - | Through Hole | |
|
KMH35VN153M30X45T2CAP ALUM 15000UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 15000 µF | ±20% | 35 V | 28mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.72 A @ 120 Hz | 4.0176 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

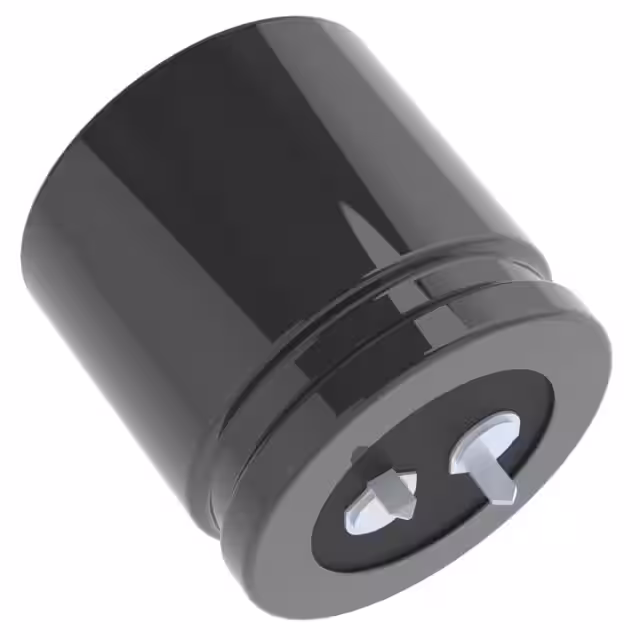

KMH35VS153M35X35T2CAP ALUM 15000UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 15000 µF | ±20% | 35 V | 28mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.67 A @ 120 Hz | 3.9636 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
KMH35VN223M35X50T2CAP ALUM 22000UF 20% 35V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 22000 µF | ±20% | 35 V | 19mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.92 A @ 120 Hz | 5.3136 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
KMH50VN182M22X25T2CAP ALUM 1800UF 20% 50V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 1800 µF | ±20% | 50 V | 184mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.4364 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
KMH50VN272M22X30T2CAP ALUM 2700UF 20% 50V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 2700 µF | ±20% | 50 V | 123mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.69 A @ 120 Hz | 1.8252 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
KMH50VN332M25X30T2CAP ALUM 3300UF 20% 50V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 3300 µF | ±20% | 50 V | 100mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 1.998 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.181" (30.00mm) | - | Through Hole | |
|
KMH50VS392M25X35T2CAP ALUM 3900UF 20% 50V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 3900 µF | ±20% | 50 V | 85mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | 2.3544 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.378" (35.00mm) | - | Through Hole | |
|
KMH50VN562M30X35T2CAP ALUM 5600UF 20% 50V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 5600 µF | ±20% | 50 V | 59mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.76 A @ 120 Hz | 2.9808 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
KMH50VS682M30X40T2CAP ALUM 6800UF 20% 50V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 6800 µF | ±20% | 50 V | 49mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.564 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
KMH50VS822M30X45T2CAP ALUM 8200UF 20% 50V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 8200 µF | ±20% | 50 V | 40mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 3.888 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
KMH50VS822M35X35T2CAP ALUM 8200UF 20% 50V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 8200 µF | ±20% | 50 V | 40mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.55 A @ 120 Hz | 3.834 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
KMH50VS103M30X50T2CAP ALUM 10000UF 20% 50V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 10000 µF | ±20% | 50 V | 33mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.04 A @ 120 Hz | 4.3632 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
KMH50VS103M35X40T2CAP ALUM 10000UF 20% 50V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 10000 µF | ±20% | 50 V | 33mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.03 A @ 120 Hz | 4.3524 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
KMH50VS123M35X45T2CAP ALUM 12000UF 20% 50V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 12000 µF | ±20% | 50 V | 28mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.55 A @ 120 Hz | 4.914 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
KMH63VS122M22X25T2CAP ALUM 1200UF 20% 63V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 1200 µF | ±20% | 63 V | 207mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.428 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
KMH63VN152M22X25T2CAP ALUM 1500UF 20% 63V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 1500 µF | ±20% | 63 V | 166mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.596 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
KMH63VN182M22X30T2CAP ALUM 1800UF 20% 63V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 1800 µF | ±20% | 63 V | 138mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.51 A @ 120 Hz | 1.812 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
KMH63VN272M25X35T2CAP ALUM 2700UF 20% 63V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 2700 µF | ±20% | 63 V | 92mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.99 A @ 120 Hz | 2.388 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.378" (35.00mm) | - | Through Hole | |
|
KMH63VS272M22X40T2CAP ALUM 2700UF 20% 63V SNAP TH |
0 |
|
- |
KMH | Tray | Obsolete | 2700 µF | ±20% | 63 V | 92mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.97 A @ 120 Hz | 2.364 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole |
