Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1206C201MGGACTUCAP CER SMD 1206 200PF 20% 2KV C |
1,670 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 200 pF | ±20% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.069" (1.75mm) | - | - |
-2,70mm.jpg)
|
QMK325BJ224KN-TCAP CER 0.22UF 250V X5R 1210 |
1,641 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 250V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.083" (2.10mm) | - | - |
|
C322C102J5G5TACAP CER 1000PF 50V NP0 RADIAL |
1,487 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 1000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.260" (6.60mm) | - | 0.200" (5.08mm) | Formed Leads |
|
C320C102J5G5TACAP CER 1000PF 50V C0G/NP0 RAD |
1,420 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 1000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.290" (7.36mm) | - | 0.100" (2.54mm) | Straight |
|
CC1206KKX7RBBB333CAP CER 0.033UF 500V X7R 1206 |
1,348 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.057" (1.45mm) | - | - |
|
CC45SL3JD120JYGNACAP CER 12PF 6KV SL RADIAL |
1,173 |
|
Datasheet |
CC45 | Bulk | Active | 12 pF | ±5% | 6000V (6kV) | SL | -25°C ~ 125°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.453" (11.50mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
|
CL31B106KOHVPJECAP CER 10UF 16V X7R 1206 |
73,084 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 10 µF | ±10% | 16V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC, Epoxy | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
S331K25X5FN63L6RCAP CER 330PF 1KV X5F RADIAL |
50,329 |
|
Datasheet |
S | Bulk | Active | 330 pF | ±10% | 1000V (1kV) | X5F | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial, Disc | - | - | - | - | - |
|
D471K25X5FL63L6RCAP CER 470PF 500V X5F RADIAL |
39,870 |
|
Datasheet |
D | Bulk | Active | 470 pF | ±10% | 500V | X5F | -55°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.256" Dia (6.50mm) | - | - | 0.252" (6.40mm) | Straight |
.JPG)
|

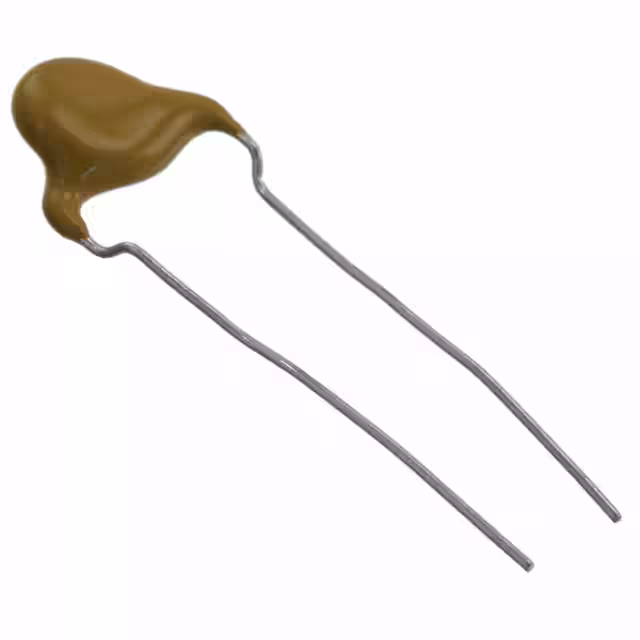

VY2222M35Y5US63V0CAP CER 2200PF 440VAC Y5U RADIAL |
34,903 |
|
Datasheet |
VY2 | Bulk | Active | 2200 pF | ±20% | 440VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.354" Dia (9.00mm) | 0.512" (13.00mm) | - | 0.394" (10.00mm) | Formed Leads - Kinked |
.JPG)
|
VY2222M35Y5US6BV7CAP CER 2200PF 440VAC Y5U RADIAL |
32,016 |
|
Datasheet |
VY2 | Bulk | Active | 2200 pF | ±20% | 440VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.354" Dia (9.00mm) | 0.512" (13.00mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
1C20X7R103K050BCAP CER 10000PF 50V X7R RADIAL |
30,444 |
|
Datasheet |
Monolythic®, 1C20 | Bulk | Active | 10000 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.250" (6.35mm) | - | 0.200" (5.08mm) | Straight |
-3,20x1,60x0,88mm.jpg)
|
C1206C471J1GACAUTOCAP CER 470PF 100V C0G/NP0 1206 |
29,721 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 470 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0402C681J1GACTUCAP CER 680PF 100V C0G/NP0 0402 |
28,345 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 680 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
.jpg)
|
CGA3E2C0G1H103J080ADCAP CER 10000PF 50V 0603 EPOXY |
25,375 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 10000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Epoxy Mountable | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
-0,95mm.jpg)
|
GRM319C81C106KA12DCAP CER 10UF 16V X6S 1206 |
20,610 |
|
Datasheet |
GRM | Tape & Reel (TR) | Not For New Designs | 10 µF | ±10% | 16V | X6S | -55°C ~ 105°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.95mm) | - | - |
|
|
KGM03ACG1E150GHCAP CER 15PF 25V C0G/NP0 0201 |
15,990 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 15 pF | ±2% | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
-0,55mm.jpg)
|
GCQ1555C1H6R8WB01DCAP CER 6.8PF 50V C0G/NP0 0402 |
15,969 |
|
Datasheet |
GCQ | Tape & Reel (TR) | Active | 6.8 pF | ±0.05pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | RF, Microwave, High Frequency, Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
C0805X102J5GACTUCAP CER 1000PF 50V C0G/NP0 0805 |
15,187 |
|
Datasheet |
SMD Comm C0G Flex | Tape & Reel (TR) | Active | 1000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|

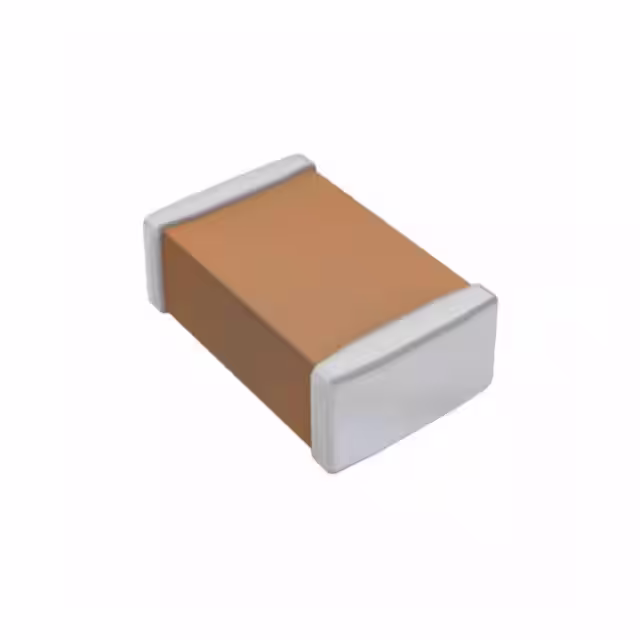

CL21X106KAYQNWECAP CER 10UF 25V X6S 0805 |
14,642 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 10 µF | ±10% | 25V | X6S | -55°C ~ 105°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
