Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCE5C2A330J0A2H03BCAP CER 33PF 100V NP0 RADIAL |
1,749 |
|
Datasheet |
RCE | Bulk | Active | 33 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.138" (3.50mm) | - | 0.098" (2.50mm) | Straight |
|
|
RCE5C1H470J0A2H03BCAP CER 47PF 50V NP0 RADIAL |
1,726 |
|
Datasheet |
RCE | Bulk | Active | 47 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.138" (3.50mm) | - | 0.098" (2.50mm) | Straight |
|
FG24C0G2W332JNT06CAP CER 3300PF 450V C0G RADIAL |
1,706 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 3300 pF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads |
|
C1210C221KFRACTUCAP CER 220PF 1.5KV X7R 1210 |
1,690 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 220 pF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
|
C320C102J2G5TACAP CER 1000PF 200V NP0 RADIAL |
1,513 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 1000 pF | ±5% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.290" (7.36mm) | - | 0.100" (2.54mm) | Straight |
-2,80mm-C-Series.jpg)
|
C3225X7R2A474M200AACAP CER 0.47UF 100V X7R 1210 |
1,501 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.47 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|

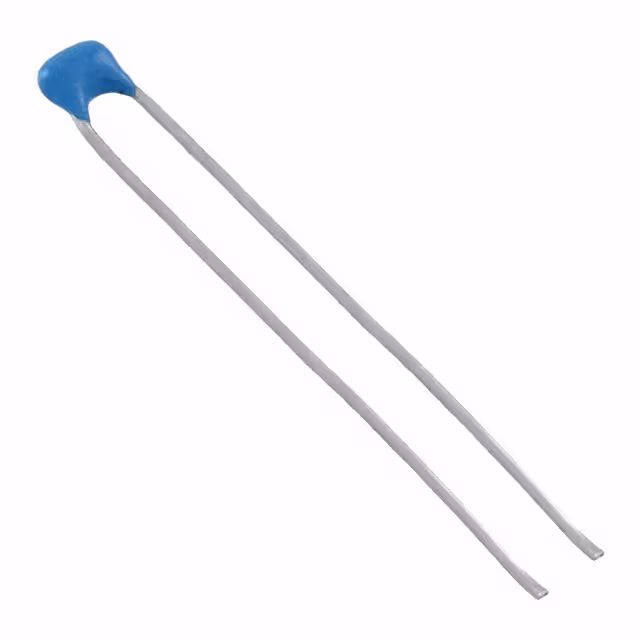

RCE5C1H120J0A2H03BCAP CER 12PF 50V NP0 RADIAL |
1,391 |
|
Datasheet |
RCE | Bulk | Active | 12 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.138" L x 0.098" W (3.50mm x 2.50mm) | 0.138" (3.50mm) | - | 0.098" (2.50mm) | Straight |
|
|
GCJ32QR7LV683KW01LCAP CER 0.068UF 630V X7R 1210 |
1,164 |
|
Datasheet |
GCJ | Tape & Reel (TR) | Active | 0.068 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.059" (1.50mm) | - | - |
-3,20x1,60x1,35mm.jpg)
|
C1206C680KCGAC7800CE SMD 1206 68PF 10% COG 500V CO |
1,130 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 68 pF | ±10% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.043" (1.10mm) | - | - |
|
RDE5C1H332J0P1H03BCAP CER 3300PF 50V NP0 RADIAL |
1,047 |
|
Datasheet |
RDE | Bulk | Active | 3300 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.236" (6.00mm) | - | 0.098" (2.50mm) | - |
|
SR151A471JAACAP CER 470PF 100V C0G/NP0 RAD |
1,045 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 470 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.150" (3.81mm) | - | 0.100" (2.54mm) | Straight |
|
SR211A330JARCAP CER 33PF 100V NP0 RADIAL |
1,035 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 33 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
|
VJ0402D470JXAAJCAP CER 47PF 50V C0G/NP0 0402 |
151,519 |
|
Datasheet |
VJ HIFREQ | Tape & Reel (TR) | Active | 47 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.61mm) | - | - |
|
|
CL31B105KCHVPJECAP CER 1UF 100V X7R 1206 |
80,970 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC, Epoxy | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.063" (1.60mm) | - | - |
-3,20x2,50x0,88mm.jpg)
|
C1210C103K1RAC7800CAP CER 10000PF 100V X7R 1210 |
60,110 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 10000 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.035" (0.88mm) | - | - |
|
S681K29X7RN63L6RCAP CER 680PF 1KV X7R RADIAL |
19,750 |
|
Datasheet |
S | Bulk | Active | 680 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.453" (11.50mm) | - | 0.197" (5.00mm) | Straight |
-1,00x0,50x0,55mm.jpg)
|
C0402C100C5GACAUTOSMD AUTO C0G, CERAMIC, 10 PF, 2% |
17,900 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 10 pF | ±0.25pF | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
C751U222MTWDBAWL25CAP CER 2200PF 440VAC Y5U RADIAL |
14,309 |
|
Datasheet |
KJN SFTY X1-440 Y1-250 | Bulk | Active | 2200 pF | ±20% | 440VAC | Y5U (E) | -25°C ~ 85°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.472" Dia (12.00mm) | 0.630" (16.00mm) | - | 0.394" (10.00mm) | Straight |
|
|
KGM32ECG2A472JUCAP CER 4700PF 100V C0G/NP0 1210 |
14,101 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 4700 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.057" (1.45mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C105M5RAC7800CAP CER 1UF 50V X7R 1210 |
13,783 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 1 µF | ±20% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.067" (1.70mm) | - | - |
