Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,20mm-C-Series.jpg)
|
C3216X5R1H225K160ABCAP CER 2.2UF 50V X5R 1206 |
1,263 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 2.2 µF | ±10% | 50V | X5R | -55°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
C323C104K1R5TACAP CER 0.1UF 100V X7R RADIAL |
1,055 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 0.1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Formed Leads |
|
CL31B222KIFXPNECAP CER 2200PF 1KV X7R 1206 |
48,607 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 2200 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | General Purpose | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.055" (1.40mm) | - | - |
-2,80mm-C-Series.jpg)
|
C3225X7R2E224K200AECAP CER 0.22UF 250V X7R 1210 |
20,705 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.098" (2.50mm) | - | - |
-3,20x1,60x1,40mm.jpg)
|
C1206X104KARACAUTOCAP CER 0.1UF 250V X7R 1206 |
18,511 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.055" (1.40mm) | - | - |
|
|
VPDD501W222K1GV001ECAP CER 2200PF 500V X7R 1206 |
17,805 |
|
Datasheet |
HVS-PME | Tape & Reel (TR) | Active | 2200 pF | ±10% | 500V | X7R | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.125" L x 0.062" W (3.18mm x 1.57mm) | - | 0.067" (1.70mm) | - | - |
|

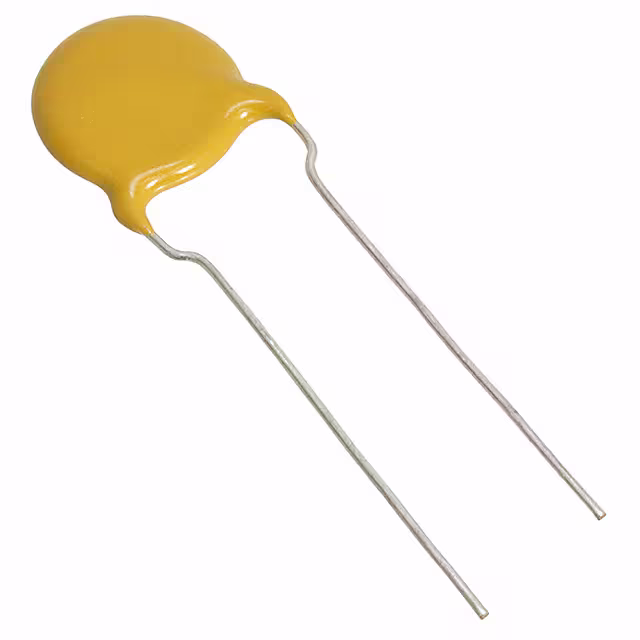

F332K69Y5RN63K7RCAP CER 3300PF 1KV Y5R RADIAL |
13,548 |
|
Datasheet |
F | Bulk | Active | 3300 pF | ±10% | 1000V (1kV) | Y5R | -30°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Through Hole | Radial, Disc | 0.689" Dia (17.50mm) | - | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
VY1332M59Y5UQ63V0CAP CER 3300PF 760VAC Y5U RADIAL |
10,595 |
|
Datasheet |
VY1 | Bulk | Active | 3300 pF | ±20% | 760VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.591" Dia (15.00mm) | 0.748" (19.00mm) | - | 0.394" (10.00mm) | Formed Leads - Kinked |
|
|
C0805C102G5GACTUCAP CER 1000PF 50V C0G/NP0 0805 |
8,857 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 1000 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805X105K8RAC72101.00UF 10.0V |
8,041 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 1 µF | ±10% | 10V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|

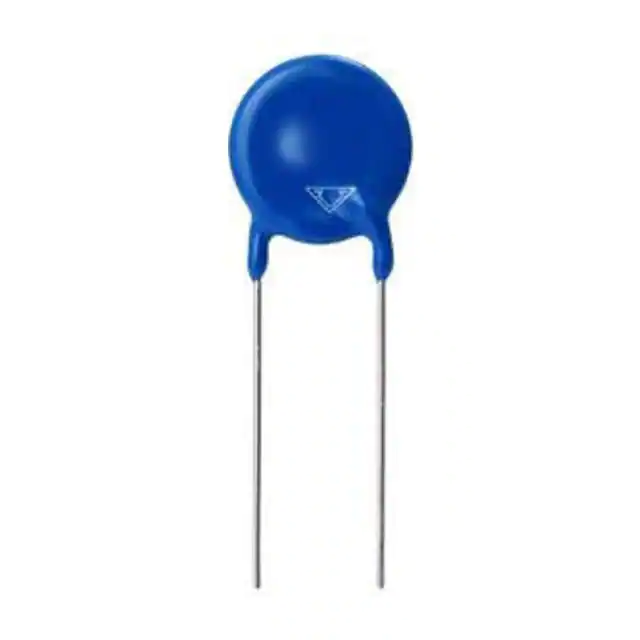

HSZ102KAQBF0KRCAP CER 1000PF 500V Y5T RADIAL |
7,863 |
|
Datasheet |
HSZ | Bulk | Active | 1000 pF | ±10% | 500V | Y5T | -40°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.276" Dia (7.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) | Straight |
|
FA14C0G1H333JNU06CAP CER 0.033UF 50V C0G RADIAL |
7,659 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.033 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
|
|
C0402C680F3GACTUCAP CER 68PF 25V C0G/NP0 0402 |
7,133 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 68 pF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
QSCP251Q390F1GV001TCAP CER 39PF 250V NP0 0603 |
6,760 |
|
Datasheet |
S | Tape & Reel (TR) | Active | 39 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.062" L x 0.032" W (1.57mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
VJ1812A102KXGATCAP CER 1000PF 1KV C0G/NP0 1812 |
6,370 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 1000 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.086" (2.18mm) | - | - |
|
|
VY1392M61Y5UQ63V0CAP CER 3900PF 760VAC Y5U RADIAL |
6,150 |
|
Datasheet |
VY1 | Bulk | Active | 3900 pF | ±20% | 760VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.610" Dia (15.50mm) | 0.768" (19.50mm) | - | 0.394" (10.00mm) | Formed Leads - Kinked |
-Formed-Leads.jpg)
|
FA16X7R2A474KNU06CAP CER 0.47UF 100V X7R RADIAL |
6,114 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.47 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.098" (2.50mm) | Formed Leads |
|
VJ1210Y393KXEATCAP CER 0.039UF 500V X7R 1210 |
6,047 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 0.039 µF | ±10% | 500V | X7R | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.067" (1.70mm) | - | - |
|
CBR08C609BAGACCAP CER 6PF 250V C0G/NP0 0805 |
4,421 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 6 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
FA26C0G2J472JNU06CAP CER 4700PF 630V C0G RADIAL |
4,134 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 4700 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
