Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

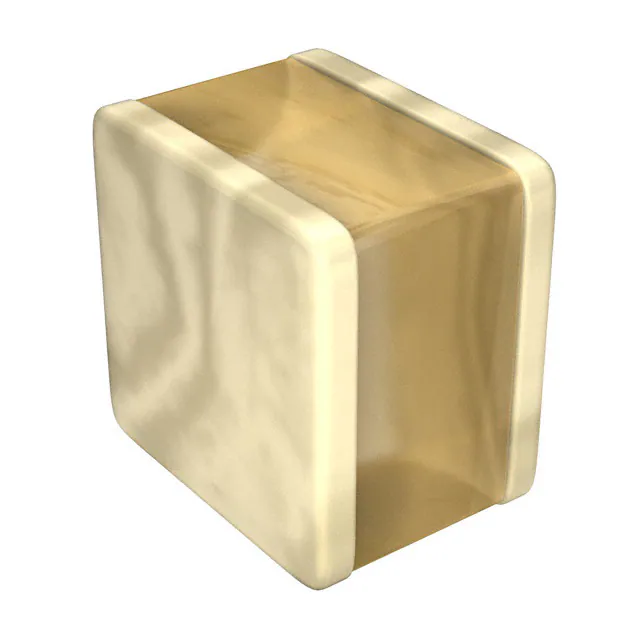

GMA085R71E103MA11TCAP CER 10000PF 25V X7R NONSTND |
18,000 |
|
Datasheet |
GMA | Tray | Active | 10000 pF | ±20% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | Nonstandard SMD | 0.031" L x 0.031" W (0.80mm x 0.80mm) | - | 0.024" (0.60mm) | - | - |
-2,70mm.jpg)
|
GRM32EE70G107ME19KCAP CER 100UF 4V X7U 1210 |
20,234 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 100 µF | ±20% | 4V | X7U | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.106" (2.70mm) | - | - |
|
KGA15ZS70J104MUCAP CER 0.1UF 6.3V X7S 0306 |
13,106 |
|
Datasheet |
LG22 (LGA) | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 6.3V | X7S | -55°C ~ 125°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0306 (0816 Metric) | 0.030" L x 0.063" W (0.76mm x 1.60mm) | - | 0.022" (0.55mm) | - | - |
|
FG11X7S1H106KRT06CAP CER 10UF 50V X7S RADIAL |
8,059 |
|
Datasheet |
FG | Cut Tape (CT) | Not For New Designs | 10 µF | ±10% | 50V | X7S | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.098" (2.50mm) | Formed Leads |
|
|
C0805C393F5JACTUCAP CER 0.039UF 50V U2J 0805 |
6,470 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.039 µF | ±1% | 50V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
-4,70x2,00x2,15mm.jpg)
|
C1808C122GDGAC7800CAP CER 1200PF 1KV C0G/NP0 1808 |
5,953 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 1200 pF | ±2% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.085" (2.15mm) | - | - |
|
|
C1206V683KCRACTUCAP CER 0.068UF 500V X7R 1206 |
5,749 |
|
Datasheet |
ArcShield SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.068 µF | ±10% | 500V | X7R | -55°C ~ 125°C | High Voltage, ArcShield™ | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
-2,00mm-Tan.jpg)
|
1808J3K00102KXTCAP CER 1000PF 3KV X7R 1808 |
4,990 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.079" (2.00mm) | - | - |
|
|
GRJ55DR7LV334KW01KCAP CER 0.33UF 630V X7R 2220 |
3,711 |
|
Datasheet |
GRJ | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.079" (2.00mm) | - | - |
-3,20x1,60x1,10mm.jpg)
|
C1206C911FBGAC7800CAP CER 910PF 630V C0G/NP0 1206 |
1,695 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 910 pF | ±1% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.053" (1.35mm) | - | - |
|
|
UMK325LD105KN-TCAP CER 1UF 50V X5R 1210 |
1,683 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X5R | -55°C ~ 85°C | Low Distortion | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.083" (2.10mm) | - | - |
-3,20x1,60x0,88mm.jpg)
|
C1206C103J1GACAUTOCAP CER 10000PF 100V C0G 1206 |
1,555 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 10000 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
-2,80mm.jpg)
|
1812GC102KAT2ACAP CER 1000PF 2KV X7R 1812 |
1,498 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 1000 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
-3,50mm_BN.jpg)
|
8853522110021CAP CER 680PF 250VAC X7R 1812 |
1,056 |
|
Datasheet |
WCAP-CSSA | Tape & Reel (TR) | Active | 680 pF | ±10% | 250V | X7R | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.091" (2.30mm) | - | - |
-1,79-mm-Tan.jpg)
|
111121K00181JQTCAP CER 180PF 1KV C0G/NP0 1111 |
1,010 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 180 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | General Purpose | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.098" (2.50mm) | - | - |
|
|
111125000471JQTLSMCAP CER 470PF 500V C0G/NP0 1111 |
985 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 470 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | General Purpose | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.098" (2.50mm) | - | - |
|
|
111121K00151JQTCAP CER 150PF 1KV C0G/NP0 1111 |
830 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 150 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | General Purpose | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.098" (2.50mm) | - | - |
|
RDER71H335K3K1H03BCAP CER 3.3UF 50V X7R RADIAL |
603 |
|
Datasheet |
RDE | Bulk | Active | 3.3 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-4,50x3,20x2,7mm.jpg)
|
C1812C102J1GAC7800CAP CER 1000PF 100V C0G/NP0 1812 |
290 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 1000 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
-2,20mm_BN.jpg)
|
8853620100171CAP CER 100PF 250VAC NP0 1808 |
132 |
|
Datasheet |
WCAP-CSSA | Tape & Reel (TR) | Active | 100 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | - | X2 | Safety | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.087" (2.20mm) | - | - |
