Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0,95mm.jpg)
|
GCM3195C1H223JA16DCAP CER 0.022UF 50V C0G/NP0 1206 |
20,808 |
|
Datasheet |
GCM | Tape & Reel (TR) | Not For New Designs | 0.022 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.95mm) | - | - |
|
EMDK500W404M1GV001ECAP CER 0.4UF 50V X7R 1410 |
18,000 |
|
Datasheet |
X2Y® | Tape & Reel (TR) | Active | 0.4 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (X2Y) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1410 (3524 Metric) | 0.140" L x 0.098" W (3.56mm x 2.49mm) | - | 0.070" (1.78mm) | - | - |
|
|
12066C226MAT2A\2.5KCAP CER 22UF 6.3V X7R 1206 |
15,747 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 22 µF | ±20% | 6.3V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.070" (1.78mm) | - | - |
|
|
600S0R8BT250XT4KCAP CER 0.8PF 250V C0G/NP0 0603 |
8,708 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 0.8 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
-3,20x1,60x0,88mm.jpg)
|
C1206C102G2GECAUTOCAP CER 1206 1NF 200V C0G 2% |
8,487 |
|
Datasheet |
ESD SMD Auto C0G | Tape & Reel (TR) | Active | 1000 pF | ±2% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Low ESR | AEC-Q200 | Automotive, ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
 2.5.jpg)
|
CGA6P4C0G2W333J250AACAP CER 0.033UF 450V C0G 1210 |
7,915 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
 15.jpg)
|
GR442QR73D122KW01KCAP CER 1200PF 2KV X7R 1808 |
7,007 |
|
Datasheet |
GR4 | Tape & Reel (TR) | Active | 1200 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.059" (1.50mm) | - | - |
|
|
C1206C271FGGACTUCAP CER 270PF 2000V C0G/NP0 1206 |
4,519 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 270 pF | ±1% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.069" (1.75mm) | - | - |
|
|
C1210C273J2GACTUCAP CER 0.027UF 200V C0GNP0 1210 |
4,365 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.027 µF | ±5% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.055" (1.40mm) | - | - |
|
GA355QR7GF182KW01LCAP CER 1800PF 250VAC X7R 2220 |
3,311 |
|
Datasheet |
GA3 | Tape & Reel (TR) | Active | 1800 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.059" (1.50mm) | - | - |
-2,80mm.jpg)
|
1812SC103KAT2ACAP CER 10000PF 1.5KV X7R 1812 |
2,800 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 10000 pF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C823J5GACAUTOCAP CER 0.082UF 50V C0G/NP0 1210 |
2,041 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 0.082 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.047" (1.20mm) | - | - |
-3,20x1,60x1,35mm.jpg)
|
C1206X225K3RACAUTOCAP CER 2.2UF 25V X7R 1206 |
1,184 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.053" (1.35mm) | - | - |
-3,20x1,60x1,10mm.jpg)
|
C1206C561FCGAC7800CAP CER 560PF 500V C0G/NP0 1206 |
1,088 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 560 pF | ±1% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.043" (1.10mm) | - | - |
|

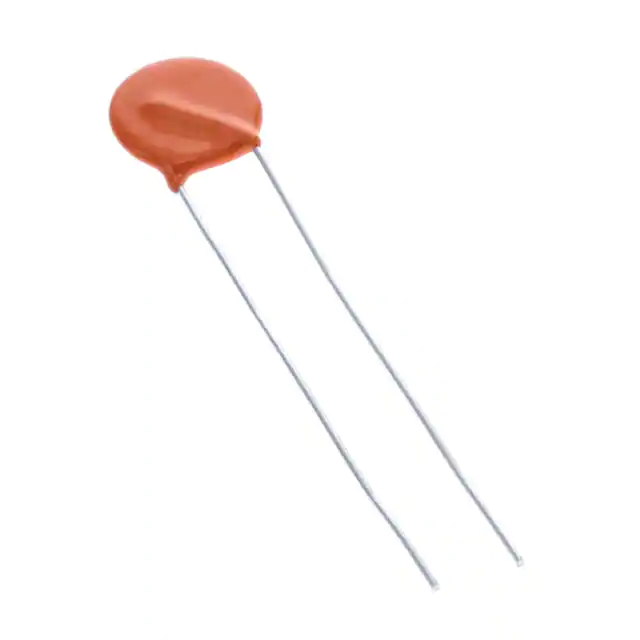

562R5HKZS10CAP CER 10000PF 1KV RADIAL |
997 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 10000 pF | ±10% | 1000V (1kV) | - | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | - | - | - | - | Straight |
|
|
CGA6N4C0G2W223J230AACAP CER 0.022UF 450V C0G 1210 |
459 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.098" (2.50mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812X224K2RAC7800CAP CER 0.22UF 200V X7R 1812 |
434 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 200V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.065" (1.65mm) | - | - |
-2,79mm-Z-Code.jpg)
|
12101C225KAZ4ACAP CER 2.2UF 100V X7R 1210 |
12,398 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.79mm) | - | - |
.jpg)
|
C1210J334K5RACAUTOCAP CER 0.33UF 50V X7R 1210 |
9,238 |
|
Datasheet |
SMD Auto X7R FO | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Open Mode, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.045" (1.15mm) | - | - |
|
|
600S360GT250XT4KCAP CER 36PF 250V NP0 0603 |
7,832 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 36 pF | ±2% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
