Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,70mm-C-Series.jpg)
|
C5750X7R2E474K230KACAP CER 0.47UF 250V X7R 2220 |
120 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.47 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
-1,80mm.jpg)
|
GRT31CR61E106ME01LCAP CER 10UF 25V X5R 1206 |
102 |
|
Datasheet |
GRT | Tape & Reel (TR) | Not For New Designs | 10 µF | ±20% | 25V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
-1,55mm-C-Series.jpg)
|
C4532X7R2A155K230KACAP CER 1.5UF 100V X7R 1812 |
10,250 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 1.5 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
600S1R8BW250XT4KCAP CER 1.8PF 250V NP0 0603 |
9,440 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 1.8 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
VJ1206A471JXGAT5ZCAP CER 470PF 1KV C0G/NP0 1206 |
7,208 |
|
Datasheet |
VJ HVArc Guard™ | Tape & Reel (TR) | Active | 470 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.067" (1.70mm) | - | - |

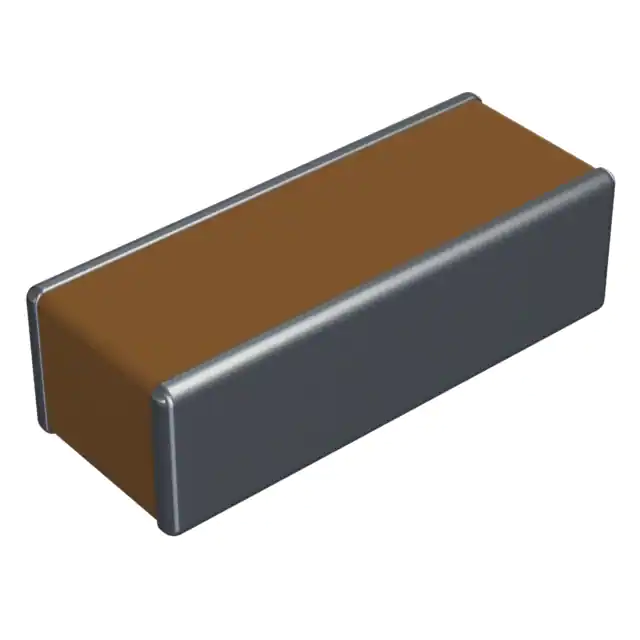

-0,96mm.jpg)
|
06123C103KAT2ACAP CER 10000PF 25V X7R 0612 |
4,010 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10000 pF | ±10% | 25V | X7R | -55°C ~ 125°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0612 (1632 Metric) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | - | 0.037" (0.94mm) | - | - |
|
|
C4532X7T2W474M230KACAP CER 0.47UF 450V X7T 1812 |
3,940 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.47 µF | ±20% | 450V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
-3,20x1,60x1,80mm.jpg)
|
C1206X475K3RAC7800CAP CER 4.7UF 25V X7R 1206 |
3,831 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
 2.5.jpg)
|
CGA6N2C0G2A473J230AACAP CER 0.047UF 100V C0G 1210 |
3,455 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.098" (2.50mm) | - | - |
|
WKO222MCPCF0KRCAP CER 2200PF 440VAC Y5U RADIAL |
2,906 |
|
Datasheet |
WKO | Bulk | Active | 2200 pF | ±20% | 440VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.512" Dia (13.00mm) | 0.630" (16.00mm) | - | 0.295" (7.50mm) | Straight |
|
|
600F7R5JT250XT4KCAP CER 7.5PF 250V NP0 0805 |
2,715 |
|
Datasheet |
ATC 600F | Tape & Reel (TR) | Active | 7.5 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.24mm) | - | 0.051" (1.30mm) | - | - |
|
HMR325AC7475KM-PCAP CER 4.7UF 100V X7S 1210 |
1,687 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 100V | X7S | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
C1812C225M1RACTUCAP CER 2.2UF 100V X7R 1812 |
1,239 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.106" (2.70mm) | - | - |
-2,80mm-C-Series.jpg)
|
C3225X8R2A474K200ABCAP CER 0.47UF 100V X8R 1210 |
1,201 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 100V | X8R | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
.jpg)
|
C1210F105K1RACAUTOCAP CER 1UF 100V X7R 1210 |
1,005 |
|
Datasheet |
SMD Auto X7R FO | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Open Mode | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
C1812C183KFRACTUCAP CER 0.018UF 1.5KV X7R 1812 |
470 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.018 µF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
|
|
C1808X102KGRACTUCAP CER 1000PF 2KV X7R 1808 |
346 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 1000 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
|
|
C1812X105K251TCAP CER 1UF 250V X7R 1812 |
124 |
|
Datasheet |
HVC | Tape & Reel (TR) | Active | 1 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | - | - | - |
|
GRM55DR72E334KW01LCAP CER 0.33UF 250V X7R 2220 |
5,850 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
|
C1206C331FBGACAUTOCAP CER 330PF 630V C0G/NP0 1206 |
4,792 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 330 pF | ±1% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.043" (1.10mm) | - | - |
