Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2.6.jpg)
|
CGA8N4X7T2W474M230KACAP CER 0.47UF 450V X7T 1812 |
2,219 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 450V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
CAN18X563KARACTUCAP CER 1812 56NF 250VAC X7R |
2,093 |
|
Datasheet |
CAN SMD Indust X7R | Tape & Reel (TR) | Active | 0.056 µF | ±10% | 250VAC | X7R | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.055" (1.40mm) | - | - |
|
|
QEDB501Q7R5C1GV001ECAP CER 7.5PF 500V C0G/NP0 1111 |
1,485 |
|
Datasheet |
E | Tape & Reel (TR) | Active | 7.5 pF | ±0.25pF | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, High Voltage | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
C1812C472J1GACTUCAP CER 4700PF 100V C0G/NP0 1812 |
1,051 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 4700 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
-1.6.jpg)
|
CGA8L3X7T2E684K160KACAP CER 0.68UF 250V X7T 1812 |
627 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.68 µF | ±10% | 250V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1210F105K3RACTUCAP CER 1UF 25V X7R 1210 |
503 |
|
Datasheet |
SMD Comm X7R FO | Tape & Reel (TR) | Active | 1 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Open Mode | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.067" (1.70mm) | - | - |
|
KRM31KR72A225KH01LCAP CER MLCC |
391 |
|
Datasheet |
KRM | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | SMD, J-Lead | 0.146" L x 0.073" W (3.70mm x 1.85mm) | 0.114" (2.90mm) | - | - | J-Lead |
|
C331C105K5R5TACAP CER 1UF 50V X7R RADIAL |
330 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Through Hole | Radial | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.360" (9.14mm) | - | 0.250" (6.35mm) | Straight |
|
100A300JW150XTCAP CER 30PF 150V P90 0505 |
14,424 |
|
Datasheet |
Porcelain Superchip® ATC 100A | Tape & Reel (TR) | Active | 30 pF | ±5% | 150V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
-2,80mm.jpg)
|
1812AA102MAT1ACAP CER 1000PF 1KV C0G/NP0 1812 |
3,818 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | ±20% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812X473KBRACAUTOCAP CER 0.047UF 630V X7R 1812 |
3,438 |
|
Datasheet |
SMD Auto X7R HV Flex | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
|
C1210C333KCRACTUCAP CER 0.033UF 500V X7R 1210 |
2,533 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
-2,79mm-Z-Code.jpg)
|
1210DD106KAT2ACAP CER 10UF 35V X5R 1210 |
2,102 |
|
Datasheet |
KGM - X5R | Tape & Reel (TR) | Active | 10 µF | ±10% | 35V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.106" (2.70mm) | - | - |
|
|
KGQ21HCG2D680GTCAP CER 68PF 200V C0G/NP0 0805 |
2,000 |
|
Datasheet |
KGQ | Tape & Reel (TR) | Active | 68 pF | ±2% | 200V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.045" (1.15mm) | - | - |
 2.5.jpg)
|
CGA6P2X8R1E335K250AACAP CER 3.3UF 25V X8R 1210 |
1,526 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 3.3 µF | ±10% | 25V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
CGA6M2X8R1E225K200AACAP CER 2.2UF 25V X8R 1210 |
1,477 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 25V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
CK05BX223KCAP CER 0.022UF 50V BX RADIAL |
903 |
|
Datasheet |
Military, MIL-C-11015, CK05 | Bulk | Active | 0.022 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | - | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
|
|
30LVTD10-RCAP CER 1000PF 400VAC X7R RADIAL |
836 |
|
Datasheet |
Cera-Mite 30LV | Bulk | Active | 1000 pF | ±10% | 400VAC | X7R | -30°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.366" Dia (9.30mm) | 0.492" (12.50mm) | - | 0.252" (6.40mm) | Straight |
-2,03mm.jpg)
|
1808HC102MAZ1ACAP CER 1000PF 3KV X7R 1808 |
833 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 1000 pF | ±20% | 3000V (3kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.181" L x 0.079" W (4.60mm x 2.00mm) | - | 0.087" (2.20mm) | - | - |
.jpg)
|

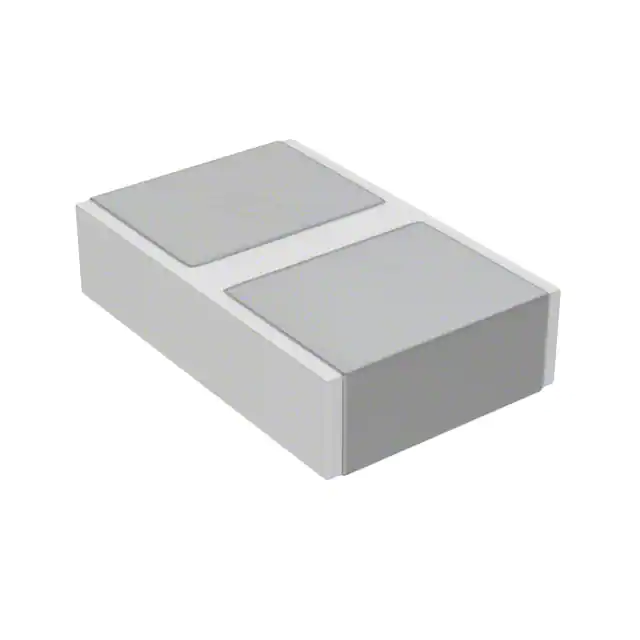

LGC26D105MAT2S1CAP CER 1UF 6.3V X5R 0805 |
584 |
|
Datasheet |
LGC2 (LGA) | Tape & Reel (TR) | Active | 1 µF | ±20% | 6.3V | X5R | -55°C ~ 85°C | Low ESL (Multi-Terminal) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.081" L x 0.052" W (2.06mm x 1.32mm) | - | 0.022" (0.55mm) | - | - |
