Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-4,70x2,00x2,15mm.jpg)
|
C1808C470KHGAC7800CAP CER 47PF 3KV C0G/NP0 1808 |
2,054 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 47 pF | ±10% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
|
C1812C563J5GACTUCAP CER 0.056UF 50V C0G/NP0 1812 |
938 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.056 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
GCG32EC71E226KE01LCAP CER 22UF 25V X7S 1210 |
767 |
|
Datasheet |
GCG | Tape & Reel (TR) | Active | 22 µF | ±10% | 25V | X7S | -55°C ~ 125°C | Epoxy Mountable | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
VJ1111D5R6CXEQJHTCAP CER 5.6PF 500V C0G/NP0 1111 |
680 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 5.6 pF | ±0.25pF | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
SMDY1392MY5UDRSMDY1 X760Y500VAC 3900PF 20% Y5U |
630 |
|
Datasheet |
SMD Y1 | Tape & Reel (TR) | Active | 3900 pF | ±20% | 760VAC | Y5U | -55°C ~ 125°C | Flame Retardant | X1, Y1 | Safety | - | Surface Mount, SLCC | 2-SMD | 0.638" L x 0.575" W (16.20mm x 14.60mm) | - | 0.157" (4.00mm) | - | Gull Wing |
|
|
C1812C823J5GACTUCAP CER 0.082UF 50V C0G/NP0 1812 |
521 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.082 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
 2.5.jpg)
|
CGA6N2NP02A683J230AACAP CER 0.068UF 100V NP0 1210 |
436 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.068 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
-2,80mm-C-Series.jpg)
|
C3225X8L1C226M250ACCAP CER 22UF 16V X8L 1210 |
399 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 22 µF | ±20% | 16V | X8L | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|

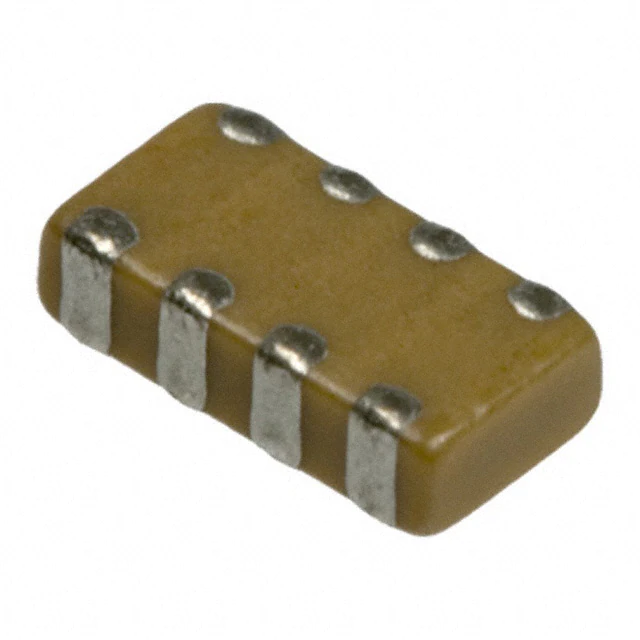

W3L1ZC105MAT1ACAP CER 1UF 10V X7R 0612 |
6,497 |
|
Datasheet |
IDC, W | Tape & Reel (TR) | Active | 1 µF | ±20% | 10V | X7R | -55°C ~ 125°C | Low ESL (Multi-Terminal) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0612 (1632 Metric) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | - | 0.037" (0.95mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C152JCGAC7800CAP CER 1500PF 500V C0G/NP0 1210 |
5,503 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 1500 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.091" (2.30mm) | - | - |
|
|
C1206C823J5GACTUCAP CER 0.082UF 50V C0G/NP0 1206 |
5,120 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.082 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
600S1R0AW250XT4KCAP CER 1PF 250V NP0 0603 |
4,522 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 1 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
|
C1210C334J3JACTUCAP CER 0.33UF 25V U2J 1210 |
2,751 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.33 µF | ±5% | 25V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
|
KTS501B474M55N0T00CAP CER 0.47UF 500V X7R 2220 |
1,018 |
|
Datasheet |
NTS | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 500V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | - | - | - |
-1.8.jpg)
|
CGA9M2X7R1H475K200KACAP CER 4.7UF 50V X7R 2220 |
499 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 4.7 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
C320C334K5R5TACAP CER 0.33UF 50V X7R RADIAL |
433 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 0.33 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | - | 0.290" (7.36mm) | 0.100" (2.54mm) | Straight |
-4,50x3,20x2,7mm.jpg)
|
C1812C104J2GAC7800CAP CER 0.1UF 200V C0G/NP0 1812 |
313 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
|
|
600L270GT200T4KCAP CER 27PF 200V C0G/NP0 0402 |
7,230 |
|
Datasheet |
ATC 600L | Tape & Reel (TR) | Active | 27 pF | ±2% | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.60mm) | - | - |
.jpg)
|
600S100GW250XTCAP CER 10PF 250V NP0 0603 |
6,420 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 10 pF | ±2% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
|
600S300GT250XTCAP CER 30PF 250V C0G/NP0 0603 |
3,773 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 30 pF | ±2% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
