Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
600L3R9AW200T4KCAP CER 3.9PF 200V NP0 0402 |
13,534 |
|
Datasheet |
ATC 600L | Tape & Reel (TR) | Active | 3.9 pF | ±0.05pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.60mm) | - | - |
-2.6.jpg)
|
CGA8N4X7T2W474K230KECAP CER 0.47UF 450V X7T 1812 |
11,866 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 450V | X7T | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
VJ1111D2R2BXRAJCAP CER 2.2PF 1.5KV C0G/NP0 1111 |
7,015 |
|
Datasheet |
VJ QUAD HIFREQ | Tape & Reel (TR) | Active | 2.2 pF | ±0.1pF | 1500V (1.5kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
-2,80mm.jpg)
|
1812AA821JAT1ACAP CER 820PF 1KV C0G/NP0 1812 |
4,942 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 820 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812X471KGRAC7800CAP CER 470PF 2KV X7R 1812 |
4,687 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 470 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
1812AA101JAT1ACAP CER 100PF 1KV C0G/NP0 1812 |
3,592 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.057" (1.45mm) | - | - |
-1,50mm.jpg)
|

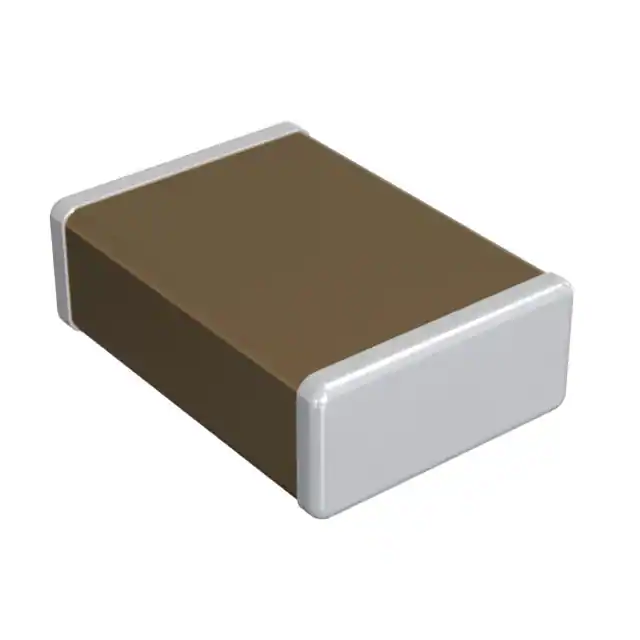

GRJ43DR72E334KWJ1KCAP CER 0.33UF 250V X7R 1812 |
2,452 |
|
Datasheet |
GRJ | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.079" (2.00mm) | - | - |
|
CGA6N1C0G3A822J230ACCAP CER 8200PF 1KV C0G/NP0 1210 |
1,570 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 8200 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | AEC-Q200 | Automotive, SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.098" (2.50mm) | - | - |
.jpg)
|
1206N103K500NTCAP CER 10000PF 50V C0G/NP0 1206 |
1,527 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10000 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.125" L x 0.060" W (3.18mm x 1.52mm) | - | 0.064" (1.63mm) | - | - |
-2.2.jpg)
|
CGA8N4X7T2W474M230KECAP CER 0.47UF 450V X7T 1812 |
1,400 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 450V | X7T | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.102" (2.60mm) | - | - |
|
|
C1808C151KGRACTUCAP CER 150PF 2KV X7R 1808 |
975 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 150 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
-2,70mm-C-Series.jpg)
|
C5750X7R1C226M280KACAP CER 22UF 16V X7R 2220 |
879 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 22 µF | ±20% | 16V | X7R | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.122" (3.10mm) | - | - |
|
|
1812AA101JAT2ACAP CER 100PF 1KV C0G/NP0 1812 |
798 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 100 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.057" (1.45mm) | - | - |
-1,30mm.jpg)
|
CDR31BP150BJUS7185CAP CER 15PF 100V BP 0805 |
260 |
|
Datasheet |
Military, MIL-PRF-55681, CDR31 | Tape & Reel (TR) | Active | 15 pF | ±5% | 100V | BP | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.051" (1.30mm) | - | - |
|
|
1812AA102JAT2ACAP CER 1000PF 1KV C0G/NP0 1812 |
130 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 1000 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.087" (2.21mm) | - | - |
.jpg)
|
C1210R105K5RACT500CAP CER 1UF 50V X7R 1210 |
1,000 |
|
Datasheet |
SMD Indust X7R HT175C | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 175°C | Soft Termination, High Temperature | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.091" (2.30mm) | - | - |
|
|
FK22C0G2J223JN000CAP CER 0.022UF 630V C0G RADIAL |
18,896 |
|
Datasheet |
FK | Bulk | Not For New Designs | 0.022 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.157" W (7.50mm x 4.00mm) | 0.315" (8.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
600S620FW250XT4KCAP CER 62PF 250V NP0 0603 |
3,174 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 62 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
|
C1812C473JCRACTUCAP CER 0.047UF 500V X7R 1812 |
2,726 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
|
|
18125C105JAT2ACAP CER 1UF 50V X7R 1812 |
2,500 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 1 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.21mm) | - | - |
