Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VJ1111D240JXEQJHTCAP CER 24PF 500V C0G/NP0 1111 |
5,583 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 24 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
VJ1111D220JXEQJHTCAP CER 22PF 500V C0G/NP0 1111 |
4,582 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 22 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
.jpg)
|
600S1R3AT250XTCAP CER 1.3PF 250V NP0 0603 |
2,698 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 1.3 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
-1,79-mm-Tan.jpg)
|
111122K06P20BQTAF9LMCAP CER 6.2PF 2KV C0G/NP0 1111 |
1,957 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 6.2 pF | ±0.1pF | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
|
|
111122K07P50BQTAF9LMCAP CER 7.5PF 2KV C0G/NP0 1111 |
1,769 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 7.5 pF | ±0.1pF | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
|
|
111122K09P10BQTAF9LMCAP CER 9.1PF 2KV C0G/NP0 1111 |
640 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 9.1 pF | ±0.1pF | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
|
C322C111JDG5TACAP CER 110PF 1KV NP0 RADIAL |
135 |
|
Datasheet |
GoldMax 300 Comm C0G HV | Bulk | Active | 110 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.150" W (5.08mm x 3.81mm) | 0.260" (6.60mm) | - | 0.200" (5.08mm) | Formed Leads |
-2,70mm.jpg)
|
GRM32ER71A226ME20LCAP CER 22UF 10V X7R 1210 |
16,667 |
|
Datasheet |
GRM | Tape & Reel (TR) | Not For New Designs | 22 µF | ±20% | 10V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.106" (2.70mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C105J5NAC7800CAP CER 1UF 50V X8L 1210 |
4,265 |
|
Datasheet |
SMD Comm X8L HT150C | Tape & Reel (TR) | Active | 1 µF | ±5% | 50V | X8L | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
|
|
GRM32ER60E337ME05KCAP CER 330UF 2.5V X5R 1210 |
3,892 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 330 µF | ±20% | 2.5V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
C320C751JCG5TA7303CAP CER 750PF 500V C0G/NP0 RAD |
1,275 |
|
Datasheet |
GoldMax 300 Comm C0G HV | Tape & Reel (TR) | Active | 750 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.150" W (5.08mm x 3.81mm) | 0.290" (7.36mm) | - | 0.100" (2.54mm) | Straight |
|
|
C322C102JCG5TACAP CER 1000PF 500V NP0 RADIAL |
331 |
|
Datasheet |
GoldMax 300 Comm C0G HV | Bulk | Active | 1000 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.150" W (5.08mm x 3.81mm) | 0.260" (6.60mm) | - | 0.200" (5.08mm) | Formed Leads |
-2.3.jpg)
|
CGA9N3X7R2E105M230KECAP CER 1UF 250V X7R 2220 |
4,595 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 1 µF | ±20% | 250V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.102" (2.60mm) | - | - |
-3,20x1,60x1,35mm.jpg)
|
C1206X102JDGAC7800CAP CER 1000PF 1KV C0G/NP0 1206 |
3,140 |
|
Datasheet |
SMD Comm C0G HV Flex | Tape & Reel (TR) | Active | 1000 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.069" (1.75mm) | - | - |
|
|
HMJ325B7105KNHTCAP CER 1UF 100V X7R 1210 |
2,838 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.083" (2.10mm) | - | - |
|

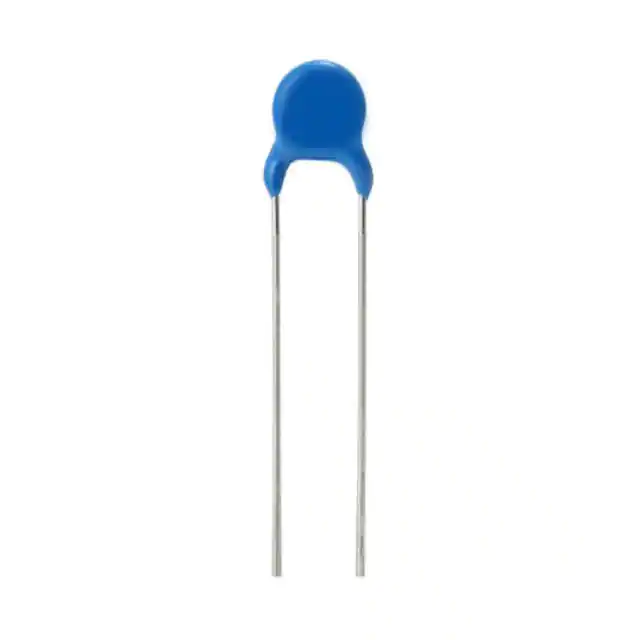

HAX223SBACFGKRCAP CER 0.022UF 1KV RADIAL |
1,231 |
|
Datasheet |
HAX | Bulk | Active | 0.022 µF | -20%, +50% | 1000V (1kV) | - | -40°C ~ 85°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.709" Dia (18.00mm) | 0.827" (21.00mm) | - | 0.295" (7.50mm) | Straight |
-4,50x6,40x1,55mm.jpg)
|

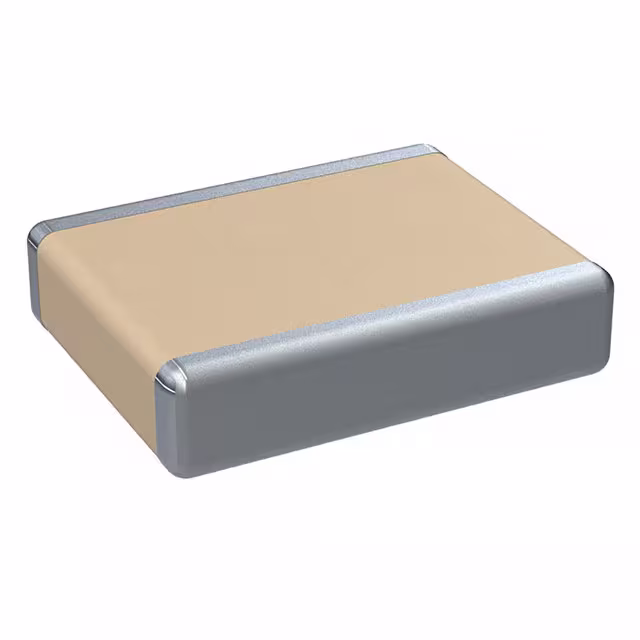

C1825C152JGGAC7800CAP CER 1500PF 2KV C0G/NP0 1825 |
1,181 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 1500 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
|
C1210C101GCGACTUCAP CER 100PF 500V NP0 1210 |
1,073 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 100 pF | ±2% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
-2,80mm-C-Series.jpg)
|
C3225C0G3A682J200AECAP CER 6800PF 1KV C0G/NP0 1210 |
780 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 6800 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.091" (2.30mm) | - | - |
|
|
C322C431JDG5TACAP CER 430PF 1KV NP0 RADIAL |
411 |
|
Datasheet |
GoldMax 300 Comm C0G HV | Bulk | Active | 430 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.150" W (5.08mm x 3.81mm) | 0.260" (6.60mm) | - | 0.200" (5.08mm) | Formed Leads |
