Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C330C102JHR5HACAP CER 1000PF 3KV X7R RADIAL |
112 |
|
Datasheet |
GoldMax 300 Comm X7R HV | Bulk | Active | 1000 pF | ±5% | 3000V (3kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.420" (10.66mm) | - | 0.200" (5.08mm) | Straight |
|
C1210C473J5GACTUCAP CER 0.047UF 50V C0G/NP0 1210 |
4,525 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.035" (0.88mm) | - | - |
.jpg)
|
600S5R1AW250XTCAP CER 5.1PF 250V C0G/NP0 0603 |
1,886 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 5.1 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812C102FBGAC7800CAP CER 1000PF 630V C0G/NP0 1812 |
827 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 1000 pF | ±1% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
|
2225HC472KAT2ACAP CER 4700PF 3KV X7R 2225 |
480 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 4700 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.087" (2.21mm) | - | - |
.jpg)
|
GRT32DR61C226KE01LCAP CER 22UF 16V X5R 1210 |
2,263 |
|
Datasheet |
GRT | Tape & Reel (TR) | Not For New Designs | 22 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
-2,00mm.jpg)
|
2220PC474KAT1ACAP CER 0.47UF 250V X7R 2220 |
2,988 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.079" (2.00mm) | - | - |
|
LS1808N681K302NTMCAP CER 680PF 250VAC C0G 1808 |
2,770 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 680 pF | ±10% | 250VAC | C0G, NP0 | -55°C ~ 125°C | - | X2, Y3 | Safety | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.180" L x 0.080" W (4.57mm x 2.03mm) | - | 0.065" (1.65mm) | - | - |
|
|
SR307C473KARCAP CER 0.047UF 500V X7R RADIAL |
1,993 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 0.047 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
-3,30mm.jpg)
|
2220HC472KAT1ACAP CER 4700PF 3KV X7R 2220 |
1,393 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 4700 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.130" (3.30mm) | - | - |
|
564R75GAD10CAP CER 1000PF 7.5KV Y5U RADIAL |
2,000 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 1000 pF | -20%, +80% | 7500V (7.5kV) | Y5U (E) | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.618" Dia (15.70mm) | 0.807" (20.50mm) | - | 0.500" (12.70mm) | Straight |
|

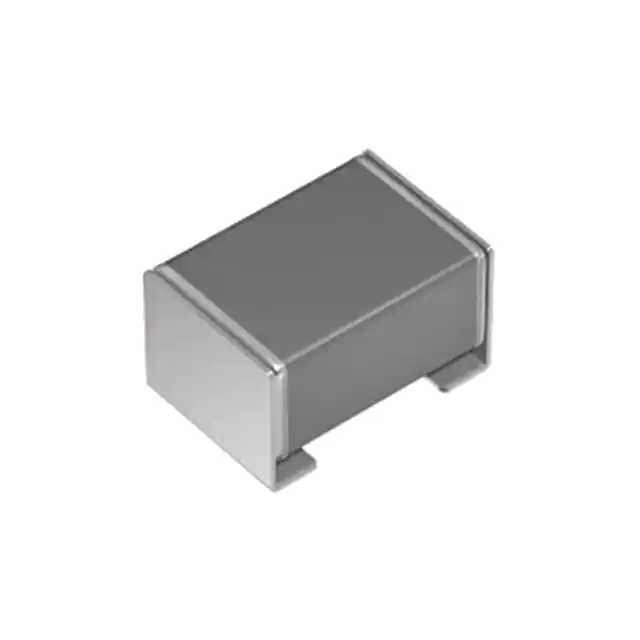

CKG45KC0G2W473J290JHCAP CER 0.047UF 450V C0G/NP0 SMD |
1,372 |
|
Datasheet |
CKG | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.197" L x 0.138" W (5.00mm x 3.50mm) | - | 0.118" (3.00mm) | - | J-Lead |
-2,00x1,20x1,00mm.jpg)
|
C0805X473F3GECAUTOCAP CER 0805 47NF 25V C0G 1% |
12,624 |
|
Datasheet |
ESD SMD Auto C0G | Tape & Reel (TR) | Active | 0.047 µF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive, ESD Protection | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
-Standard-MLCC.jpg)
|
1206Y0500104KNTCAP CER 0.1UF 50V X8R 1206 |
12,387 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | X8R | -55°C ~ 150°C | Soft Termination, High Temperature | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.063" (1.60mm) | - | - |
|
|
C1206T225K4RALTUCAP CER 2.2UF 16V X7R 1206 |
5,078 |
|
Datasheet |
SMD COTS X7R | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | COTS | High Reliability, Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.043" (1.10mm) | - | - |
.jpg)
|
0603BB224K500NGTCAP CER 0.22UF 50V X7R 0603 |
3,687 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Bonding Mountable, Gold Flash Termination | - | SMPS Filtering | - | Surface Mount, MLCC, Epoxy | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
|
C2220C223K5GACAUTOCAP CER 0.022UF 50V C0G/NP0 2220 |
2,017 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.061" (1.55mm) | - | - |
|
|
C1206C472F5GACTUCAP CER 4700PF 50V C0G/NP0 1206 |
17,324 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 4700 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
-1,80mm.jpg)
|
GRT31CC81A226KE01LCAP CER 22UF 10V X6S 1206 |
14,760 |
|
Datasheet |
GRT | Tape & Reel (TR) | Not For New Designs | 22 µF | ±10% | 10V | X6S | -55°C ~ 105°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
HVCC153Y6P681MEAXCAP CER 680PF 15KV Y6P RADIAL |
3,488 |
|
Datasheet |
HVCC | Bulk | Active | 680 pF | ±20% | 15000V (15kV) | Y6P | -30°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.512" Dia (13.00mm) | 0.669" (17.00mm) | - | 0.492" (12.50mm) | Straight |
