Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-3,20mm-Tan.jpg)
|
1812J2K00102KXTCAP CER 1000PF 2KV X7R 1812 |
508 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812Y1K00473KXTCAP CER 0.047UF 1KV X7R 1812 |
285 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
-2,70mm-C-Series.jpg)
|
C5750C0G2J104K280KCCAP CER 0.1UF 630V C0G 2220 |
8,199 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.1 µF | ±10% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.122" (3.10mm) | - | - |
|
C2220X823KFRACAUTOCAP CER 0.082UF 1.5 X7R 2220 |
1,249 |
|
Datasheet |
SMD Auto X7R HV Flex | Tape & Reel (TR) | Active | 0.082 µF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
.jpg)
|
KTS101B685M76N0T00CAP CER 6.8UF 100V X7R 3025 |
684 |
|
Datasheet |
NTS | Tape & Reel (TR) | Active | 6.8 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 3025 (7563 Metric) | 0.295" L x 0.248" W (7.50mm x 6.30mm) | - | 0.138" (3.50mm) | - | - |
|
C1825C183JCGACTUCAP CER 0.018UF 500V C0G 1825 |
472 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 0.018 µF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.071" (1.80mm) | - | - |
|
C340C155M1U5TACAP CER 1.5UF 100V Z5U RADIAL |
248 |
|
Datasheet |
GoldMax 300 Comm Z5U | Bulk | Active | 1.5 µF | ±20% | 100V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.290" L x 0.160" W (7.36mm x 4.07mm) | 0.460" (11.68mm) | - | 0.200" (5.08mm) | Straight |
.jpg)
|
1206E102K501KHTCAP CER 1000PF 500V 1206 |
4,511 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | ±10% | 500V | - | -55°C ~ 200°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.125" L x 0.060" W (3.18mm x 1.52mm) | - | 0.064" (1.63mm) | - | - |
-2,29mm.jpg)
|

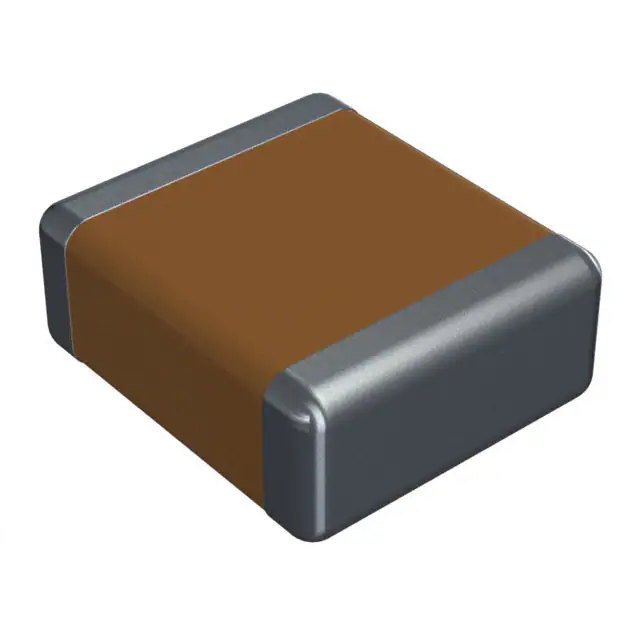

22201C105KAT2ACAP CER 1UF 100V X7R 2220 |
4,051 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.21mm) | - | - |
|
|
2220AC104KAT2ACAP CER 0.1UF 1KV X7R 2220 |
1,330 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
-3,30mm.jpg)
|
2220GC103KAZ1ACAP CER 10000PF 2KV X7R 2220 |
1,084 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 10000 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.130" (3.30mm) | - | - |
|
LS1808N221K302NTMCAP CER 220PF 250VAC C0G 1808 |
5,721 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 220 pF | ±10% | 250VAC | C0G, NP0 | -55°C ~ 125°C | - | X2, Y3 | Safety | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.180" L x 0.080" W (4.57mm x 2.03mm) | - | 0.065" (1.65mm) | - | - |
|
|
GCM32D5C3A682FX01KCAP CER 6800PF 1KV C0G/NP0 1210 |
3,615 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 6800 pF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.079" (2.00mm) | - | - |
|
|
GCM32E5C3A103FX01KCAP CER 10000PF 1KV C0G/NP0 1210 |
3,521 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 10000 pF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.104" (2.65mm) | - | - |
-2.8.jpg)
|
CGA9P1X7S3D103K250KACAP CER 10000PF 2KV X7S 2220 |
2,621 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 10000 pF | ±10% | 2000V (2kV) | X7S | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805C103F1GACAUTOCAP CER 10000PF 100V 0805 |
1,863 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 10000 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
.jpg)
|
800B6R2CT500XT1KCAP CER 6.2PF 500V NP0 1111 |
529 |
|
Datasheet |
ATC 800B | Tape & Reel (TR) | Active | 6.2 pF | ±0.25pF | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
|

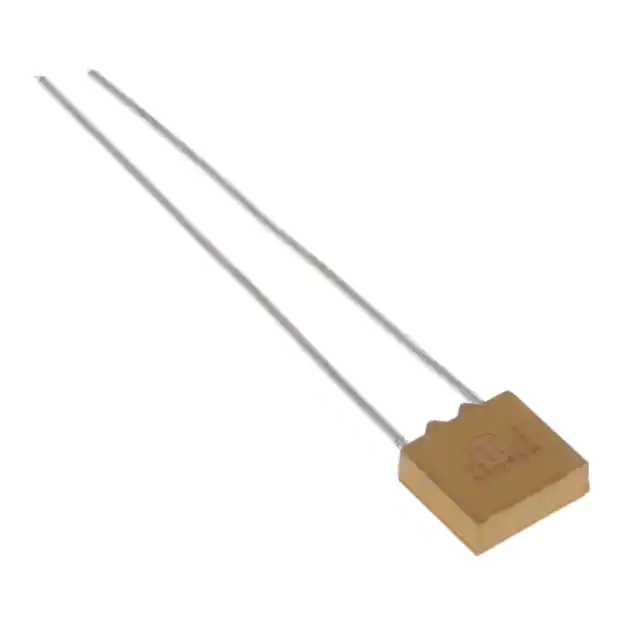

M39014/02-1350VCAP CER 0.1UF 50V BX RADIAL |
117 |
|
Datasheet |
Military, MIL-PRF-39014, CKR06 | Bag | Active | 0.1 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
|
C2225C105K2RACTUCAP CER 1UF 200V X7R 2225 |
2,300 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 1 µF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
|
FA22C0G2E104JRU06CAP CER 0.1UF 250V C0G RADIAL |
1,965 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.1 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
