Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
CGA4J2X5R1A155K125AACAP CER 1.5UF 10V X5R 0805 |
1,333 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 1.5 µF | ±10% | 10V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
-2,20mm-C-Series.jpg)
|
C3216X7R2J152K115AMCAP CER 1500PF 630V X7R 1206 |
1,256 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 1500 pF | ±10% | 630V | X7R | -55°C ~ 125°C | Open Mode | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
|
C1206C273K1RACTUCAP CER 0.027UF 100V X7R 1206 |
1,216 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.027 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
VJ0805Y333JXAPW1BCCAP CER 0.033UF 50V X7R 0805 |
37,476 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.90mm) | - | - |
-1,40mm.jpg)
|
08053D105KAT4ACAP CER 1UF 25V X5R 0805 |
26,583 |
|
Datasheet |
KGM - X5R | Tape & Reel (TR) | Active | 1 µF | ±10% | 25V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|

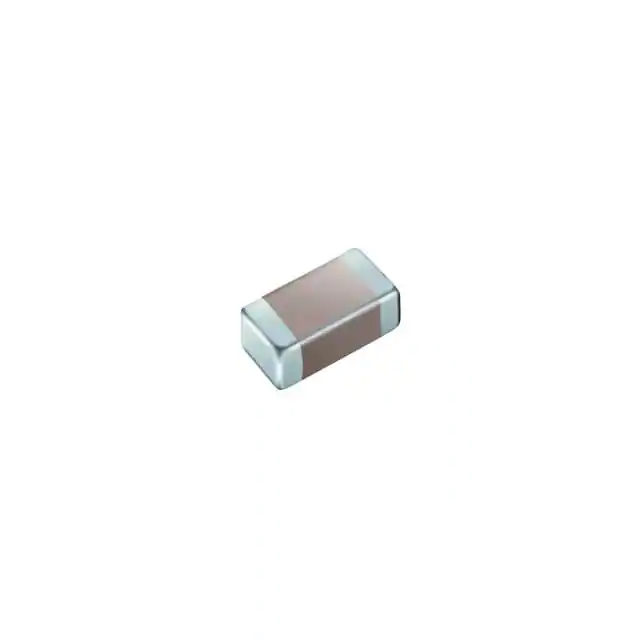

MSAYT105SSD122KFNA01CAP CER 1200PF 25V 0402 |
19,998 |
|
Datasheet |
MSAY | Tape & Reel (TR) | Active | 1200 pF | ±10% | 25V | - | -55°C ~ 125°C | Low Distortion | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
QCCF251Q5R1B1GV001TCAP CER 5.1PF 250V C0G/NP0 0402 |
19,975 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 5.1 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 150°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.61mm) | - | - |
|
|
QCCF251Q6R8B1GV001TCAP CER 6.8PF 250V C0G/NP0 0402 |
19,478 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 6.8 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 150°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.61mm) | - | - |
|
VJ1206A820JXAPW1BCCAP CER 82PF 50V C0G/NP0 1206 |
17,869 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 82 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.90mm) | - | - |
|
|
VJ0805Y223JXAPW1BCCAP CER 0.022UF 50V X7R 0805 |
15,583 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.90mm) | - | - |
|
AC1206JRNPOBBN101CAP CER 100PF 500V C0G/NPO 1206 |
15,069 |
|
Datasheet |
AC | Tape & Reel (TR) | Active | 100 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - | - |
|
|
CGA4C4C0G2W122J060AACAP CER 1200PF 450V C0G 0805 |
14,996 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 1200 pF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.030" (0.75mm) | - | - |
|
|
VJ1206Y473KXAPW1BCCAP CER 0.047UF 50V X7R 1206 |
14,739 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.90mm) | - | - |
|
|
VJ1206A680JXAPW1BCCAP CER 68PF 50V C0G/NP0 1206 |
14,558 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 68 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.90mm) | - | - |
|
|
VJ1206A330JXXPW1BCCAP CER 33PF 25V C0G/NP0 1206 |
13,901 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 33 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.90mm) | - | - |
-1,00mm.jpg)
|
GRM219R61A475KE34JCAP CER 4.7UF 10V X5R 0805 |
13,609 |
|
Datasheet |
GRM | Tape & Reel (TR) | Not For New Designs | 4.7 µF | ±10% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
|
VJ1206Y471KXAPW1BCCAP CER 470PF 50V X7R 1206 |
13,148 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 470 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.90mm) | - | - |
-1,27mm-M-Code.jpg)
|
1206YC105KAT4ACAP CER 1UF 16V X7R 1206 |
11,215 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 1 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
|
VJ0805Y102JXQPW1BCCAP CER 1000PF 10V X7R 0805 |
11,067 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 1000 pF | ±5% | 10V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.90mm) | - | - |
|
|
VJ1206A220JXACW1BCCAP CER 22PF 50V C0G/NP0 1206 |
10,770 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 22 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.95mm) | - | - |
