Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VJ0805Y181KXAPW1BCCAP CER 180PF 50V X7R 0805 |
9,939 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 180 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.90mm) | - | - |
|

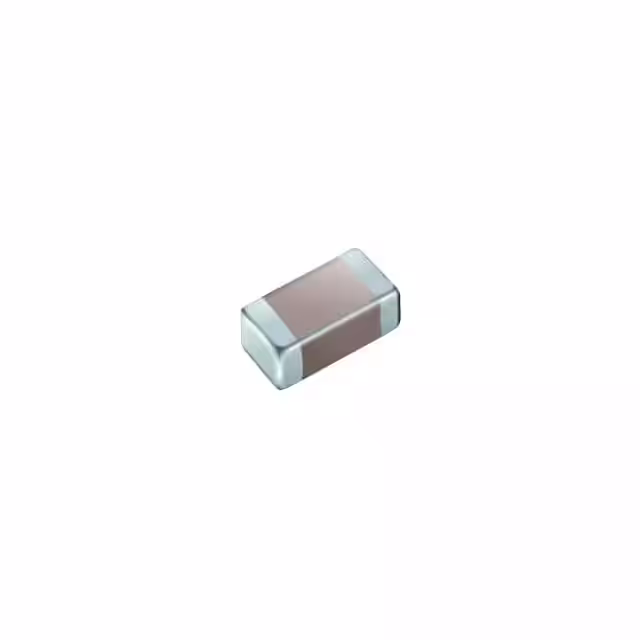

MSAYL105SSD392KFNA01CAP CER 3900PF 10V 0402 |
9,900 |
|
Datasheet |
MSAY | Tape & Reel (TR) | Active | 3900 pF | ±10% | 10V | - | -55°C ~ 125°C | Low Distortion | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
1C20C0G471J050BCAP CER 470PF 50V C0G/NP0 RADIAL |
9,582 |
|
Datasheet |
Monolythic®, 1C20 | Bulk | Active | 470 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.250" (6.35mm) | - | 0.200" (5.08mm) | Straight |
.jpg)
|
UMK105SD471KV-FCAP CER 470PF 50V 0402 |
9,391 |
|
Datasheet |
CFCAP™ | Tape & Reel (TR) | Active | 470 pF | ±10% | 50V | - | -55°C ~ 125°C | Low Distortion | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
-1,60x0,80x0,87mm.jpg)
|
C0603C689D1GACAUTOCAP CER 6.8PF 100V C0G/NP0 0603 |
9,206 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 6.8 pF | ±0.5pF | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
1C10X7R223K050BCAP CER 0.022UF 50V X7R RADIAL |
9,149 |
|
Datasheet |
Monolythic®, 1C10 | Bulk | Active | 0.022 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.250" (6.35mm) | - | 0.100" (2.54mm) | Straight |
|
C1206X333K631TCAP CER 0.033UF 630V X7R 1206 |
8,920 |
|
Datasheet |
MVC | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 630V | X7R | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.057" (1.45mm) | - | - |
|
C316C103M5U5TA7301CAP CER 10000PF 50V Z5U RADIAL |
8,676 |
|
Datasheet |
GoldMax 300 Comm Z5U | Tape & Reel (TR) | Active | 10000 pF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.230" (5.84mm) | - | 0.100" (2.54mm) | Formed Leads - Kinked |
|
|
C0805F472K1RACTUCAP CER 4700PF 100V X7R 0805 |
8,000 |
|
Datasheet |
SMD Comm X7R FO | Tape & Reel (TR) | Active | 4700 pF | ±10% | 100V | X7R | -55°C ~ 125°C | Open Mode | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
VJ1206A120KXACW1BCCAP CER 12PF 50V C0G/NP0 1206 |
7,969 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 12 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.90mm) | - | - |
|
|
C0805C472K1RACTMCAP CER 4700PF 100V X7R 0805 |
7,955 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 4700 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0805C155K9PACTUCAP CER 1.5UF 6.3V X5R 0805 |
7,204 |
|
Datasheet |
SMD Comm X5R | Tape & Reel (TR) | Active | 1.5 µF | ±10% | 6.3V | X5R | -55°C ~ 85°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
-0,33mm-C-Series.jpg)
|
C0603C271J4GACAUTOCAP CER 270PF 16V C0G/NP0 0603 |
7,140 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 270 pF | ±5% | 16V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C0805C183K3RACTUCAP CER 0.018UF 25V X7R 0805 |
7,098 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.018 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
KGM31BCG1H1R2CTCAP CER 1.2PF 50V C0G/NP0 1206 |
6,293 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 1.2 pF | ±0.25pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
|
|
VJ0805Y103JXAPW1BCCAP CER 10000PF 50V X7R 0805 |
5,791 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 10000 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.90mm) | - | - |
|
FA18C0G1H471JNU06CAP CER 470PF 50V C0G RADIAL |
5,625 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 470 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
|
|
C0603C181K1RACAUTOCAP CER 180PF 100V X7R 0603 |
5,590 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 180 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
VJ1206A100KXBACCAP CER 10PF 100V C0G/NP0 1206 |
5,533 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 10 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.067" (1.70mm) | - | - |
|
|
FA18X7R1H682KNU06CAP CER 6800PF 50V X7R RADIAL |
5,400 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 6800 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
