Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
CGA4J3X8R1C105K125ADCAP CER 1UF 16V X8R 0805 EPOXY |
2,065 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 1 µF | ±10% | 16V | X8R | -55°C ~ 150°C | Epoxy Mountable, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.059" (1.50mm) | - | - |
|
FA24C0G2W471JNU06CAP CER 470PF 450V C0G RADIAL |
1,976 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 470 pF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads |
-2,20mm-C-Series.jpg)
|
C3216C0G2W822K115AACAP CER 8200PF 450V C0G 1206 |
1,970 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 8200 pF | ±10% | 450V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
|
|
FA24NP02W151JNU06CAP CER 150PF 450V NP0 RAD |
1,902 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 150 pF | ±5% | 450V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads |
|
|
C3216C0G2A822K115AACAP CER 8200PF 100V C0G 1206 |
1,881 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 8200 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
|
C1206C333K2RACTUCAP CER 0.033UF 200V X7R 1206 |
1,870 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|

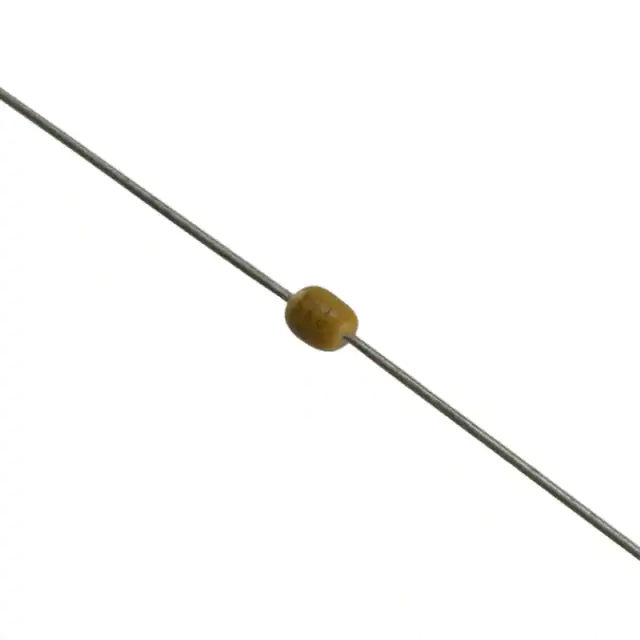

SA101C562KAACAP CER 5600PF 100V X7R AXIAL |
1,833 |
|
Datasheet |
SpinGuard® SA | Tape & Reel (TR) | Active | 5600 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Axial | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | - | - | - | Straight |
|
FA18C0G2A682JRU06CAP CER 6800PF 100V C0G/NP0 RAD |
1,697 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 6800 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads - Kinked |
|
|
C1206X562K1RACTUCAP CER 5600PF 100V X7R 1206 10% |
1,670 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 5600 pF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.039" (0.98mm) | - | - |
|
CGB2T1X6S0G105M022BCCAP CER 1UF 4V X6S 0402 |
1,643 |
|
Datasheet |
CGB | Tape & Reel (TR) | Active | 1 µF | ±20% | 4V | X6S | -55°C ~ 105°C | Low Profile | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.009" (0.22mm) | - | - |
-0,90mm.jpg)
|
GMK316BJ475MLHTCAP CER 4.7UF 35V X5R 1206 |
1,616 |
|
- |
M | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 35V | X5R | -55°C ~ 85°C | Ultra Low ESR | AEC-Q200 | Automotive, SMPS Filtering | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
C3216X8R2A683M115AACAP CER 0.068UF 100V X8R 1206 |
1,587 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.068 µF | ±20% | 100V | X8R | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
.jpg)
|
CGA4J3X7S2A474M125ABCAP CER 0.47UF 100V X7S 0805 |
1,520 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 100V | X7S | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
VJ0805D121JXBQJHTCAP CER 120PF 100V C0G/NP0 0805 |
1,450 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 120 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
C1206C821K5RACTUCAP CER 820PF 50V X7R 1206 |
1,444 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 820 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
VJ0603D300JXBQJHTCAP CER 30PF 100V C0G/NP0 0603 |
1,435 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 30 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.94mm) | - | - |
|
|
C3216C0G1H223K060AACAP CER 0.022UF 50V C0G 1206 |
1,178 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.022 µF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.030" (0.75mm) | - | - |
|
|
LMK316ABJ226KLHTCAP CER 22UF 10V X5R 1206 |
53,891 |
|
- |
M | Tape & Reel (TR) | Active | 22 µF | ±10% | 10V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
VJ1206A330JXEACCAP CER 33PF 500V C0G/NP0 1206 |
35,565 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 33 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.067" (1.70mm) | - | - |
-0,35mm.jpg)
|
C0510X6S0J474M030BCCAP CER 0.47UF 6.3V X6S 0204 |
21,630 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 6.3V | X6S | -55°C ~ 105°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0204 (0510 Metric) | 0.020" L x 0.039" W (0.52mm x 1.00mm) | - | 0.014" (0.35mm) | - | - |
