Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FG14C0G2A682JNT06CAP CER 6800PF 100V C0G RADIAL |
1,900 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 6800 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
|
C0805V103JBRACTUCAP CER 10000PF 630V X7R 0805 |
1,882 |
|
Datasheet |
ArcShield SMD Comm X7R HV | Tape & Reel (TR) | Active | 10000 pF | ±5% | 630V | X7R | -55°C ~ 125°C | High Voltage, ArcShield™ | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
.jpg)
|
VJ0402D7R5CXAAJHTCAP CER 7.5PF 50V C0G/NP0 0402 |
1,762 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 7.5 pF | ±0.25pF | 50V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.61mm) | - | - |
|
|
C0805C131JBGACTUCER CAP |
1,650 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 130 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
C1210X103J5GACAUTOCAP CER 10000PF 50V C0G/NP0 1210 |
1,538 |
|
Datasheet |
SMD Auto C0G Flex | Tape & Reel (TR) | Active | 10000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.049" (1.25mm) | - | - |
|
FA26C0G2J391JNU00CAP CER 390PF 630V C0G RADIAL |
1,466 |
|
Datasheet |
FA | Bulk | Not For New Designs | 390 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
.jpg)
|
CGA5H2X8R2A683M115AACAP CER 0.068UF 100V X8R 1206 |
1,440 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 0.068 µF | ±20% | 100V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
|
FG24C0G2A682JNT06CAP CER 6800PF 100V C0G RADIAL |
1,428 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 6800 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads |
|
VJ1206Y184KXATW1BCCAP CER 0.18UF 50V X7R 1206 |
1,270 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 0.18 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.041" (1.05mm) | - | - |
|
FA28X8R2A223KRU06CAP CER 0.022UF 100V X8R RADIAL |
1,128 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.022 µF | ±10% | 100V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
FG26X7R2J332KNT06CAP CER 3300PF 630V X7R RADIAL |
1,046 |
|
Datasheet |
FG | Cut Tape (CT) | Not For New Designs | 3300 pF | ±10% | 630V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|

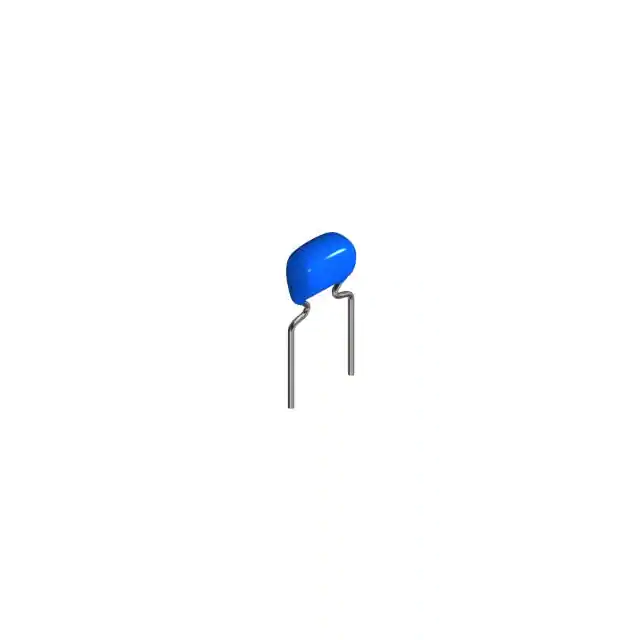

FA26C0G2J471JNU00CAP CER 470PF 630V C0G RADIAL |
1,025 |
|
Datasheet |
FA | Bulk | Active | 470 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-1,00x0,50x0,55mm.jpg)
|
C0402S471K5RACAUTOCAP CER 470PF 50V X7R 0402 |
30,667 |
|
Datasheet |
SMD Auto X7R FE | Tape & Reel (TR) | Active | 470 pF | ±10% | 50V | X7R | -55°C ~ 125°C | Floating Electrode | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
-3,20x1,60x0,88mm.jpg)
|
C1206C682J1RAC7800CAP CER 6800PF 100V X7R 1206 |
16,000 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 6800 pF | ±5% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
VJ1206A182JXAATCAP CER 1800PF 50V C0G/NP0 1206 |
15,762 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 1800 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.067" (1.70mm) | - | - |
|
|
KGM21BCG1H471FMCAP CER 470PF 50V C0G/NP0 0805 |
14,300 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 470 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
|
|
C0402S561K5RACAUTOFAILOPENSMD560.PF 50.0V |
10,000 |
|
Datasheet |
SMD Auto X7R FE | Tape & Reel (TR) | Active | 560 pF | ±10% | 50V | X7R | -55°C ~ 125°C | Floating Electrode | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
1C10C0G470J100BCAP CER 47PF 100V C0G/NP0 RADIAL |
9,912 |
|
Datasheet |
Monolythic®, 1C10 | Bulk | Active | 47 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.250" (6.35mm) | - | 0.100" (2.54mm) | Straight |
-3,20x1,60x1,00mm.jpg)
|
C1206C103K1GECAUTO7210CAP CER 1206 10NF 100V C0G 10% |
9,900 |
|
Datasheet |
ESD SMD Auto C0G | Tape & Reel (TR) | Active | 10000 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Low ESR | AEC-Q200 | Automotive, ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
|
1C20C0G331J050BCAP CER 330PF 50V C0G/NP0 RADIAL |
9,382 |
|
Datasheet |
Monolythic®, 1C20 | Bulk | Active | 330 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.250" (6.35mm) | - | 0.200" (5.08mm) | Straight |
