Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C0805C473J3TACAUTOCAP CER 0.047UF 25V X8G 0805 |
2,649 |
|
Datasheet |
SMD Auto X8G HT150C | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 25V | X8G | -55°C ~ 150°C | Low ESL, High Temperature | AEC-Q200 | Automotive, SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
-1,30mm-Tan.jpg)
|
0805Y2500103KNTCAP CER 10000PF 250V X8R 0805 |
2,347 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 10000 pF | ±10% | 250V | X8R | -55°C ~ 150°C | Soft Termination, High Temperature | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.051" (1.30mm) | - | - |
-MK-Series.jpg)
|
MK03V72R7BAT2ACAP CER 2.7PF 250V C0G/NP0 0603 |
2,329 |
|
Datasheet |
MK | Tape & Reel (TR) | Active | 2.7 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | - | 0.036" (0.91mm) | - | - |
-2,80mm.jpg)
|
18121C224JAT2ACAP CER 0.22UF 100V X7R 1812 |
2,018 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.22 µF | ±5% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.057" (1.45mm) | - | - |
|
C1210C395K3PACTUCAP CER 3.9UF 25V X5R 1210 |
1,997 |
|
Datasheet |
SMD Comm X5R | Tape & Reel (TR) | Active | 3.9 µF | ±10% | 25V | X5R | -55°C ~ 85°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.081" (2.05mm) | - | - |
-1.3.jpg)
|
CGA7K1X7R3D102M130KECAP CER 1000PF 2KV X7R 1808 |
1,220 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 1000 pF | ±20% | 2000V (2kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.059" (1.50mm) | - | - |
-3,20x1,60x1,80mm.jpg)
|
C1206J225K3RACAUTOCAP CER 2.2UF 25V X7R 1206 |
1,000 |
|
Datasheet |
SMD Auto X7R FO | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Open Mode, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1812C473J5GACTUCAP CER 0.047UF 50V C0G/NP0 1812 |
911 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
|
GC343QD7LP224KX18LCAP CER 0.22UF 450V X7T 1812 |
900 |
|
Datasheet |
GC3 | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 450V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.059" (1.50mm) | - | - |
|
|
C1812X223K1RACTUCAP CER 0.022UF 100V X7R 1812 |
739 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
.JPG)
|
CBR04C208A2GACCAP CER 0.2PF 200V C0G/NP0 0402 |
645 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 0.2 pF | ±0.05pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
-MK-Series.jpg)
|

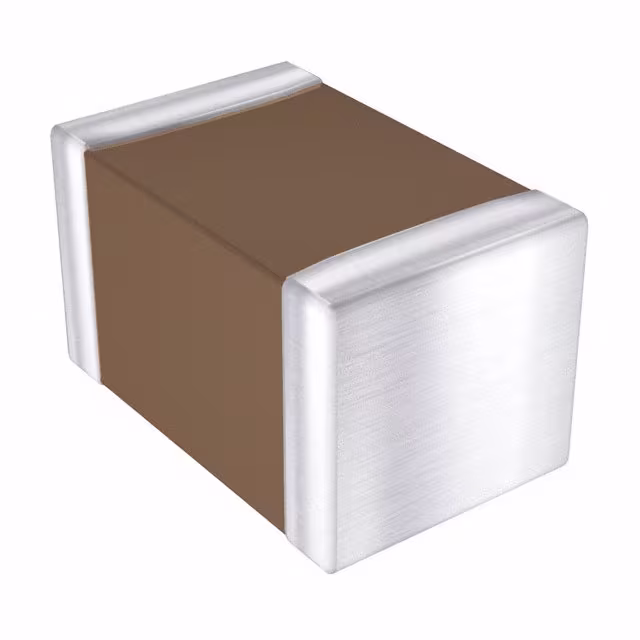

MK05V7270JAT2ACAP CER 27PF 250V C0G/NP0 0805 |
504 |
|
Datasheet |
MK | Tape & Reel (TR) | Active | 27 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.045" (1.15mm) | - | - |
|
|
1812AC223KAT3ACAP CER 0.022UF 1KV X7R 1812 |
7,954 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
.JPG)
|
CBR06C750F5GACCAP CER 75PF 50V C0G/NP0 0603 |
4,013 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 75 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
|
LD031A331FAB2ACAP CER SMD |
3,985 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 330 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
C1206C103JBRACTUCER CAP |
2,000 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 10000 pF | ±5% | 630V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.069" (1.75mm) | - | - |
|
FK20C0G2A473JN000CAP CER 0.047UF 100V C0G RADIAL |
1,982 |
|
Datasheet |
FK | Bulk | Not For New Designs | 0.047 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-2,00mm-Tan.jpg)
|
1210Y6300103KSTCAP CER 10000PF 630V X7R 1210 |
1,900 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 10000 pF | ±10% | 630V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.079" (2.00mm) | - | - |
|
|
FK11X5R1C226MN020CAP CER 22UF 16V X5R RADIAL |
978 |
|
Datasheet |
FK | Bulk | Not For New Designs | 22 µF | ±20% | 16V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.098" (2.50mm) | Formed Leads - Kinked |
|
|
GR343DD7LP334KW01LCAP CER 0.33UF 450V X7T 1812 |
965 |
|
Datasheet |
GR3 | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 450V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.079" (2.00mm) | - | - |
