Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-1,02mm.jpg)
|
0508YC224KAT2ACAP CER 0.22UF 16V X7R 0508 |
11,430 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 16V | X7R | -55°C ~ 125°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0508 (1220 Metric) | 0.050" L x 0.079" W (1.27mm x 2.00mm) | - | 0.040" (1.02mm) | - | - |
|
05083C104KAT4ACAP CER SMD |
9,106 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0508 (1220 Metric) | 0.050" L x 0.079" W (1.27mm x 2.00mm) | - | 0.040" (1.02mm) | - | - |
.jpg)
|
KTF500B105M31NLT00CAP CER 1UF 50V X7R 1206 |
5,820 |
|
Datasheet |
NTF | Tape & Reel (TR) | Active | 1 µF | ±20% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
LD051A102FAB2ACAP CER SMD |
4,000 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 1000 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
.jpg)
|
MM035C223KCZ2ACAP CER 0.022UF 50V X7R 0603 |
3,662 |
|
Datasheet |
MM | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | Medical, Non-Critical | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.029" (0.74mm) | - | - |
|

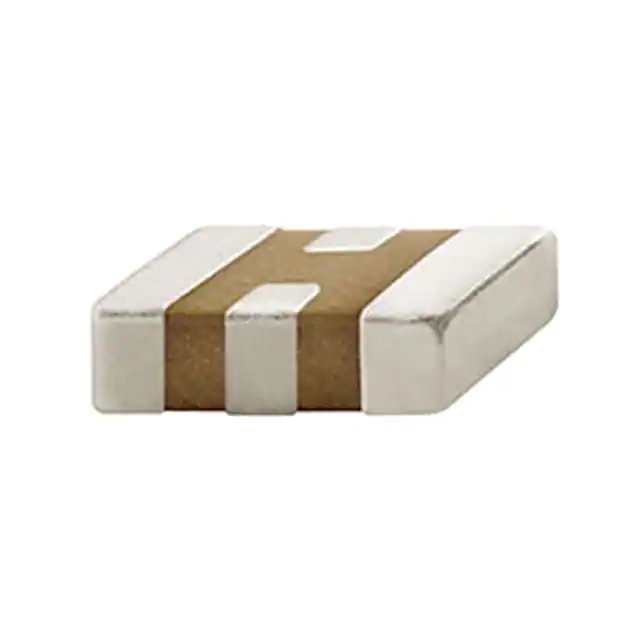

0504B223K500PCAP CER 0.022UF 50V 0504 EPOXY |
3,500 |
|
Datasheet |
- | Bulk | Active | 0.022 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Epoxy Mountable | - | Bypass, Decoupling | - | Surface Mount, MLCC, Epoxy | 0504 (1210 Metric) | 0.050" L x 0.040" W (1.27mm x 1.02mm) | - | 0.044" (1.12mm) | - | - |
|
|
C1210X223MCRACTUCER CAP |
1,590 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 0.022 µF | ±20% | 500V | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.061" (1.55mm) | - | - |
|
|
C1825X103K202TCAP CER 10000PF 2KV X7R 1825 |
795 |
|
Datasheet |
HVC | Tape & Reel (TR) | Active | 10000 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.250" W (4.60mm x 6.35mm) | - | 0.071" (1.80mm) | - | - |
-2,80mm.jpg)
|
1812GC682KAT2ACAP CER 6800PF 2KV X7R 1812 |
700 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 6800 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805X472K1HACAUTOCAP CER 4700PF 100V X8R 0805 |
657 |
|
Datasheet |
SMD Auto X8R HT150C Flex | Tape & Reel (TR) | Active | 4700 pF | ±10% | 100V | X8R | -55°C ~ 150°C | Low ESL, Soft Termination, High Temperature | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (0.98mm) | - | - |
|
C782U472MTWDDA7317CAP CER 4700PF 440VAC Y5U RADIAL |
9,000 |
|
Datasheet |
KJN SFTY X1-440 Y1-250 | Cut Tape (CT) | Active | 4700 pF | ±20% | 440VAC | Y5U (E) | -25°C ~ 85°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.591" Dia (15.00mm) | 0.748" (19.00mm) | - | 0.492" (12.50mm) | Straight |
|
|
VPDR501W223K1GV001ECAP CER 0.022UF 500V X7R 1812 |
4,242 |
|
Datasheet |
HVS-PME | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 500V | X7R | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.125" W (4.50mm x 3.18mm) | - | 0.110" (2.80mm) | - | - |
|
|
GR343DD7LQ154KW01KCAP CER 0.15UF 630V X7T 1812 |
3,990 |
|
Datasheet |
GR3 | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 630V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.079" (2.00mm) | - | - |
|
|
GR343DD7LQ154KW01LCAP CER 0.15UF 630V X7T 1812 |
2,000 |
|
Datasheet |
GR3 | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 630V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.079" (2.00mm) | - | - |
-3,20x1,60x1,35mm.jpg)
|
C1206X105M3RAC7800CAP CER 1UF 25V X7R 1206 |
1,982 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 1 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.069" (1.75mm) | - | - |
|
FG11X7S1H685KRT06CAP CER 6.8UF 50V X7S RADIAL |
354 |
|
Datasheet |
FG | Cut Tape (CT) | Not For New Designs | 6.8 µF | ±10% | 50V | X7S | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.098" (2.50mm) | Formed Leads |
|
|
C1206C223JAGACTUCAP CER 0.022UF 250V C0GNP0 1206 |
160 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
600S120GW250XTCAP CER 12PF 250V NP0 0603 |
142 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 12 pF | ±2% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
-3,20x1,60x1,20mm.jpg)
|
C1206X471KCRAC7800CAP CER 470PF 500V X7R 1206 |
6,005 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 470 pF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.047" (1.20mm) | - | - |
|
|
C1812C822J5GACTUCAP CER 8200PF 50V C0G/NP0 1812 |
862 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 8200 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
