Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SR215C474KARTR1CAP CER 0.47UF 50V X7R RADIAL |
2,800 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
.jpg)
|
0805X103K500PCAP CER 10000PF 50V 0805 EPOXY |
2,401 |
|
Datasheet |
- | Bulk | Active | 10000 pF | ±10% | 50V | BX | -55°C ~ 125°C | Epoxy Mountable | - | Bypass, Decoupling | - | Surface Mount, MLCC, Epoxy | 0805 (2012 Metric) | 0.080" L x 0.050" W (2.03mm x 1.27mm) | - | 0.054" (1.37mm) | - | - |
|

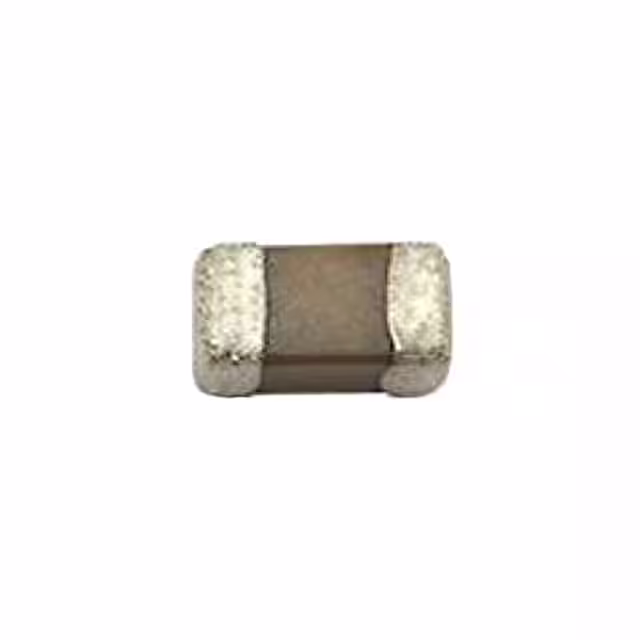

BC06208408DXAAJCAP CER |
970 |
|
Datasheet |
BC | Tape & Reel (TR) | Active | - | - | 50V | - | -55°C ~ 125°C | - | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.038" (0.97mm) | - | - |
|
|
0805B104K500PCAP CER 0.1UF 50V X7R 0805 EPOXY |
458 |
|
Datasheet |
- | Bulk | Active | 0.1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Epoxy Mountable | - | SMPS Filtering | - | Surface Mount, MLCC, Epoxy | 0805 (2012 Metric) | 0.080" L x 0.050" W (2.03mm x 1.27mm) | - | 0.054" (1.37mm) | - | - |
|
C440C474K5R5TACAP CER 0.47UF 50V X7R AXIAL |
448 |
|
Datasheet |
AxiMax 400 Comm X7R | Bulk | Active | 0.47 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Axial | 0.150" Dia x 0.400" L (3.81mm x 10.16mm) | - | - | - | Straight |
|
SR215C474KARCAP CER RADIAL |
338 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 0.47 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
-1,80mm-Q-Code.jpg)
|
1206YC335KAT2ACAP CER 3.3UF 16V X7R 1206 |
331 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 3.3 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
-2,79mm-Z-Code.jpg)
|
1210YD106MAT2ACAP CER 10UF 16V X5R 1210 |
9,475 |
|
Datasheet |
KGM - X5R | Tape & Reel (TR) | Active | 10 µF | ±20% | 16V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.21mm) | - | - |
|
FA26NP01H683JNU06CAP CER 0.068UF 50V NP0 RADIAL |
3,971 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.068 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
0504N101J101PCAP CER 100PF 100V 0504 EPOXY |
3,590 |
|
Datasheet |
- | Bulk | Active | 100 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Epoxy Mountable | - | General Purpose | - | Surface Mount, MLCC, Epoxy | 0504 (1210 Metric) | 0.050" L x 0.040" W (1.27mm x 1.02mm) | - | 0.044" (1.12mm) | - | - |
|
FA11X8R2A474KRU06CAP CER 0.47UF 100V X8R RADIAL |
3,503 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.47 µF | ±10% | 100V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.098" (2.50mm) | Formed Leads |
|
|
SR211A272JARTR1CAP CER 2700PF 100V NP0 RADIAL |
2,900 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 2700 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
-Formed-Leads.jpg)
|
FA16NP01H683JNU06CAP CER 0.068UF 50V NP0 RADIAL |
1,986 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.068 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.098" (2.50mm) | Formed Leads |
|
|
C1210C152JDRAC7800CAP CER 1500PF 1KV X7R 1210 |
1,928 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 1500 pF | ±5% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
-3,20x1,60x1,35mm.jpg)
|
C1206X475K8RACAUTOCAP CER 4.7UF 10V X7R 1206 |
1,900 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 10V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.077" (1.95mm) | - | - |
|
VJ2225A102JXEATCAP CER 1000PF 500V C0G/NP0 2225 |
1,823 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 1000 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.250" W (5.59mm x 6.35mm) | - | 0.086" (2.18mm) | - | - |
|
|
SR211A272JARCAP CER RADIAL |
1,000 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 2700 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
|
|
VJ1812Y103KXGTW1BCCAP CER 10000PF 1KV X7R 1812 |
601 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 10000 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | - | - | - |
-3,20x1,60x1,80mm.jpg)
|
C1206X155K5RACAUTOCAP CER 1.5UF 50V X7R 1206 |
520 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 1.5 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
AR215C224K4RCAP CER 0.22UF 50V X7R RADIAL |
517 |
|
Datasheet |
SkyCap® AR | Bulk | Active | 0.22 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
