Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
0402BW224K160NGTCAP CER 0.22UF 16V X5R 0402 |
9,269 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 16V | X5R | -55°C ~ 85°C | Gold Flash Termination | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.61mm) | - | - |
|
C430C225K3N5TA91707200CAP CER 2.2UF 25V X8L AXIAL |
1,641 |
|
Datasheet |
AxiMax 400 Auto X8L HT150C | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 25V | X8L | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Axial | 0.150" Dia x 0.240" L (3.81mm x 6.10mm) | - | - | - | Straight |
.jpg)
|
0805BB225K250YTCAP CER 2.2UF 25V X7R 0805 |
1,476 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.080" L x 0.050" W (2.03mm x 1.27mm) | - | 0.054" (1.37mm) | - | - |
-3,20x1,60x1,20mm.jpg)
|
C1206X300JDGACAUTOCAP CER 1206 30PF 1000V C0G 5% F |
2,454 |
|
Datasheet |
SMD Auto C0G HV Flex | Tape & Reel (TR) | Active | 30 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.047" (1.20mm) | - | - |
-2,70mm-C-Series.jpg)
|
C5750X7S3A223K160KACAP CER 0.022UF 1KV X7S 2220 |
1,884 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 1000V (1kV) | X7S | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.071" (1.80mm) | - | - |
-2,80mm_BN.jpg)
|
885012109006CAP CER 22UF 10V X5R 1210 |
419 |
|
Datasheet |
WCAP-CSGP | Tape & Reel (TR) | Active | 22 µF | ±20% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
VJ1111D3R0BXEQJHTCAP CER 3PF 500V C0G/NP0 1111 |
4,885 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 3 pF | ±0.1pF | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
VJ1111D1R0BXEQJHTCAP CER 1PF 500V C0G/NP0 1111 |
3,923 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 1 pF | ±0.1pF | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
HV1825A331JXHATHVCAP CER 330PF 3KV C0G/NP0 1825 |
1,861 |
|
Datasheet |
HV | Tape & Reel (TR) | Active | 330 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812C153JBGACAUTOCAP CER 0.015UF 630V C0G 1812 |
995 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
|
|
VJ1111D1R5BXEQJHTCAP CER 1.5PF 500V C0G/NP0 1111 |
887 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 1.5 pF | ±0.1pF | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
VJ1111D2R0BXEQJHTCAP CER 2PF 500V C0G/NP0 1111 |
182 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 2 pF | ±0.1pF | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
FG23X7R2J154KNT06CAP CER 0.15UF 630V X7R RAD |
1,000 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.15 µF | ±10% | 630V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|

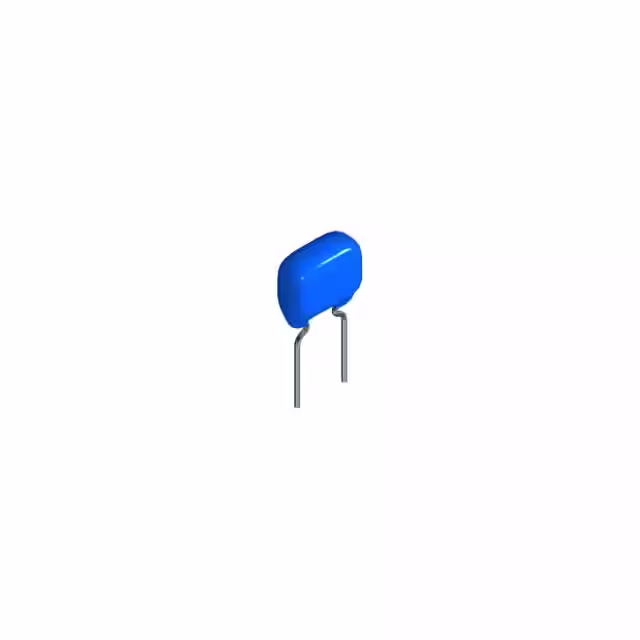

FG23X7R2J224KNT00CAP CER 0.22UF 630V X7R RADIAL |
317 |
|
Datasheet |
FG | Bulk | Active | 0.22 µF | ±10% | 630V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|

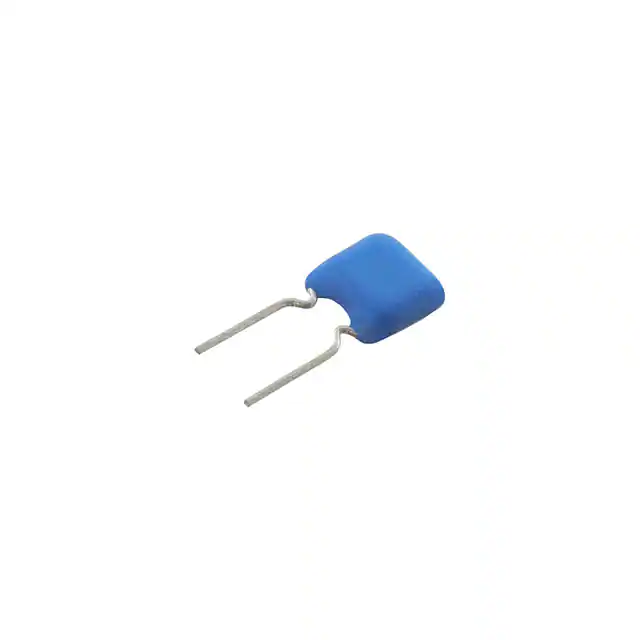

FG23X7R2J154KNT00CAP CER 0.15UF 630V X7R RADIAL |
300 |
|
Datasheet |
FG | Bulk | Active | 0.15 µF | ±10% | 630V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
VJ1111D1R2BXEQJHTCAP CER 1.2PF 500V C0G/NP0 1111 |
1,934 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 1.2 pF | ±0.1pF | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
.jpg)
|
1812B104K201NTCAP CER 0.1UF 200V X7R 1812 |
1,383 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.180" L x 0.125" W (4.57mm x 3.18mm) | - | 0.065" (1.65mm) | - | - |
-2,00mm-Tan.jpg)
|
1808YA250270KCTSY2CAP CER 27PF 250VAC C0G/NP0 1808 |
1,500 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Not For New Designs | 27 pF | ±10% | 250V | C0G, NP0 | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.079" (2.00mm) | - | - |
|
C1812C474J3JACTUCAP CER 0.47UF 25V U2J 1812 |
0 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.47 µF | ±5% | 25V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | - | General Purpose | - | Surface Mount, MLCC | 1810 (4525 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
C1812C304KBRLCAUTOCAP CER 0.3UF 630V X7R 1812 |
222 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 0.3 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Low ESL (Stacked), High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.154" (3.90mm) | - | - |
