Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C0805C180K1GACTUCAP CER 18PF 100V C0G/NP0 0805 |
4,000 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 18 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0805C470M5GACTUCAP CER 47PF 50V C0G/NP0 0805 |
4,000 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 47 pF | ±20% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
KAM21BR71H393KTCAP CER 0.039UF 50V X7R 0805 |
4,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.039 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
|
CS0805KRX7R9BB472CAP CER 4700PF 50V X7R 0805 |
4,000 |
|
Datasheet |
CS | Tape & Reel (TR) | Active | 4700 pF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.030" (0.75mm) | - | - |
|
|
C0603X473K1RECTUCAP CER 0.047UF 100V X7R 0603 |
4,000 |
|
Datasheet |
ESD SMD Comm X7R | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive, ESD Protection | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C0805C560F1HACTUCAP CER 56PF 100V X8R 0805 |
4,000 |
|
Datasheet |
SMD Comm X8R HT150C | Tape & Reel (TR) | Active | 56 pF | ±1% | 100V | X8R | -55°C ~ 150°C | Low ESL, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
-0,50mm.jpg)
|
GRM185R60G106ME15DCAP CER 10UF 4V X5R 0603 |
4,000 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 10 µF | ±20% | 4V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.020" (0.50mm) | - | - |
|
|
KGM15BR72A153MTCAP CER 0.015UF 100V X7R 0603 |
4,000 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.015 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.037" (0.95mm) | - | - |
|
MSASE168BC6225KTNA01CAP CER 2.2UF 16V X6S 0603 |
4,000 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 16V | X6S | -55°C ~ 105°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - | - |
|

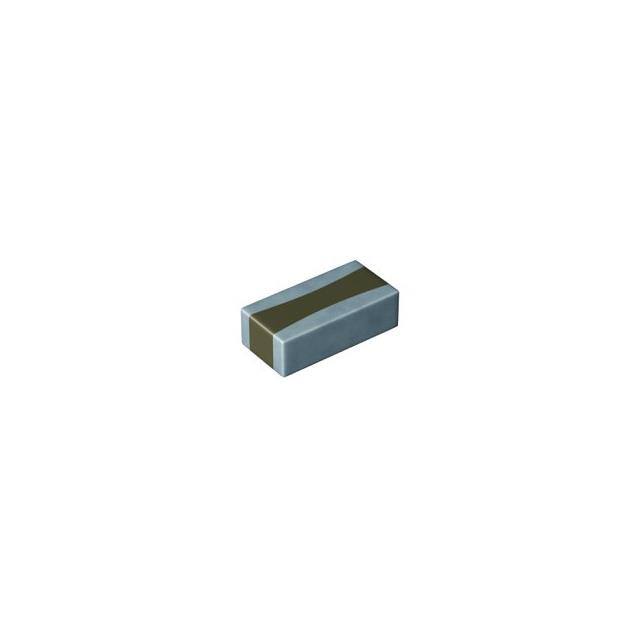

MSRLE165SB7474MTNA01CAP CER 0.47UF 16V X7R 0306 |
4,000 |
|
Datasheet |
MSRL | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 16V | X7R | -55°C ~ 125°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0306 (0816 Metric) | 0.031" L x 0.063" W (0.80mm x 1.60mm) | - | 0.022" (0.55mm) | - | - |
|
|
C0805C471J5GALTUCAP CER 470PF 50V NP0 0805 |
3,998 |
|
Datasheet |
SMD Comm C0G SnPb | Tape & Reel (TR) | Active | 470 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
KAM21BR71H123KTCAP CER 0.012UF 50V X7R 0805 |
3,997 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.012 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
|
|
C1210C560M1HACTUCAP CER 56PF 100V X8R 1210 |
3,994 |
|
Datasheet |
SMD Comm X8R HT150C | Tape & Reel (TR) | Active | 56 pF | ±20% | 100V | X8R | -55°C ~ 150°C | Low ESL, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.035" (0.88mm) | - | - |
-0,90mm.jpg)
|
06035C332KAZ2ACAP CER 3300PF 50V X7R 0603 |
3,985 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 3300 pF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805C473K4RACAUTOCAP CER 0.047UF 16V X7R 0805 |
3,985 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
06033C102K4Z2ACAP CER SMD |
3,979 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 1000 pF | ±10% | 25V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
VJ1206Y153KXACW1BCCAP CER 0.015UF 50V X7R 1206 |
3,950 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.95mm) | - | - |
|
|
KGM15ACG1H561KTCAP CER 560PF 50V C0G/NP0 0603 |
3,950 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 560 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
KGM31BR71E153KTCAP CER 0.015UF 25V X7R 1206 |
3,950 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
|
|
KAM15AR71E333KTCAP CER 0.033UF 25V X7R 0603 |
3,950 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
