Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSAST219JB5225MTNA01CAP CER 2.2UF 25V X5R 0805 |
3,950 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 25V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
C0805C152M5RACTUCAP CER 1500PF 50V X7R 0805 |
3,947 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 1500 pF | ±20% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
-0,90mm.jpg)
|
06035C103J4T2ACAP CER 10000PF 50V X7R 0603 |
3,940 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10000 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
06033C103K4Z2ACAP CER SMD |
3,937 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 10000 pF | ±10% | 25V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
KGM15AR71C471JTCAP CER 470PF 16V X7R 0603 |
3,925 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 470 pF | ±5% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
KGM31BR71E333KTCAP CER 0.033UF 25V X7R 1206 |
3,900 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
-0,94mm.jpg)
|
08053C473K4T2ACAP CER 0.047UF 25V X7R 0805 |
3,850 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
|
|
C0603X510F4HACTUCAP CER 0603 51PF 16V ULTRA STAB |
3,850 |
|
Datasheet |
SMD Comm X8R HT150C Flex | Tape & Reel (TR) | Active | 51 pF | ±1% | 16V | X8R | -55°C ~ 150°C | Low ESL, Soft Termination, High Temperature | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
MSASU319HB5105KTNA01CAP CER 1UF 50V X5R 1206 |
3,824 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.95mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805C519K5GAC7800CAP CER 5.1PF 50V C0G/NP0 0805 |
3,794 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 5.1 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0603C200M5GACTUCAP CER 20PF 50V C0G/NP0 0603 |
3,755 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 20 pF | ±20% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
KGM15AR71E332JTCAP CER 3300PF 25V X7R 0603 |
3,750 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 3300 pF | ±5% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
GCJ188R92A153KA01DCAP CER 15000PF 100V X8R 0603 |
3,750 |
|
Datasheet |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
-3,20x1,60x0,98mm.jpg)
|
C1206X200M5HAC7800CAP CER 1206 20PF 50V ULTRA STAB |
3,745 |
|
Datasheet |
SMD Comm X8R HT150C Flex | Tape & Reel (TR) | Active | 20 pF | ±20% | 50V | X8R | -55°C ~ 150°C | Low ESL, Soft Termination, High Temperature | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.039" (0.98mm) | - | - |
|
|
GCM2165G1H392GA16DCAP CER 3900PF 50V X8G 0805 |
3,705 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 3900 pF | ±2% | 50V | X8G | -55°C ~ 150°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.028" (0.70mm) | - | - |
-0,33mm.jpg)
|
GCM2165C2A162FA16DCAP CER 1600PF 100V C0G/NP0 0805 |
3,635 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 1600 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.028" (0.70mm) | - | - |
|
MCAST31LSB5106KTNA01CAP CER 10UF 25V X5R 1206 |
3,570 |
|
Datasheet |
MCAS | Tape & Reel (TR) | Active | 10 µF | ±10% | 25V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|

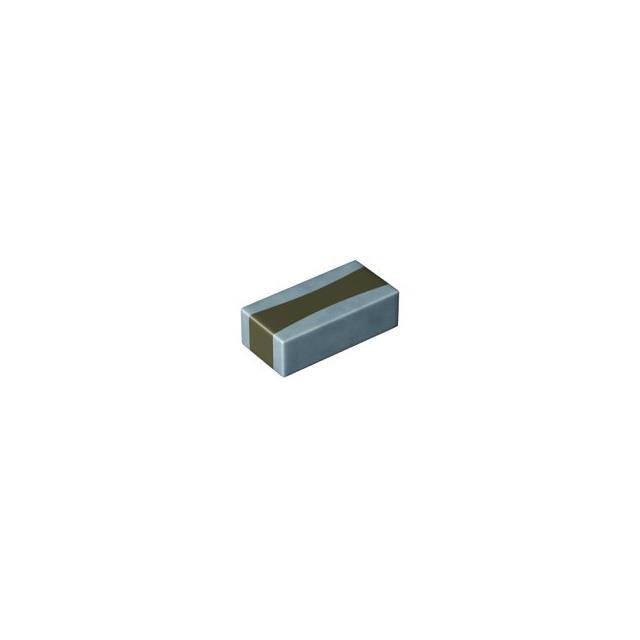

MSRLE165SB5474MTNA01CAP CER 0.47UF 16V X5R 0306 |
3,500 |
|
Datasheet |
MSRL | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 16V | X5R | -55°C ~ 85°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0306 (0816 Metric) | 0.031" L x 0.063" W (0.80mm x 1.60mm) | - | 0.022" (0.55mm) | - | - |
|
MSASJ168BB5226MTNA01CAP CER 22UF 6.3V X5R 0603 |
3,335 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 22 µF | ±20% | 6.3V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - | - |
|
|
KGM15AR71E221JTCAP CER 220PF 25V X7R 0603 |
3,140 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 220 pF | ±5% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
