Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

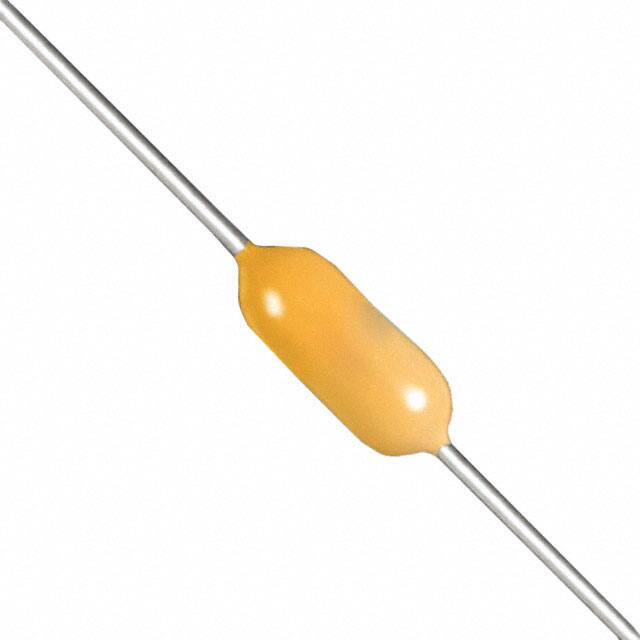

C430C474K5N5TA9170CAP CER 0.47UF 50V X8L AXIAL |
200 |
|
Datasheet |
AxiMax 400 Auto X8L HT150C | Bulk | Active | 0.47 µF | ±10% | 50V | X8L | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive, Bypass, Decoupling | - | Through Hole | Axial | 0.150" Dia x 0.240" L (3.81mm x 6.10mm) | - | - | - | Straight |
.jpg)
|
CS1808KKX7RZBB103CAP CER 10000PF 630V X7R 1808 |
3,925 |
|
Datasheet |
CS | Tape & Reel (TR) | Active | 10000 pF | ±10% | 630V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.079" (2.00mm) | - | - |
|
KTF500B335K32NHT00CAP CER 3.3UF 50V X7R 1210 |
3,200 |
|
Datasheet |
NTF | Tape & Reel (TR) | Active | 3.3 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
KTS250B475K32N0T00CERAMIC CAP |
3,200 |
|
Datasheet |
NTS | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
KVF500L684K32NLT00CERAMIC CAP |
3,200 |
|
Datasheet |
KVF | Tape & Reel (TR) | Active | 0.68 µF | ±10% | 50V | X8L | -55°C ~ 150°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
KTS251B224K32N0T00CERAMIC CAP |
3,170 |
|
Datasheet |
NTS | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
KTS101B475K32N0T00CERAMIC CAP |
3,150 |
|
Datasheet |
NTS | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
C757U332MZWDBAWL50CAP CER 3.3NF X1/Y2 440V/300V |
1,000 |
|
Datasheet |
C700KJY SFTY X1-440 Y2-300 | Bag | Active | 3300 pF | ±20% | 440VAC | Y5U (E) | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.472" Dia (12.00mm) | 0.630" (16.00mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
-4,50x3,20x2,7mm.jpg)
|
C1812C103F5HAC7800CAP CER 10000PF 50V X8R 1812 |
980 |
|
Datasheet |
SMD Comm X8R HT150C | Tape & Reel (TR) | Active | 10000 pF | ±1% | 50V | X8R | -55°C ~ 150°C | Low ESL, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C226M4RAC7210CAP CER 22UF 16V X7R 1210 |
8,720 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 22 µF | ±20% | 16V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
-1,00mm.jpg)
|
GQM2195C2E820GB12DCAP CER 82PF 250V NP0 0805 |
5,033 |
|
Datasheet |
GQM | Tape & Reel (TR) | Active | 82 pF | ±2% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
|
KTD251B104K32A0B00CERAMIC CAP |
4,000 |
|
Datasheet |
NTD | Bulk | Active | 0.1 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Through Hole | Radial | 0.197" L x 0.138" W (5.00mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads |
|
|
GQM2195C2E560GB12DCAP CER 56PF 250V NP0 0805 |
3,232 |
|
Datasheet |
GQM | Tape & Reel (TR) | Active | 56 pF | ±2% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
|
KTF500B475K32NHT00CAP CER 4.7UF 50V X7R 1210 |
3,200 |
|
Datasheet |
NTF | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
KTF500B225K32NHT00CAP CER 2.2UF 50V X7R 1210 |
3,200 |
|
Datasheet |
NTF | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
KTS101B105K32N0T00CERAMIC CAP |
3,200 |
|
Datasheet |
NTS | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
KTF251B224K32NLT00CERAMIC CAP |
3,178 |
|
Datasheet |
NTF | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
.jpg)
|
KTF250B685M32NHT00CAP CER 6.8UF 25V X7R 1210 |
3,160 |
|
Datasheet |
NTF | Tape & Reel (TR) | Active | 6.8 µF | ±20% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
KTF101B475K32NHT00CERAMIC CAP |
3,100 |
|
Datasheet |
NTF | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
C1210X393KFRACTUCAP CER 1210 FF |
2,832 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 0.039 µF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.110" (2.80mm) | - | - |
