Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHV0805N250151FCTHVCAP0805 COG 150PF 1% 250V |
3,897 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 150 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | General Purpose | - | General Purpose | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
CHV0805N250200FCTHVCAP0805 COG 20PF 1% 250V |
3,863 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 20 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | General Purpose | - | General Purpose | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
CHV0805N2504R3CCTHVCAP0805 COG 4.3PF .25PF 250V |
3,856 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 4.3 pF | ±0.25pF | 250V | C0G, NP0 | -55°C ~ 125°C | General Purpose | - | General Purpose | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
CHV1206N500100FCTHVCAP1206 COG 10PF 1% 500V |
3,850 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 10 pF | ±1% | 500V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
|
CHV0603N250330FCTHVCAP0603 COG 33PF 1% 250V |
3,848 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 33 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | General Purpose | - | General Purpose | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
|
CHV0805N2502R0CCTHVCAP0805 COG 2PF .25PF 250V |
3,770 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 2 pF | ±0.25pF | 250V | C0G, NP0 | -55°C ~ 125°C | General Purpose | - | General Purpose | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
CHV0805N250181FCTHVCAP0805 COG 180PF 1% 250V |
3,765 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 180 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | General Purpose | - | General Purpose | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
CHV0805N250120FCTHVCAP0805 COG 12PF 1% 250V |
3,495 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 12 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | General Purpose | - | General Purpose | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
|
CHV0805N2502R2CCTHVCAP0805 COG 2.2PF .25PF 250V |
3,491 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 2.2 pF | ±0.25pF | 250V | C0G, NP0 | -55°C ~ 125°C | General Purpose | - | General Purpose | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
.JPG)
|
CBR06C599BAGACCAP CER 5.9PF 250V C0G/NP0 0603 |
3,234 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 5.9 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
|
CHV1206N250183JCTHVCAP1206 COG .018UF 5% 250V |
3,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CHV1210N500182KXTHVCAP1210 X7R 1800PF 10% 500V |
3,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 1800 pF | ±10% | 500V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
GMC21CG332G25NTCAP0805 COG 3300PF 2% 25V |
3,000 |
|
- |
GMC | Tape & Reel (TR) | Active | 3300 pF | ±2% | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
CHV0805N1K0391JCTHVCAP0805 COG 390PF 5% 1KV |
2,980 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 390 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|

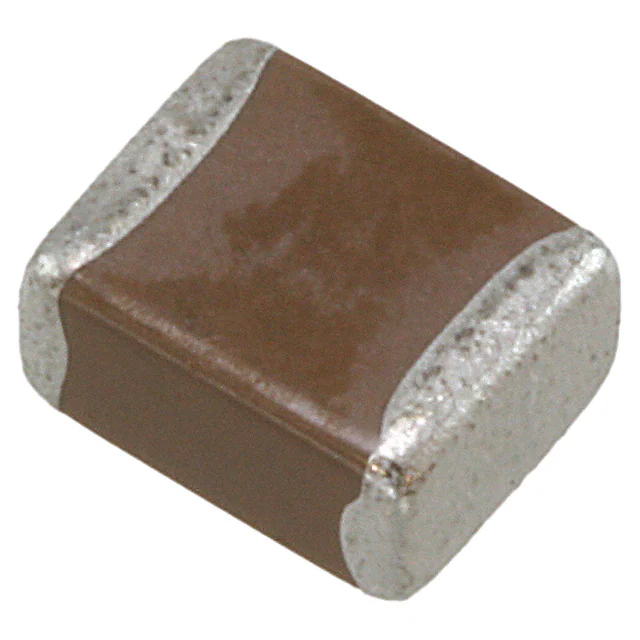

CGJ6L2X7R1E155K160AACAP CER 1.5UF 25V X7R 1210 |
2,887 |
|
Datasheet |
CGJ | Tape & Reel (TR) | Obsolete | 1.5 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.071" (1.80mm) | - | - |
|
|
CHV1808N3K0220KCTHVCAP1808 COG 22PF 10% 3KV |
2,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 22 pF | ±10% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.181" L x 0.079" W (4.60mm x 2.00mm) | - | 0.087" (2.20mm) | - | - |
|
CHV1210N2K0152KXTHVCAP1210 X7R 1500PF 10% 2KV |
2,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 1500 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
FA24NP02W332JNU06CAP CER 3300PF 450V NP0 RAD |
1,785 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 3300 pF | ±5% | 450V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads |
|
|
CBR06C619BAGACCAP CER 6.1PF 250V C0G/NP0 0603 |
1,740 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 6.1 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
.jpg)
|
CGA5H2X8R2A104M115ADCAP CER 0.1UF 100V 1206 EPOXY |
1,700 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 100V | X8R | -55°C ~ 150°C | Epoxy Mountable | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
