Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GMC10CG680F200NTCAP0603 COG 68PF 1% 200V |
4,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 68 pF | ±1% | 200V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
|
GMC21CG122G200NTCAP0805 COG 1200PF 2% 200V |
4,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 1200 pF | ±2% | 200V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
|
GMC21CG131F50NTCAP0805 COG 130PF 1% 50V |
4,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 130 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.028" (0.70mm) | - | - |
|
GMC21CG222F25NTCAP0805 COG 2200PF 1% 25V |
4,000 |
|
Datasheet |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GMC21CG330G200NTCAP0805 COG 33PF 2% 200V |
4,000 |
|
- |
GMC | Tape & Reel (TR) | Active | 33 pF | ±2% | 200V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.028" (0.70mm) | - | - |
|
|
GMC21CG681G100NTCAP0805 COG 680PF 2% 100V |
4,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 680 pF | ±2% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
|
GMC21CG431F100NTCAP0805 COG 430PF 1% 100V |
3,835 |
|
Datasheet |
GMC | Cut Tape (CT) | Active | 430 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
.jpg)
|
CGJ5F2C0G2A472J085AACAP CER 4700PF 100V C0G 1206 |
3,796 |
|
Datasheet |
CGJ | Tape & Reel (TR) | Obsolete | 4700 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
|

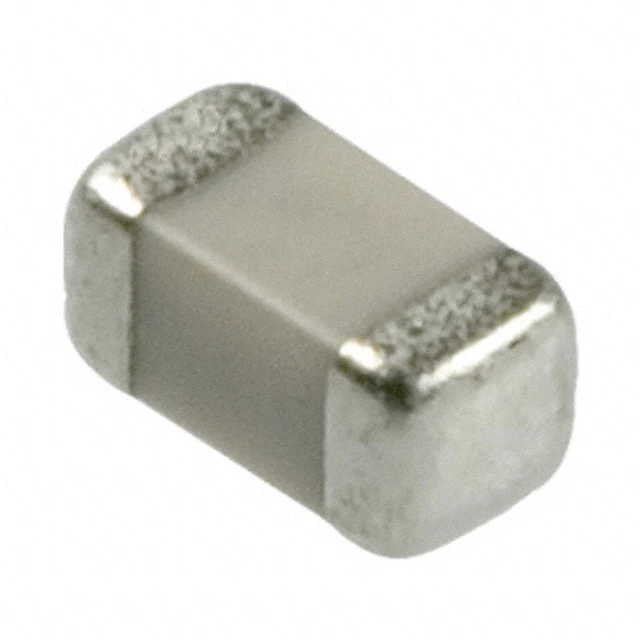

SQCSVA150JAT1ACAP CER 15PF 250V 0603 |
3,700 |
|
Datasheet |
SQ | Tape & Reel (TR) | Obsolete | 15 pF | ±5% | 250V | A | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.030" (0.76mm) | - | - |
|
|
CGJ5C2C0G2A392J060AACAP CER 3900PF 100V C0G 1206 |
3,441 |
|
Datasheet |
CGJ | Tape & Reel (TR) | Obsolete | 3900 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.030" (0.75mm) | - | - |
|
CHV1206N250153JCTHVCAP1206 COG .015UF 5% 250V |
3,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CHV1210N500332KXTHVCAP1210 X7R 3300PF 10% 500V |
3,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 3300 pF | ±10% | 500V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
|
CHV1210N630102JCTHVCAP1210 COG 1000PF 5% 630V |
3,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 1000 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
GMC21CG472G50NTCAP0805 COG 4700PF 2% 50V |
3,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 4700 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
GMC21CG392G50NTCAP0805 COG 3900PF 2% 50V |
2,998 |
|
Datasheet |
GMC | Cut Tape (CT) | Active | 3900 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
CHV1210N2K0821KXTHVCAP1210 X7R 820PF 10% 2KV |
2,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 820 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
RCE5C1H562J1DBH03ACAP CER 5600PF 50V C0G/NP0 RAD |
1,895 |
|
Datasheet |
RCE | Cut Tape (CT) | Active | 5600 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.138" (3.50mm) | - | 0.098" (2.50mm) | Straight |
|
|
FK11X7R2A334KN020CAP CER 0.33UF 100V X7R RADIAL |
1,670 |
|
Datasheet |
FK | Bulk | Not For New Designs | 0.33 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.098" (2.50mm) | Formed Leads - Kinked |
-0,95mm-C-Series.jpg)
|
C1608JB1C106M080ABCAP CER 10UF 16V JB 0603 |
96,061 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 10 µF | ±20% | 16V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - | - |
.jpg)
|
MM02ZC223KCZ2ACAP CER 0.022UF 10V X7R 0402 |
19,441 |
|
Datasheet |
MM | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 10V | X7R | -55°C ~ 125°C | - | - | Medical, Non-Critical | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.029" (0.74mm) | - | - |
