Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VJ0805Y223KLBAJ32CAP CER 22000 PF 100V X7R 0805 P |
422 |
|
Datasheet |
VJ Pb-Bearing | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 100V | X7R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
 2.5.jpg)
|
CGA6M3X8R1C685M200ABCAP CER 6.8UF 16V X8R 1210 |
2,660 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 6.8 µF | ±20% | 16V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
-3,50mm_BN.jpg)
|
885012010002CAP CER 0.022UF 16V C0G/NP0 1812 |
1,000 |
|
Datasheet |
WCAP-CSGP | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 16V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.053" (1.35mm) | - | - |
|
CGJ6M3X7R2D154K200AACAP CER 0.15UF 200V X7R 1210 |
984 |
|
Datasheet |
CGJ | Tape & Reel (TR) | Obsolete | 0.15 µF | ±10% | 200V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
564RC0GAA202EC100JCAP CER 10PF 2KV NP0 RADIAL |
1,815 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 10 pF | ±5% | 2000V (2kV) | C0G, NP0 | -25°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | - | - | - | - | Straight |
|
CHV1210N2K0331JCTHVCAP1210 COG 330PF 5% 2KV |
745 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 330 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C223JAGAC7800CAP CER 0.022UF 250V C0GNP0 1210 |
581 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.047" (1.20mm) | - | - |
-1,55mm-C-Series.jpg)
|
C4532CH2A683K250KACAP CER 0.068UF 100V CH 1812 |
440 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 0.068 µF | ±10% | 100V | CH | -25°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
|
CHV2220N2K0221KCTCAP CER 220PF 2KV C0G/NP0 2220 |
9,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 220 pF | ±10% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.118" (3.00mm) | - | - |
|
GMC55Y5V226Z50NTCAP CER 22UF 50V Y5V 2220 |
4,900 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 22 µF | -20%, +80% | 50V | Y5V (F) | -30°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.138" (3.50mm) | - | - |
|
CMS1R2K1HCCAP CER 1.2PF 50V S2H |
1,400 |
|
Datasheet |
- | Tray | Active | 1.2 pF | ±10% | 50V | S2H | -55°C ~ 125°C | Single Layer, Wire Bondable | COTS | RF, Microwave, High Frequency, General Purpose | - | Surface Mount, SLCC, Epoxy | - | 0.020" L x 0.020" W (0.50mm x 0.50mm) | - | 0.007" (0.18mm) | - | - |
|
|
CMS4R7K1HCCAP CER 4.7PF 50V M3K |
1,350 |
|
Datasheet |
- | Tray | Active | 4.7 pF | ±10% | 50V | M3K | -55°C ~ 125°C | Single Layer, Wire Bondable | COTS | RF, Microwave, High Frequency, General Purpose | - | Surface Mount, SLCC, Epoxy | - | 0.020" L x 0.020" W (0.50mm x 0.50mm) | - | 0.007" (0.18mm) | - | - |
|

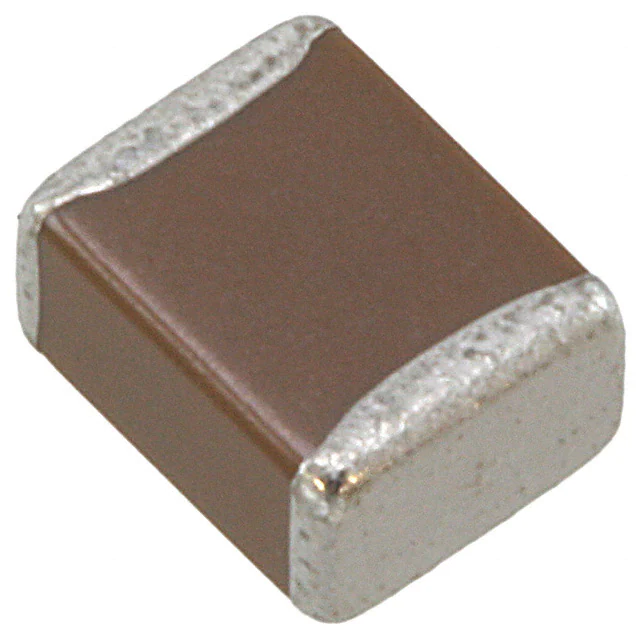

CGJ6L2X7R2A684K160AACAP CER 0.68UF 100V X7R 1210 |
1,929 |
|
Datasheet |
CGJ | Tape & Reel (TR) | Obsolete | 0.68 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.071" (1.80mm) | - | - |
|

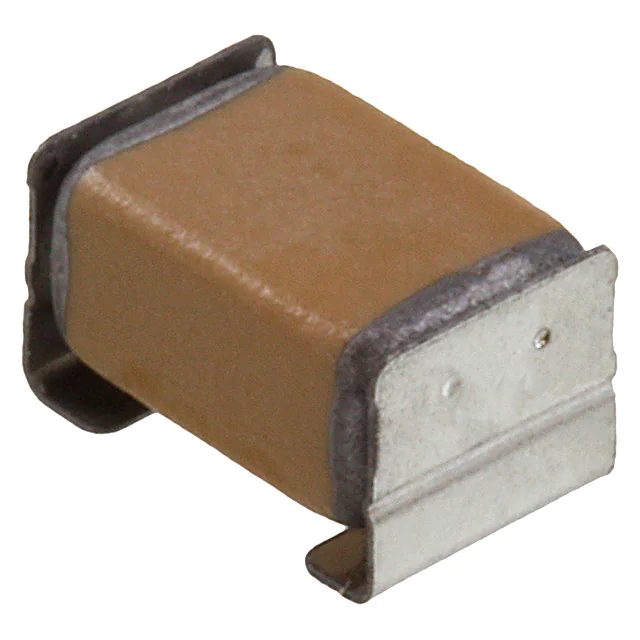

CKG45KX7R1H475M290JHCAP CER 4.7UF 50V X7R SMD |
581 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.197" L x 0.138" W (5.00mm x 3.50mm) | - | 0.118" (3.00mm) | - | J-Lead |
-2.3.jpg)
|
CGA9L2X7R2A684M160KACAP CER 0.68UF 100V X7R 2220 |
295 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 0.68 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.075" (1.90mm) | - | - |
|
|
CHV1808N1K0330JCTHVCAP1808 COG 33PF 5% 1KV |
6,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 33 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.181" L x 0.079" W (4.60mm x 2.00mm) | - | 0.087" (2.20mm) | - | - |
|
|
CHV1206N500392GCTHVCAP1206 COG 3900PF 2% 500V |
4,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 3900 pF | ±2% | 500V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
CHV1206N500222GCTHVCAP1206 COG 2200PF 2% 500V |
4,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 2200 pF | ±2% | 500V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
GMC55X7R106K100NTCAP2220 X7R 10UF 10% 100V |
3,329 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 10 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
|
|
CHV1210N500222JCTHVCAP1210 COG 2200PF 5% 500V |
3,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 2200 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
