Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
CGJ5L4C0G2H103J160AACAP CER 10000PF 500V C0G 1206 |
1,445 |
|
Datasheet |
CGJ | Tape & Reel (TR) | Last Time Buy | 10000 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
-2.2.jpg)
|
CGA6M2X8R1E225K200ADCAP CER 2.2UF 25V X8R 1210 EPOXY |
495 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 25V | X8R | -55°C ~ 150°C | Epoxy Mountable, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
|
CGA6M2X8R1E225M200ADCAP CER 2.2UF 25V X8R 1210 EPOXY |
378 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 25V | X8R | -55°C ~ 150°C | Epoxy Mountable, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
SA301A222FAACAP CER 2200PF 100V NP0 AXIAL |
0 |
|
Datasheet |
SpinGuard® SA | Tape & Reel (TR) | Obsolete | 2200 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Axial | 0.150" Dia x 0.290" L (3.81mm x 7.37mm) | - | - | - | Straight |
|
CHV1210N1K0681JCTHVCAP1210 COG 680PF 5% 1KV |
2,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 680 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
-1,30mm.jpg)
|
CDR31BP271BFWSATCAP CER 270PF 100V BP 0805 |
1,204 |
|
Datasheet |
Military, MIL-PRF-55681, CDR31 | Tape & Reel (TR) | Active | 270 pF | ±1% | 100V | BP | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.051" (1.30mm) | - | - |
-4,70x2,00x2,15mm.jpg)
|
C1808C101KDGAC7800CAP CER 100PF 1KV C0G/NP0 1808 |
893 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 100 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
|
M39014/01-1220VCAP CER AXIAL |
500 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CHV2225N3K0103KXTHVCAP2225 X7R .01UF 10% 3KV |
415 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 10000 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.250" W (5.70mm x 6.35mm) | - | 0.118" (3.00mm) | - | - |
|
0603N0R5AW251CAP CER 0.5PF 250V C0G/NP0 0603 |
310 |
|
Datasheet |
0603N | Cut Tape (CT) | Active | 0.5 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 175°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.062" L x 0.032" W (1.57mm x 0.81mm) | - | 0.038" (0.96mm) | - | - |
|
|
M39014/011563CAP CER 2200UF 100V RADIAL |
0 |
|
Datasheet |
Military, MIL-PRF-39014, CKR05 | Bulk | Obsolete | 2200 pF | ±10% | 100V | BX | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.245" (6.22mm) | - | 0.200" (5.08mm) | Formed Leads |
-2,70mm-C-Series.jpg)
|
C5750JB2A225K230KACAP CER 2.2UF 100V JB 2220 |
1,400 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 2.2 µF | ±10% | 100V | JB | -25°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
|
|
C5750JB2A225M230KACAP CER 2.2UF 100V JB 2220 |
442 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 2.2 µF | ±20% | 100V | JB | -25°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
|
CGJ6L4X7T2H104K160AACAP CER 0.1UF 500V X7T 1210 |
1,421 |
|
Datasheet |
CGJ | Tape & Reel (TR) | Obsolete | 0.1 µF | ±10% | 500V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.071" (1.80mm) | - | - |
-2,70mm.jpg)
|
QMK325B7473KNHTCAP CER 0.047UF 250V X7R 1210 |
2,000 |
|
- |
M | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.083" (2.10mm) | - | - |
|
|
C1210C101JDGACTUCAP CER 100PF 1KV C0G/NP0 1210 |
1,238 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 100 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
|
|
0603N1R0AW251CAP CER 1PF 250V C0G/NP0 0603 |
518 |
|
Datasheet |
0603N | Cut Tape (CT) | Active | 1 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 175°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.062" L x 0.032" W (1.57mm x 0.81mm) | - | 0.038" (0.96mm) | - | - |
|
|
0805B104K500PTCERAMIC CAPACITOR |
12,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Epoxy Mountable | - | SMPS Filtering | - | Surface Mount, MLCC, Epoxy | 0805 (2012 Metric) | 0.080" L x 0.050" W (2.03mm x 1.27mm) | - | 0.054" (1.37mm) | - | - |
|

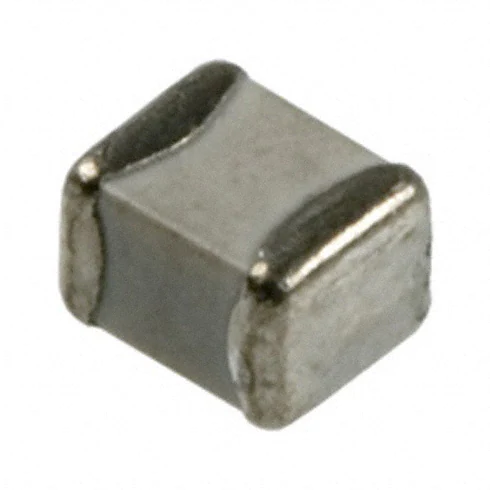

SQCAEM1R6BATMECAP CER 1.6PF 150V 0505 |
1,000 |
|
Datasheet |
SQ | Bulk | Obsolete | 1.6 pF | ±0.1pF | 150V | M | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.022" (0.57mm) | - | - |
|
GMC55X7R476M25NTCAP CER 47UF 25V X7R 2220 |
108,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 47 µF | ±20% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.138" (3.50mm) | - | - |
