Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS270K2KC-FKCAP CER 27PF 50V X7R |
1,800 |
|
Datasheet |
- | Tray | Active | 27 pF | ±10% | 50V | X7R | -55°C ~ 125°C | Single Layer, Wire Bondable | COTS | RF, Microwave, High Frequency, General Purpose | - | Surface Mount, SLCC, Epoxy | - | 0.024" L x 0.024" W (0.60mm x 0.60mm) | - | 0.010" (0.25mm) | - | - |
|
|
CMS470K2KC-FKCAP CER 47PF 50V X7R |
1,750 |
|
Datasheet |
- | Tray | Active | 47 pF | ±10% | 50V | X7R | -55°C ~ 125°C | Single Layer, Wire Bondable | COTS | RF, Microwave, High Frequency, General Purpose | - | Surface Mount, SLCC, Epoxy | - | 0.024" L x 0.024" W (0.60mm x 0.60mm) | - | 0.007" (0.18mm) | - | - |
|
|
CMS100K1PCCAP CER 10PF 50V M3K |
1,600 |
|
Datasheet |
- | Tray | Active | 10 pF | ±10% | 50V | M3K | -55°C ~ 125°C | Single Layer, Wire Bondable | COTS | RF, Microwave, High Frequency, General Purpose | - | Surface Mount, SLCC, Epoxy | - | 0.031" L x 0.031" W (0.80mm x 0.80mm) | - | 0.008" (0.20mm) | - | - |
|
|
CMS101K2KCCAP CER 100PF 50V X7R |
1,350 |
|
Datasheet |
- | Tray | Active | 100 pF | ±10% | 50V | X7R | -55°C ~ 125°C | Single Layer, Wire Bondable | COTS | RF, Microwave, High Frequency, General Purpose | - | Surface Mount, SLCC, Epoxy | - | 0.024" L x 0.024" W (0.60mm x 0.60mm) | - | 0.005" (0.13mm) | - | - |
|
0603N120FW251CAP CER 12PF 250V C0G/NP0 0603 |
784 |
|
Datasheet |
0603N | Tape & Reel (TR) | Active | 12 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 175°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.062" L x 0.032" W (1.57mm x 0.81mm) | - | 0.038" (0.96mm) | - | - |
|
0603N100FW251CAP CER 10PF 250V C0G/NP0 0603 |
427 |
|
Datasheet |
0603N | Cut Tape (CT) | Active | 10 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 175°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.062" L x 0.032" W (1.57mm x 0.81mm) | - | 0.038" (0.96mm) | - | - |
-1,55mm-C-Series.jpg)
|
C4532CH1H224J320KACAP CER 0.22UF 50V CH 1812 |
390 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 0.22 µF | ±5% | 50V | CH | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.138" (3.50mm) | - | - |
|
FA20C0G2W333JNU06CAP CER 0.033UF 450V C0G RADIAL |
1,474 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.033 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
1206W226K250PBCAP. SMD,1206,X5R,22UF,10%,25V |
2,000 |
|
Datasheet |
1206 | Tape & Reel (TR) | Active | 22 µF | ±10% | 25V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
VJ1206Y471KLEAJ32CAP CER 470 PF 500V X7R 1206 PB |
935 |
|
Datasheet |
VJ Pb-Bearing | Tape & Reel (TR) | Active | 470 pF | ±10% | 500V | X7R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.067" (1.70mm) | - | - |
|

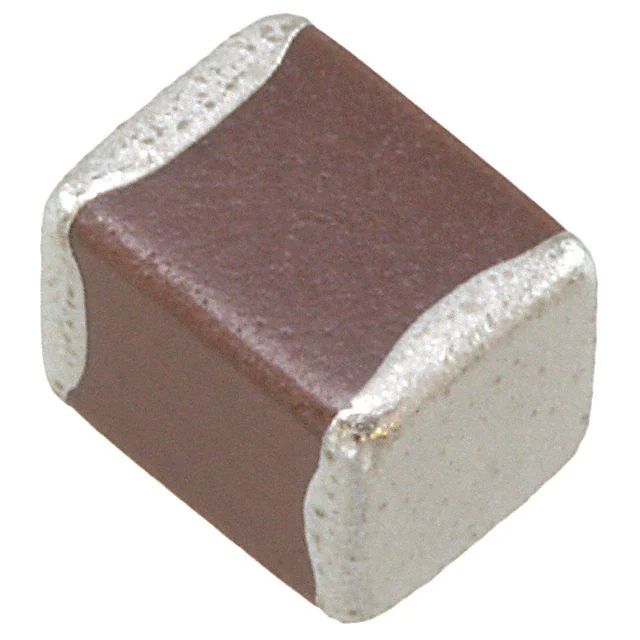

CGJ6P3X7S1H685K250ABCAP CER 6.8UF 50V X7S 1210 |
907 |
|
Datasheet |
CGJ | Tape & Reel (TR) | Obsolete | 6.8 µF | ±10% | 50V | X7S | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | - | - | - |
|
|
C4532C0G2W473K230KACAP CER 0.047UF 450V C0G 1812 |
683 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.047 µF | ±10% | 450V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
C4532X7S3D222M160KACAP CER 2200PF 2KV X7S 1812 |
680 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 2200 pF | ±20% | 2000V (2kV) | X7S | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
-2.2.jpg)
|
CGA6M3X8R2A474M200ADCAP CER 0.47UF 100V 1210 EPOXY |
151 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 100V | X8R | -55°C ~ 150°C | Epoxy Mountable | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
|
0603N6R8BW251.060 X.030 6.8 PF .1PF 250 VOLTS |
874 |
|
Datasheet |
0603N | Tape & Reel (TR) | Active | 6.8 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 175°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.062" L x 0.032" W (1.57mm x 0.81mm) | - | 0.038" (0.96mm) | - | - |
|
|
VJ1206Y222KLEAJ32CAP CER 2200 PF 500V X7R 1206 PB |
597 |
|
Datasheet |
VJ Pb-Bearing | Tape & Reel (TR) | Active | 2200 pF | ±10% | 500V | X7R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.067" (1.70mm) | - | - |
|
CHV2220N250225KXTHVCAP2220 X7R 2.2UF 10% 250V |
1,647 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 250V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.118" (3.00mm) | - | - |
-Standard-MLCC.jpg)
|
1206Y0250103JCTCAP CER 10000PF 25V C0G/NP0 1206 |
1,155 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 10000 pF | ±5% | 25V | C0G, NP0 (1B) | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.063" (1.60mm) | - | - |
-2,70mm-C-Series.jpg)
|
C5750X7R1E685K160KMCAP CER 6.8UF 25V X7R 2220 |
612 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 6.8 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.071" (1.80mm) | - | - |
|
|
C4532CH2W473K230KACAP CER 0.047UF 450V CH 1812 |
449 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 0.047 µF | ±10% | 450V | CH | -25°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
