Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSP430F1611IPMIC MCU 16BIT 48KB FLASH 64LQFP |
412 |
|
Datasheet |
64-LQFP | MSP430x1xx | Tray | Active | Verified | MSP430 CPU16 | 16-Bit | 8MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 48 | 48KB (48K x 8 + 256B) | FLASH | - | 10K x 8 | 1.8V ~ 3.6V | A/D 8x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
STM32F777NIH6IC MCU 32BIT 2MB FLASH 216TFBGA |
306 |
|
Datasheet |
216-TFBGA | STM32F7 | Tray | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 216MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | 159 | 2MB (2M x 8) | FLASH | - | 512K x 8 | 1.7V ~ 3.6V | A/D 24x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
ADUC848BCPZ62-5IC MCU 8BIT 62KB FLASH 56LFCSP |
34 |
|
Datasheet |
56-VFQFN Exposed Pad, CSP | MicroConverter® ADuC8xx | Tray | Active | Not Verified | 8052 | 8-Bit | 12.58MHz | I2C, SPI, UART/USART | POR, PSM, PWM, Temp Sensor, WDT | 34 | 62KB (62K x 8) | FLASH | 4K x 8 | 2.25K x 8 | 4.75V ~ 5.25V | A/D 10x16b; D/A 1x12b, 2x16b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|

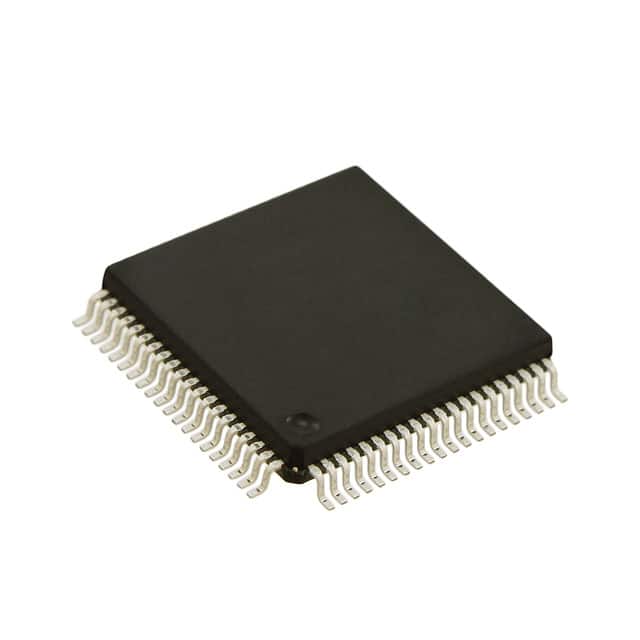

MC9S12A64CFUEIC MCU 16BIT 64KB FLASH 80QFP |
1,927 |
|
Datasheet |
80-QFP | HCS12 | Tray | Active | Not Verified | HCS12 | 16-Bit | 25MHz | I2C, SCI, SPI | PWM, WDT | 59 | 64KB (64K x 8) | FLASH | 1K x 8 | 4K x 8 | 2.35V ~ 5.25V | A/D 8x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
TMS320F28379DZWTTIC MCU 32BIT 1MB FLASH 337NFBGA |
778 |
|
Datasheet |
337-LFBGA | C2000™ C28x Delfino™, Functional Safety (FuSa) | Tray | Active | Not Verified | C28x | 32-Bit Dual-Core | 200MHz | CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, uPP, UART/USART, USB | DMA, POR, PWM, WDT | 169 | 1MB (512K x 16) | FLASH | - | 102K x 16 | 1.14V ~ 3.47V | A/D 24x12b, 12x16b; D/A 3x12b | Internal | -40°C ~ 105°C (TJ) | - | - | Surface Mount | ||
|
PIC32MZ2064DAR169-I/6JIC MCU 32BIT 2MB FLASH 169LFBGA |
298 |
|
Datasheet |
169-LFBGA | PIC® 32MZ DAR | Tray | Active | Not Verified | MIPS32® microAptiv™ | 32-Bit Single-Core | 200MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, PMP, SPI, SQI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, HLVD, I2S, POR, PWM, WDT | 120 | 2MB (2M x 8) | FLASH | - | 640K x 8 + 32MB DDR2 SDRAM | 1.7V ~ 1.9V | A/D 45x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
XE216-512-TQ128-I20IC MCU 32BIT ROMLESS 128TQFP |
936 |
|
Datasheet |
128-TQFP Exposed Pad | XE | Tray | Active | Not Verified | XCore | 32-Bit 16-Core | 2000MIPS | RGMII, USB | - | 67 | - | ROMless | - | 512K x 8 | 0.95V ~ 3.6V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
MK70FN1M0VMJ12IC MCU 32BIT 1MB FLSH 256MAPPBGA |
1,840 |
|
Datasheet |
256-LBGA | Kinetis K70 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 120MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG | DMA, I2S, LCD, LVD, POR, PWM, WDT | 128 | 1MB (1M x 8) | FLASH | - | 128K x 8 | 1.71V ~ 3.6V | A/D 71x16b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
MCF52233CAF60IC MCU 32BIT 256KB FLASH 80LQFP |
528 |
|
Datasheet |
80-LQFP | MCF5223x | Tray | Active | Not Verified | Coldfire V2 | 32-Bit Single-Core | 60MHz | Ethernet, I2C, SPI, UART/USART | DMA, LVD, POR, PWM, WDT | 73 | 256KB (256K x 8) | FLASH | - | 32K x 8 | 3V ~ 3.6V | A/D 8x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
MC56F8323MFBEIC MCU 16BIT 32KB FLASH 64LQFP |
345 |
|
Datasheet |
64-LQFP | 56F8xxx | Tray | Not For New Designs | Not Verified | 56800E | 16-Bit | 60MHz | CANbus, SCI, SPI | POR, PWM, Temp Sensor, WDT | 27 | 32KB (16K x 16) | FLASH | - | 12K x 8 | 2.25V ~ 3.6V | A/D 8x12b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
LPC2214FBD144/01KIC MCU 16/32B 256KB FLSH 144LQFP |
303 |
|
Datasheet |
144-LQFP | LPC2200 | Tray | Active | Not Verified | ARM7® | 16/32-Bit | 60MHz | EBI/EMI, I2C, Microwire, SPI, SSI, SSP, UART/USART | POR, PWM, WDT | 112 | 256KB (256K x 8) | FLASH | - | 16K x 8 | 1.65V ~ 1.95V | A/D 8x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
TMS320F2809PZAIC MCU 32BIT 256KB FLASH 100LQFP |
719 |
|
Datasheet |
100-LQFP | C2000™ C28x Fixed-Point | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 100MHz | CANbus, I2C, SCI, SPI, UART/USART | POR, PWM, WDT | 35 | 256KB (128K x 16) | FLASH | - | 18K x 16 | 1.71V ~ 1.89V | A/D 16x12b | Internal | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
XMC4800F144K2048AAXQMA1IC MCU 32BIT 2MB FLASH 144LQFP |
393 |
|
Datasheet |
144-LQFP Exposed Pad | XMC4000 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 144MHz | CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, SPI, UART/USART, USB OTG, USIC | DMA, I2S, LED, POR, Touch-Sense, WDT | 119 | 2MB (2M x 8) | FLASH | - | 352K x 8 | 3.13V ~ 3.63V | A/D 32x12b; D/A 2x12b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
CY8C3866AXI-040IC MCU 8BIT 64KB FLASH 100TQFP |
323 |
|
Datasheet |
100-LQFP | PSOC™ 3 CY8C38xx | Tray | Active | Not Verified | 8051 | 8-Bit | 67MHz | CANbus, EBI/EMI, I2C, LINbus, SPI, UART/USART, USB | CapSense, DMA, LCD, POR, PWM, WDT | 62 | 64KB (64K x 8) | FLASH | 2K x 8 | 8K x 8 | 1.71V ~ 5.5V | A/D 16x20b; D/A 4x8b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
TM4C129XNCZADI3IC MCU 32BIT 1MB FLASH 212NFBGA |
286 |
|
Datasheet |
212-VFBGA | Tiva™ C | Tray | Active | Not Verified | ARM® Cortex®-M4F | 32-Bit Single-Core | 120MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, QSSI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT | 140 | 1MB (1M x 8) | FLASH | 6K x 8 | 256K x 8 | 2.97V ~ 3.63V | A/D 24x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
TMS320F28377DPTPSIC MCU 32BIT 1MB FLASH 176HLQFP |
171 |
|
Datasheet |
176-LQFP Exposed Pad | C2000™ C28x Delfino™, Functional Safety (FuSa) | Tray | Active | Not Verified | C28x | 32-Bit Dual-Core | 200MHz | CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, uPP, UART/USART, USB | DMA, POR, PWM, WDT | 97 | 1MB (512K x 16) | FLASH | - | 102K x 16 | 1.14V ~ 3.47V | A/D 20x12b, 9x16b; D/A 3x12b | Internal | -40°C ~ 125°C (TJ) | - | - | Surface Mount | ||
|
DS80C310-MCG+IC MCU 8BIT ROMLESS 40DIP |
188 |
|
Datasheet |
40-DIP (0.600", 15.24mm) | 80C | Tube | Active | Not Verified | 8051 | 8-Bit | 25MHz | EBI/EMI, SIO, UART/USART | Brown-out Detect/Reset, POR | 32 | - | ROMless | - | 256 x 8 | 4.5V ~ 5.5V | - | External | 0°C ~ 70°C (TA) | - | - | Through Hole | ||
|
|
MK70FN1M0VMJ15IC MCU 32BIT 1MB FLSH 256MAPPBGA |
2,500 |
|
Datasheet |
256-LBGA | Kinetis K70 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 150MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG | DMA, I2S, LCD, LVD, POR, PWM, WDT | 128 | 1MB (1M x 8) | FLASH | - | 128K x 8 | 1.71V ~ 3.6V | A/D 71x16b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|

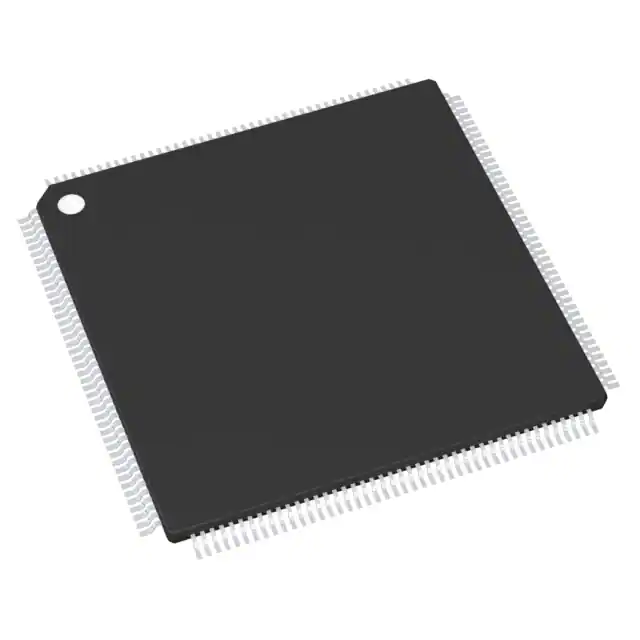

TMS320F28379DPTPSIC MCU 32BIT 1MB FLASH 176HLQFP |
169 |
|
Datasheet |
176-LQFP Exposed Pad | C2000™ C28x Delfino™, Functional Safety (FuSa) | Tray | Active | Not Verified | C28x | 32-Bit Dual-Core | 200MHz | CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, uPP, UART/USART, USB | DMA, POR, PWM, WDT | 97 | 1MB (512K x 16) | FLASH | - | 102K x 16 | 1.14V ~ 3.47V | A/D 20x12b, 9x16b; D/A 3x12b | Internal | -40°C ~ 125°C (TJ) | - | - | Surface Mount | ||
|
LPC2458FET180,551IC MCU 16/32BIT 512KB 180TFBGA |
180 |
|
Datasheet |
180-TFBGA | LPC2400 | Tray | Not For New Designs | Not Verified | ARM7® | 16/32-Bit | 72MHz | CANbus, EBI/EMI, Ethernet, I2C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 136 | 512KB (512K x 8) | FLASH | - | 98K x 8 | 3V ~ 3.6V | A/D 8x10b; D/A 1x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount |
