Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

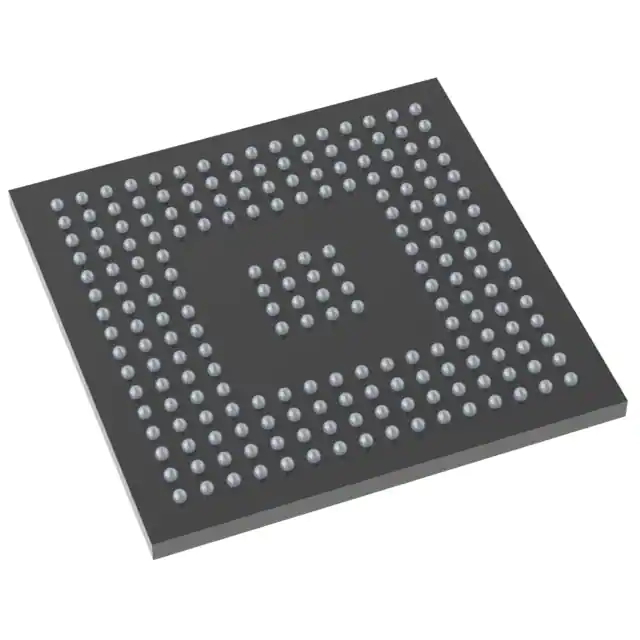

MCF54452VP266IC MCU 32BIT ROMLESS 360BGA |
1,450 |
|
Datasheet |
360-BBGA | MCF5445x | Tray | Active | Not Verified | Coldfire V4 | 32-Bit Single-Core | 266MHz | I2C, SPI, SSI, UART/USART, USB OTG | DMA, WDT | 132 | - | ROMless | - | 32K x 8 | 1.35V ~ 3.6V | - | External, Internal | 0°C ~ 70°C (TA) | - | - | Surface Mount | ||
|
TMS5703137DPGEQQ1IC MCU 16/32BIT 3MB FLSH 144LQFP |
278 |
|
Datasheet |
144-LQFP | Hercules™ TMS570 ARM® Cortex®-R | Tray | Active | Not Verified | ARM® Cortex®-R4F | 16/32-Bit | 160MHz | CANbus, EBI/EMI, Ethernet, FlexRay, I2C, LINbus, MibSPI, SCI, SPI, UART/USART | DMA, POR, PWM, WDT | 58 | 3MB (3M x 8) | FLASH | 64K x 8 | 256K x 8 | 1.14V ~ 3.6V | A/D 24x12b | External | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
ADUC834BSZIC MCU 8BIT 62KB FLASH 52MQFP |
133 |
|
Datasheet |
52-QFP | MicroConverter® ADuC8xx | Tray | Active | Not Verified | 8052 | 8-Bit | 12.58MHz | EBI/EMI, I2C, SPI, UART/USART | POR, PSM, PWM, Temp Sensor, WDT | 34 | 62KB (62K x 8) | FLASH | 4K x 8 | 2.25K x 8 | 2.7V ~ 5.25V | A/D 3x16b, 4x24b; D/A 1x12b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
|
MC9S12XEP100CAGIC MCU 16BIT 1MB FLASH 144LQFP |
716 |
|
Datasheet |
144-LQFP | HCS12X | Tray | Active | Not Verified | HCS12X | 16-Bit | 50MHz | CANbus, EBI/EMI, I2C, IrDA, SCI, SPI | LVD, POR, PWM, WDT | 119 | 1MB (1M x 8) | FLASH | 4K x 8 | 64K x 8 | 1.72V ~ 5.5V | A/D 24x12b | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
.jpg)
|
DS80C320-QCG+T&RIC MCU 8BIT ROMLESS 44PLCC |
313 |
|
Datasheet |
44-LCC (J-Lead) | 80C | Tape & Reel (TR) | Active | Not Verified | 8051 | 8-Bit | 25MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | - | ROMless | - | 256 x 8 | 4.5V ~ 5.5V | - | External | 0°C ~ 70°C (TA) | - | - | Surface Mount | ||
|
MC9S12A128CPVEIC MCU 16BIT 128KB FLASH 112LQFP |
1,157 |
|
Datasheet |
112-LQFP | HCS12 | Tray | Active | Verified | HCS12 | 16-Bit | 25MHz | I2C, SCI, SPI | PWM, WDT | 91 | 128KB (128K x 8) | FLASH | 2K x 8 | 4K x 8 | 2.35V ~ 5.25V | A/D 16x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
C8051F130-GQIC MCU 8BIT 128KB FLASH 100TQFP |
1,413 |
|
Datasheet |
100-TQFP | C8051F13x | Tray | Not For New Designs | Verified | 8051 | 8-Bit | 100MHz | EBI/EMI, SMBus (2-Wire/I2C), SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | 64 | 128KB (128K x 8) | FLASH | - | 8.25K x 8 | 3V ~ 3.6V | A/D 8x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
C8051F061-GQIC MCU 8BIT 64KB FLASH 64TQFP |
1,668 |
|
Datasheet |
64-TQFP | C8051F06x | Tray | Not For New Designs | Verified | 8051 | 8-Bit | 25MHz | CANbus, SMBus (2-Wire/I2C), SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | 24 | 64KB (64K x 8) | FLASH | - | 4.25K x 8 | 2.7V ~ 3.6V | A/D 2x16b, 8x10b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
LM3S3748-IQC50-A0IC MCU 32BIT 128KB FLASH 100LQFP |
215 |
|
Datasheet |
100-LQFP | Stellaris® ARM® Cortex®-M3S 3000 | Tray | Not For New Designs | Verified | ARM® Cortex®-M3 | 32-Bit Single-Core | 50MHz | I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 61 | 128KB (128K x 8) | FLASH | - | 64K x 8 | 2.25V ~ 2.75V | A/D 8x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
MCF54418CMJ250IC MCU 32BIT ROMLESS 256MAPBGA |
426 |
|
Datasheet |
256-LBGA | MCF5441x | Tray | Active | Not Verified | Coldfire V4 | 32-Bit Single-Core | 250MHz | 1-Wire®, CANbus, EBI/EMI, Ethernet, I2C, SmartCard, SPI, SSI, UART/USART, USB, USB OTG | DMA, PWM, WDT | 87 | - | ROMless | - | 64K x 8 | 1.14V ~ 1.32V | A/D 8x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
ADUCM410BCBZ-RL7IC MCU 32BIT 1MB FLASH 64WLCSP |
348 |
|
Datasheet |
64-UFBGA, WLCSP | ADuCM | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M33 | 32-Bit Single-Core | 160MHz | I2C, SPI, UART/USART | DMA, POR, PWM, WDT | - | 1MB (1M x 8) | FLASH | - | 128K x 8 | 2.85V ~ 3.6V | A/D 16x16b SAR; D/A 12x12b | Internal | -40°C ~ 105°C | - | - | Surface Mount | ||
|
|
DS80C320-QCG+IC MCU 8BIT ROMLESS 44PLCC |
246 |
|
Datasheet |
44-LCC (J-Lead) | 80C | Tube | Active | Not Verified | 8051 | 8-Bit | 25MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | - | ROMless | - | 256 x 8 | 4.5V ~ 5.5V | - | External | 0°C ~ 70°C (TA) | - | - | Surface Mount | ||
|
|
LM3S2965-IQC50-A2IC MCU 32BIT 256KB FLASH 100LQFP |
5,720 |
|
Datasheet |
100-LQFP | Stellaris® ARM® Cortex®-M3S 2000 | Tray | Not For New Designs | Verified | ARM® Cortex®-M3 | 32-Bit Single-Core | 50MHz | CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 56 | 256KB (256K x 8) | FLASH | - | 64K x 8 | 2.25V ~ 2.75V | A/D 4x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
TMS320F2812PGFQIC MCU 32BIT 256KB FLASH 176LQFP |
127 |
|
Datasheet |
176-LQFP | C2000™ C28x Fixed-Point | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 150MHz | CANbus, EBI/EMI, McBSP, SCI, SPI, UART/USART | DMA, POR, PWM, WDT | 56 | 256KB (128K x 16) | FLASH | - | 18K x 16 | 1.81V ~ 2V | A/D 16x12b | Internal | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
|
TMS320F2812PGFSIC MCU 32BIT 256KB FLASH 176LQFP |
110 |
|
Datasheet |
176-LQFP | C2000™ C28x Fixed-Point | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 150MHz | CANbus, EBI/EMI, McBSP, SCI, SPI, UART/USART | DMA, POR, PWM, WDT | 56 | 256KB (128K x 16) | FLASH | - | 18K x 16 | 1.81V ~ 2V | A/D 16x12b | Internal | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
|
C8051F127-GQIC MCU 8BIT 128KB FLASH 64TQFP |
780 |
|
Datasheet |
64-TQFP | C8051F12x | Tray | Not For New Designs | Verified | 8051 | 8-Bit | 50MHz | EBI/EMI, SMBus (2-Wire/I2C), SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | 32 | 128KB (128K x 8) | FLASH | - | 8.25K x 8 | 2.7V ~ 3.6V | A/D 8x8b, 8x10b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
DSP56F805FV80EIC MCU 16BIT 64KB FLASH 144LQFP |
1,079 |
|
Datasheet |
144-LQFP | 56F8xx | Tray | Active | Not Verified | 56800 | 16-Bit | 80MHz | CANbus, EBI/EMI, SCI, SPI | POR, PWM, WDT | 32 | 64KB (32K x 16) | FLASH | - | 2K x 16 | 3V ~ 3.6V | A/D 8x12b | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
C8051F021-GQRIC MCU 8BIT 64KB FLASH 64TQFP |
926 |
|
Datasheet |
64-TQFP | C8051F02x | Tape & Reel (TR) | Not For New Designs | Verified | 8051 | 8-Bit | 25MHz | EBI/EMI, SMBus (2-Wire/I2C), SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | 32 | 64KB (64K x 8) | FLASH | - | 4.25K x 8 | 2.7V ~ 3.6V | A/D 8x8b, 8x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
MC9S12XEP100MAGIC MCU 16BIT 1MB FLASH 144LQFP |
359 |
|
Datasheet |
144-LQFP | HCS12X | Tray | Active | Not Verified | HCS12X | 16-Bit | 50MHz | CANbus, EBI/EMI, I2C, IrDA, SCI, SPI | LVD, POR, PWM, WDT | 119 | 1MB (1M x 8) | FLASH | 4K x 8 | 64K x 8 | 1.72V ~ 5.5V | A/D 24x12b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
TMS320F28335PTPQIC MCU 32BIT 512KB FLSH 176HLQFP |
206 |
|
Datasheet |
176-LQFP Exposed Pad | C2000™ C28x Delfino™ | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 150MHz | CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, UART/USART | DMA, POR, PWM, WDT | 88 | 512KB (256K x 16) | FLASH | - | 34K x 16 | 1.805V ~ 1.995V | A/D 16x12b | Internal | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount |
